| Antwerpen 14 June 2009 |
|
Name |

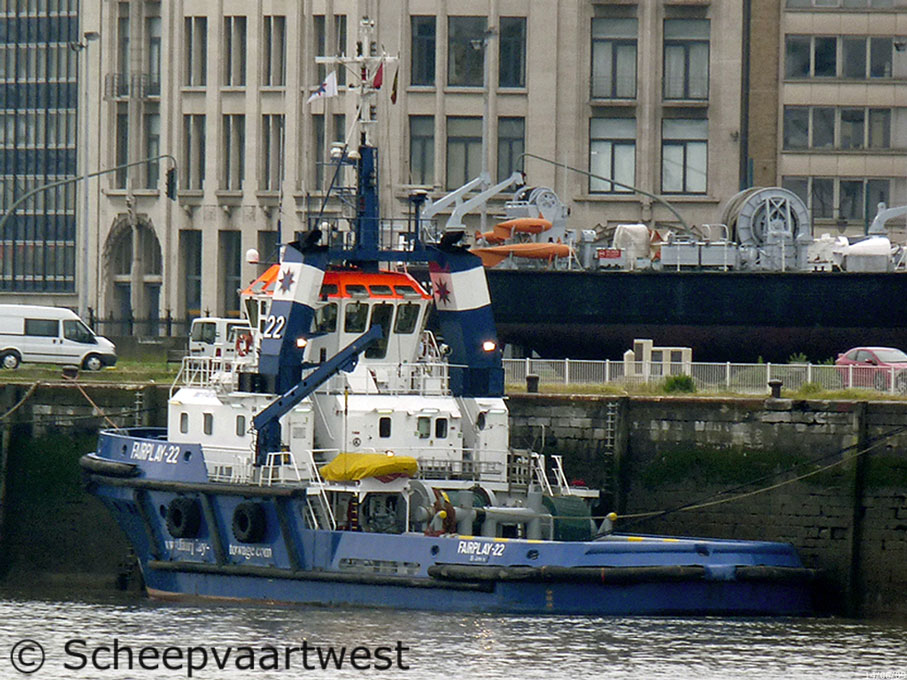

FAIRPLAY-22 |
|
Type |
Stern drive Schottel tug fully equipped for harbour assistance, escorting, terminal operation, coastal towage & salvage |
|
IMO-number |
9148764 |
|
Call sign |
V2FG |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
496 t registered |
|
DWT |
Summer: 317 t |
|
NT |
148 t |
|
Length |
34,75 m overall 32,14 m registered |
|
Breadth |
11,00 moulded 10,80 m registered |
|
Draught |
4,60 m min. 5,00 m max. |
|
Freeboard |
1.116 mm |
|
Depth |
5,70 m moulded |
|
Speed |
13,5 knots |
|
Built |
1998 |
|
Keel laid |
12.12.1996 |
|
Launch date |
26.04.1997 |
|
Date of completion |
04.1998 |
|
Builder |
Construcciones Navales Santodomingo, S.A. |
|
Yard number |
613 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
2x Deutz SBV 8 M 628 – 4 stroke single acting 8 cylinder 240 x 280 mm diesel engine – each 1.646 kW total 4.476 hp / 3.292 kW at 1.000 rpm with nozzle Year of manufacture: 1996 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG |
|
Propellers |
2x Schottel rudder propeller SRP 1212 in Kort nozzles - aft |
|
Electric installations |
1x 380/ 220 V - 260 kVA |
|
Generators |
1x Deutz TBD 616 V 8 diesel generatorset 2x MAN D2866 E diesel generatorsets each 130 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL – 200 kW forward |
|
Bollard pull |
52 t |
|
Ballast capacity |
110 m³ |
|
Bunker capacity |
220 m³ gas oil |
|
Towing winch |
2 x Ulstein Brattvaag SL50 1 T brake load 125 t |
|
Towing hook |
Seebeck 55 tons |
|
Anchor Equipment |
3x Anchors weight each 1.020 kg Chain length: 357,50 m |
|
Manager |
Fairplay Schleppdampfschiffs Reederei Richard Borchard GmbH |
|
Owner |
BBB Schlepp- und Hafendienst GmbH |
