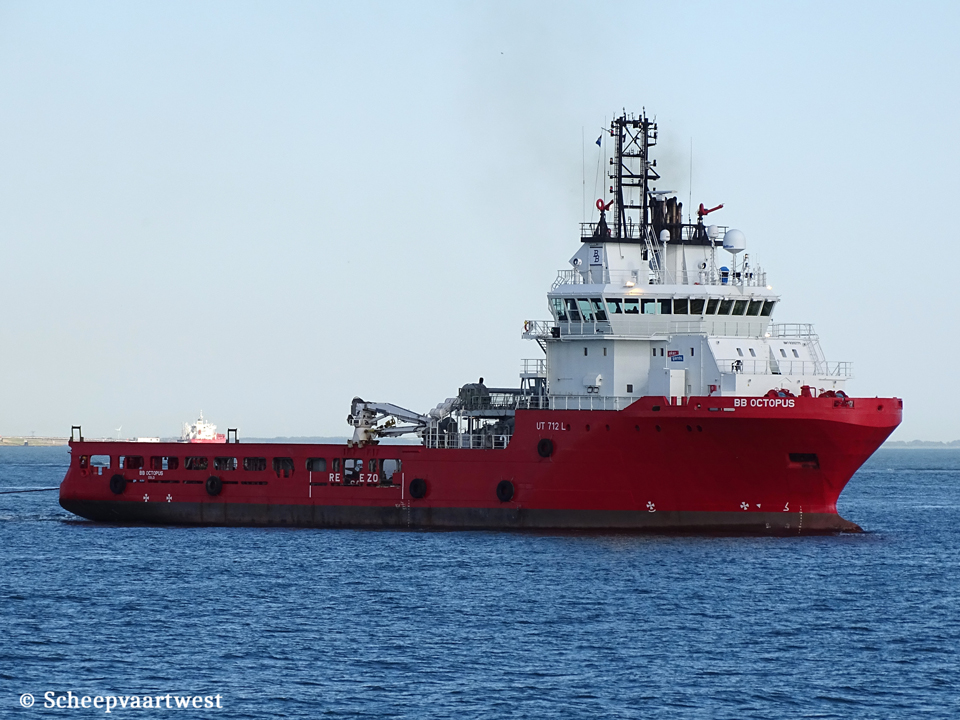

BB Octopus - IMO 9355771

Name

BB OCTOPUS

Previous names

2006 - 11/2019 Olympic Octopus

Type

Anchor Handling / Supply vessel / tug

IMO-number

9355771

Call sign

LFMZ

Flag

Norway

Port of registry

Oslo

GT

3.102 t

DWT

2.694 t

NT

1.047 t

Length

78,30 m overall

68,20 m between perpendiculars

Breadth

17,23 m extreme

Draught

Max: 6,80 m

Operation: 6,30 m

Depth

8,30 m to main deck

Speed

Max: 18,0 knots

Service: 12,0 knots

Built

2006

Keel laid

10/10/2005

Launch date

12/02/2006

Date of completion

20/10/2006

Builder

Vard Group AS Avd Soviknes (Aker Yards AS Sviknes)

Sviknes

Norway

Yard number

147

Hull material

Steel

Main engine

2x Berger B32: 40V12P - 4 stroke 12 cylinder 320 x 400 mm combustion engines each 8.149 bhp

Total: 11.988 kW / 16.298 bhp

Propellers

2x Controllable pitch propeller

Diameter: 4,10 m

Shaft generator

2x Leroy Somer 3.000 kVA

Generators

1x Cummins KTA50-M2 diesel generatorset 1.384 kW

Emergency & harbour gen.

1x Cummins KTA19-M3 diesel generatorset 390 kW

Thrusters

1x Azimuth thruster 883 kW, forward

1x Bow thruster 883 kW

1x Stern thruster: 883 kW

2x Stern thrusters each 800 kW

Total: 17.520 bhp

Bollard pull

180 t

Mooring equipment

2x Windlass 25 ton up to 46 m per min

2x Anchors each 3.060 kg - Cables: 46 mm

2x Tugger winch each24 ton

2x Capstans each 15 ton

Anchor handling Equipment

• Stern roller: 6,00 x 3,50 m - SWL 550 ton

• Chain lockers: 4x 100 m³

• Winch double drum: 400 ton max pull/ 550 ton brake

• Towing drum: 4.930 m x 76 mm capacity with 4.178 m x 83 mm wire

• AH drums: 4.930 m x 80 mm capacity with 4.178 m x 83 mm wire

• Secondary winch:138 ton pull at first layer, storage capacity 1.300 m rope 203 mm / 6.000 m of 84 mm wire

• Cable lifters: 2x 84 mm cable lifters fitted. 2x 76 mm, 1x 90 mm, 1x 114 mm

• Shark Jaws: 2x 800 ton SWL

• Tow pins: 4x RR 250 ton SWL, Ø 480 x 1.300 mm

• Pop-up pins: 2x 90 ton SWL

• Centering Device:4x CD 1000, 14 ton SWL

• Pennant winder: RR 8 T on first layer

• J-Chaser: 150 ton SWL

• Grapnel: 250 ton SWL

• Smitbracket bow: 500 ton SWL

Deck cargo

900 t

Deck area

35,40 x 14,40 m

510 m²

Tank capacities

Fresh water: 1.080 m³

Drill water: 700 m³

Liquid mud: 534 m³

Brine: 411 m³

Freshwater fire mist tank approx.: 45 m³

Dry bulk cargo tanks (cement) approx.: 230 m³

Fuel oil: 1064 m³

ORO: 1.014 m³

Base Oil/Glycol: 530 m³

Ballast: 1.211,2 m³

Anchor equipment

Length: 495,00 m

Diameter: 46 mm

Lifting equipment

2x Deck cranes - SWL 3,0 t each

Cargo gear

Air-conditioned accommodation for 24 persons including vessel crew

Navigation equipment

• S Band Radar: 1x Furuno S-Band 10cm ARPA

• X-Band Radar: 1x Furuno 3cm

• Autopilot Anschutz: Pilotstar

• GPS: 2 x Kongsberg DPS 700

• GPS: Furuno GP-90

• Echo sounder: 1x Furuno FE-700

• Echo sounder: 1x FurunoFCV-1200L

• Gyro Compass: 3x Anschutz Standard22

• AIS: Furuno FA-150

• Doppler log: Furuno DS-80

• Radio Station A3: Furuno MF/H

• Inmarsat C: Furuno Felcom 15

• Sat com: Sailor Fleet 77

• Sat com: Ku band Internet and phone

ISM & commercial manager

Buksér og Berging AS

Vollsveien 4

1366 Lysaker

Norway

Registered owner

BB Octopus AS

c/o NRP Procurator As Haakon Viis Gate 1

0161 Oslo

Norway

Latest data adjustment

07 October 2023
