Ievoli Shuttle - IMO 9564437

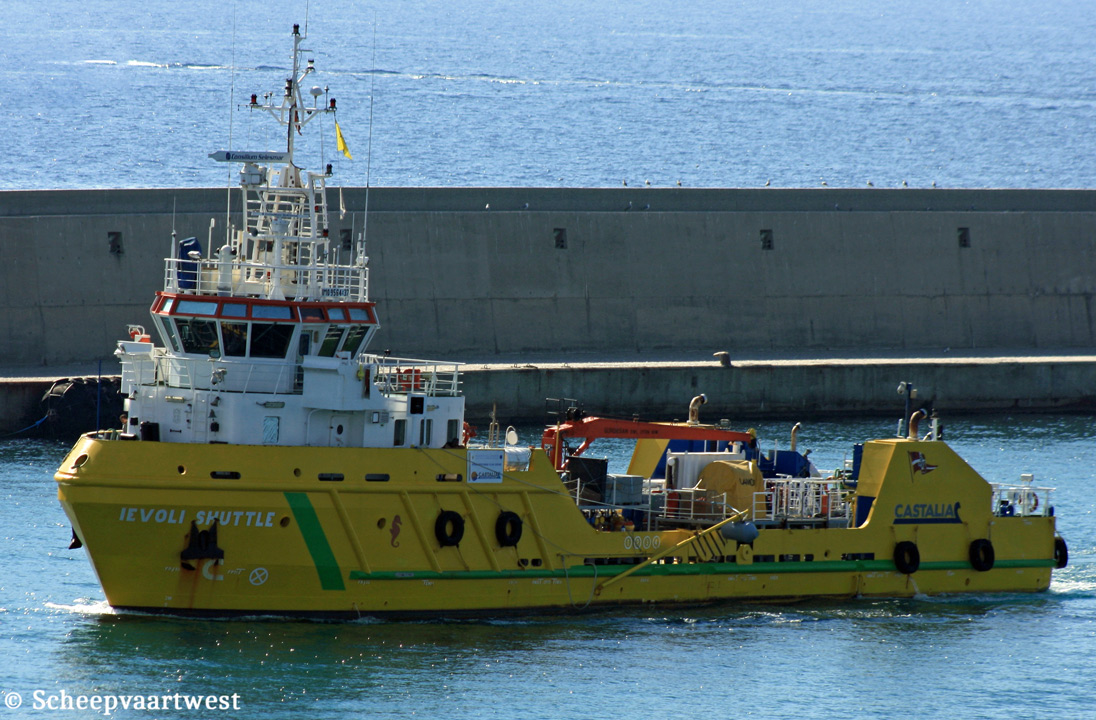

Civitavecchia, Italy 27 August 2016

Name

IEVOLI SHUTTLE

Type

Tug - Offshore platform supply vessel - Anti pollution vessel

IMO-number

9564437

Call sign

IIWC2

Flag

Italy

Port of registry

Napoli

Previous flags

2009 - 2018 Kazakhstan, Aktau - Call sign: UQT

GT

532 t

DWT

Summer: 350 t

NT

159 t

Lightship

612 t

Length

45,85 m overall

42,85 m between perpendiculars

Breadth

9,97 m moulded

Draught

Summer: 2,80 m

Freeboard

1.210 mm

Depth

4,00 m moulded

Speed

Max: 11,0 knots

Built

2009

Keel laid

27/05/2009

Launch date

2009

Date of completion

29/10/2009

Builder

Selah Makine Ve Gemicilik Endustri Ticaret A.S.

Tuzla

Turkey

Yard number

59

Hull material

Steel

Hull type

Single hull - Double buttom

Main engine

2x Caterpillar C32 Alert - combustion engine each 559 kW total 1.118 kW at 1.800 rpm

Propellers

2x 4 blades fix pitch propellers

Generators

2x Scania main diesel generatorsets each 150 kW

Emergency batteries

15 kW

Deck equipment

• Capstan / Windlass: 2x 3,0 ton (stern) + 2x 3,0 ton windlass / capstan

• Crane: 1x 2,0 ton at 10,00 m

• F.R.B.: 1x 6 persons, Length: 4,45 m, Engine: 25 Hp

• Life Rafts: 2x 10 persons RFD

Service compressor

2x ATLAS Copco - 8,5 bar, 5,0 kW, 40m³/h

Deck cargo area

2x Containers 20”

Deck cargo strength

2,0 t/m²

Other machineries

• 2x Reverse gearboxes, each with clutch and stand-by hydraulic pump

• 2x Fresh water circulation pump, one stand-by

• 1x General service bottle, 300 l/8,0 bar

• 1x Bilge pump, as per rules and one LP GS pump

• 1x Fire pump, (45,0 m³/h , 6,0 bars)

• 1x General Service pump (identical to fire pump) of HP type

• 1x Ballast pump, 100 m³/h

• 1x Gas-oil purifier with pump

• 1x Gas-oil transfer pump

• 1x Oil water separator

Cargo pumps

Gas oil: 80 m³/h

Fresh water: 60 m³/h

Sewage: 55 m³/h

Mud :35 m³/h

Tank capacities

• Fresh water: 100 m³

• Sewage mud: 88 m³

• Gas oil: 178 m³

• Sewage: 160 m³

• Ballast : 344 m3

• Fresh water (for ship): 11 m³

• Gas oil (for ship): 32 m³

• Dirty Oil: 3,60 m3

• Sludge: 2,70 m³

• Bilge: 3,60 m³

• Oily bilge Tank: 5,21 m³

• Grey water: 4,10 m³

Accommodation

Cabins: 2x 1 bed + 4x 2 beds

Mess room

Galley

Laundry

Hospital

Navigation equipment

• Radar X band: Consilium Selux ST-250, 19 1” TFT - (ARPA function)

• Radar S band: Consilium Selux ST-340, 12ft (ARPA function)

• GPS: SAAB R4 DGPS

• Echo-sounder: SKIPPER - GDS 101

• GMDSS: Inmarsat C - Sailor 150W SSB/DSC (Area A1+A2+A3)

• SSAS: 403000SSA – 00500 SAILOR mini-C

• SART: 2 x Sart Sailor Sart II

• Speed log: Consilium SAL R1a

• Wind Speed/Direction: DEIF

• Gyro pilot: Sperrynavipilot 4000

• Navtex: ICS Navtex NAV 7

• Gyro compass: Sperry Navigat X MK1 (type: GTML)

• AIS: Saab R4 AIS

• LRIT: (included in GMDSS)

• Magnetic Compass: Sperry Navipol 1

• Radio VHF: 2 x Sailor RT5022 DSC

• Radio VHF Portable: 3 x SAILOR 40352B

• VHF Portable (Ship use): 2 x SAILOR sp3530 - Intrinsically safe

• Inmarsat C: 2 x Sailor TT3000E

• EPIRB: SailoR TT4062-D (406Mhz)

• Weather Chart Plotter: Furuno

• Satelite Phone: Inmarsat C

• Satelite Fax: Inmarsat C

• P.C.: Fitted (Printer, Scanner, Copies machines)

Technical manager

Marnavi Offshore Srl

Registered owner

Marnavi Spa.

Via S. Brigida, 39

80133 Napoli

Italy

Latest data adjustment

25 January 2021
