Malaga, Spain 12 March 2012 |
|
Name |

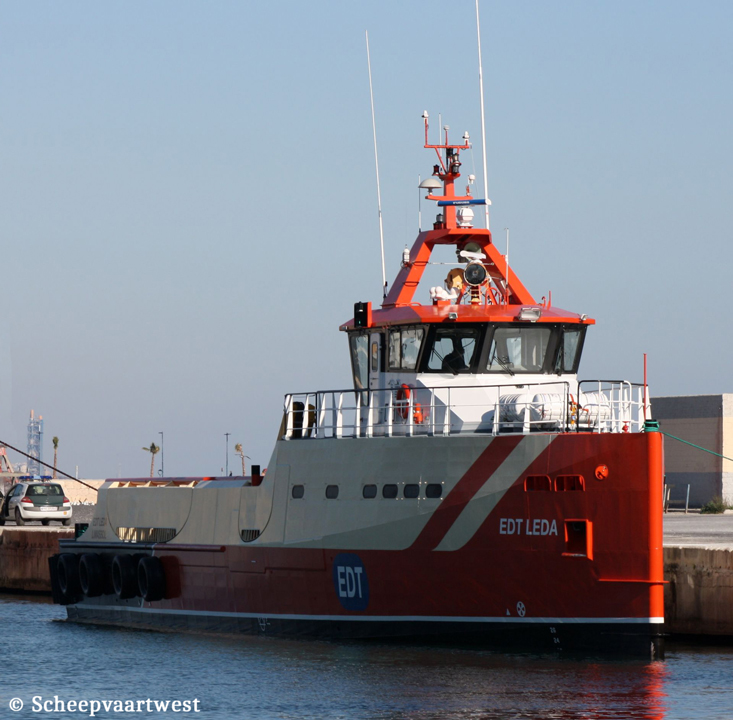

EDT LEDA |
|
Type |
Offshore supply vessel - High speed crew vessel |
|
IMO-number |
9643051 |
|
Call sign |
5BNH3 |
|
Flag |
Cyprus |
|
GT |
174 t |
|
DWT |
Summer: 83,2 t |
|
NT |
52 t |
|
Reefer sockets |
2 on aft deck |
|
Length |
35,92 m overall |
|
Breadth |
7,35 m |
|
Draught |
2,60 m, forward 2,20 m, aft |
|
Freeboard |
1.260 mm |
|
Depth |
3,30 m to main deck |
|
Speed |
Max: 26,0 knots Economic: 15,0 knots |
|
Built |
2012 |
|
Builder |
Damen Shipyards B.V Gorinchem The Netherlands |
|
Yard number |
544903 |
|
Hull material |
Aluminium |
|
Main engine |
3x Caterpillar C32TTA - combustion engines power each 1.044 kW total 3.132 kW at 2.300 rpm |
|
Generators |
1x Caterpillar C4.4 TA diesel generatorsets each 69 kW / 86 kVA |
|
Bow thruster |
1x 75 kW Diameter: 600 mm |
|
Deck length |
19,30 m |
|
Cargo capacity |
40 t |
|
Deck equipment |
Deck load: 2,05 t/m² Deck area: 105 m² |
|
Tank capacities |
MGO: 34,8 m³ Fresh water: 27,3 m³ Ballast water: 10,1 m³ |
|
Lifting equipment |
1x Hydraulically operated HLM-10-1SD crane - SWL 1.350 kg @ 6,50 m |
|
Accommodation |
Crew accommodation: 6 Bunks Offshore personnel: 50 offshore personnel on “day-passenger” basis |
|
Navigation |
Radar: 2x Furuno FAR-2117 Gyro compass: JRC NWZ-4701 Echo sounder: Alphatron, Alphadepth Magnetic compass: Ritchie, Navigator HB-71 Chart plotter: Integrated with radar system Autopilot: Alphatron, Seapilot MFC GPS compass: JRC, JRL-20 |
|
Communication |
Primary: IOP—Bandwidth 128 mbps GMDSS: As Per GMDSS A1, A2 and A3 |
|
Manager |
EDT Shipmanagement Ltd. 124 Ayias Paraskevis Street Yermasoyia, 4044 Limassol Cyprus |
|
Registered owner |
Kardemex Trading Ltd. c/o EDT Shipmanagement Ltd, 124 Agias Paraskevis Street Germasogeia, 4044 Limassol Cyprus |
|
Latest data adjustment |
17 January 2021 |
