Stavanger, Norway 21 August 2017 |
|
Name |

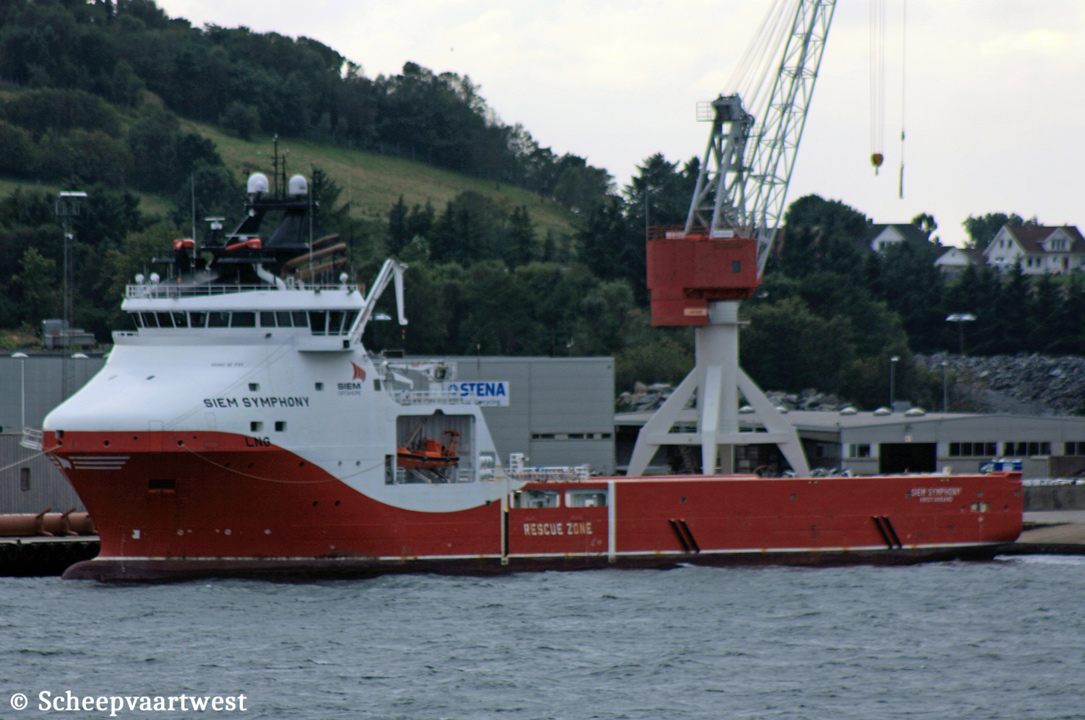

SIEM SYMPHONY |
|
Type |
Platform offshore supply vessel - Fire fighting - Oil recovery type VS 4411 DF |
|
IMO-number |
9690066 |
|
Call sign |
LCKH |
|
Flag |
Norway |
|
Port of registry |
Kristiansand |
|
GT |
4.806 t |
|
DWT |
Summer: 5.500 t |
|
NT |
1.452 t |
|
Length |
89,20 m overall 80,40 m between perpendiculars |
|
Breadth |
19,00 m |
|
Draught |
Summer: 7,39 m |
|
Depth |
9,00 m |
|
Speed |
Max: 15,4 knots |
|
Built |
2014 |
|
Keel laid |
28/08/2013 |
|
Launch date |
14/03/2014 |
|
Date of completion |
19/11/2014 |
|
Builder casco |
Nauta Shiprepair Yard S.A. |
|
Builder completion |
Hellesoy Verft AS Løfallstrand Norway |
|
Yard number |
152 |
|
Hull material |
Steel |
|
Main engine |
Dual fuel MDO and LNG: 2x Wärtsilä 6L34DF - 4 stroke single acting 6 cylinder 340 x 400 mm combustion engines each 2.610 kW / 3.549 hp at 720 rpm Builder: Wärtsilä Finland Oy 2x Wärtsilä 8L20DF - 4 stroke single acting 8 cylinder 200 x 280 combustion engines each 1.480 kW / 2.012 hp at 1.200 rpm |
|
Propulsion thrusters |
2x Steerprop SP 35 CRP |
|
Boilers |
1x Auxiliary boiler, electric heated |
|
Generators |
2x Cummins generators each 2.510 kW |
|
Emergency generator |
1x Scania DC12 diesel generatorset 270 kW |
|
Bow thruster |
1x Brunvoll FU 74 LTC 2000 - 1.100 kW 1x AR 63LNC 1650 azimuth thruster - 880 kW |
|
Cargo deck area |
980 m² |
|
Tank capacities |
Diesel oil: 1.129 m³ LNG: 230 m³ Fresh water: 1.00 8m³ Ballast: 1.977,3 m³ |
|
Anchor equipment |
Length: 522,50 m Diameter: 48 mm |
|
Accommodation |
25 |
|
Manager |
Siem Offshore AS Nodeviga 14 4610 Kristiansand S Norway |
|
Owner |
Siem Offshore Rederi AS Nodeviga 14 4610 Kristiansand S Norway |
|
Latest data adjustment |
28 December 2020 |
