Malaga, Spain 09 September 2020 |
|
Name |

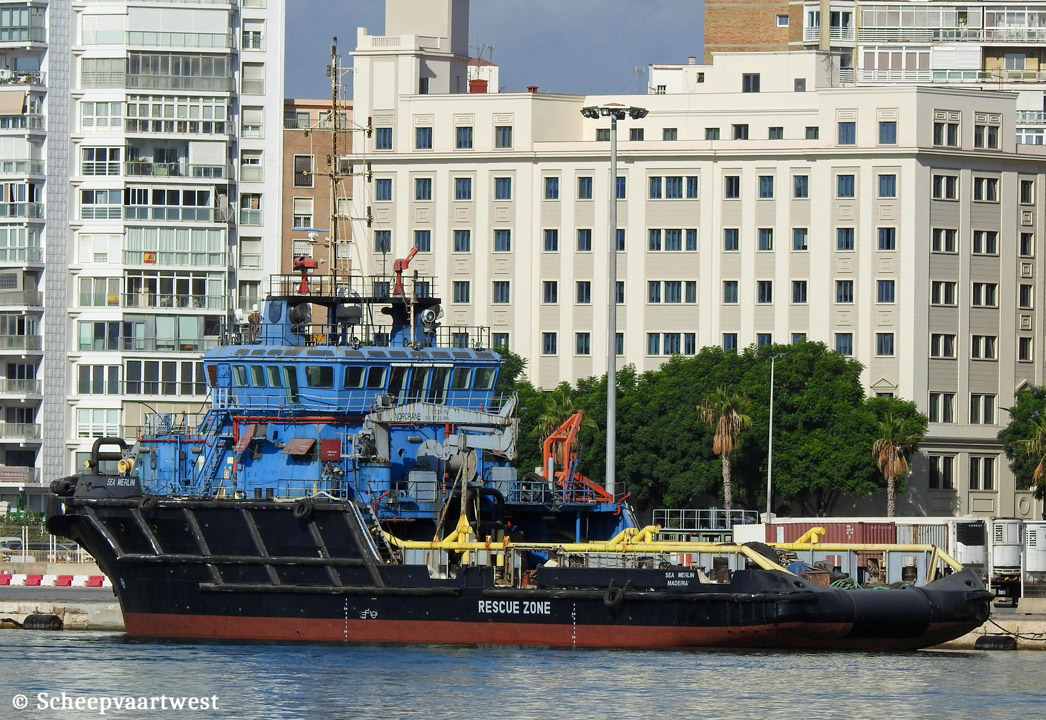

SEA MERLIN |
|
Previous names |
Lamnalco Merlin |
|
Type |
Offshore tug - Supply vessel - Fire fighting ship |
|
IMO-number |
9383168 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2007 - 2015 Cyprus, Limassol - Call sing: C4PV2 2015 - 2020 Nigeria, Laos - Call sign: 5NZW2 |
|
GT |
1.290 t |
|
DWT |
Summer: 941 t |
|
NT |
386 t |
|
Length |
53,40 m overall 48,64 m between perpendiculars |
|
Breadth |
13,80 m |
|
Draught |
Max: 4,80 m |
|
Freeboard |
710 mm |
|
Depth |
6,00 m |
|
Speed |
14,2 knots |
|
Built |
2007 |
|
Date of completion |
19/02/2007 |
|
Builder |
ABG Shipyard Ltd. Surat India |
|
Yard number |
255 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
2x Wärtsilä - 6 cylinder combustion engines total 5.440 kW / 7.392 hp at 1.000 rpm Builder: Wärtsilä Italia S.P.A. |
|
Propellers |
2x Screw propeller controllable pitch |
|
Generators |
3x Diesel generatorsets each 438 kVA - 350 kW 1x Diesel generatorset 813 kVA - 650 kW |
|
Tank capacities |
Fuel: 748 t |
|
Crew size |
19 |
|
Latest data adjustment |
15 December 2020 |
