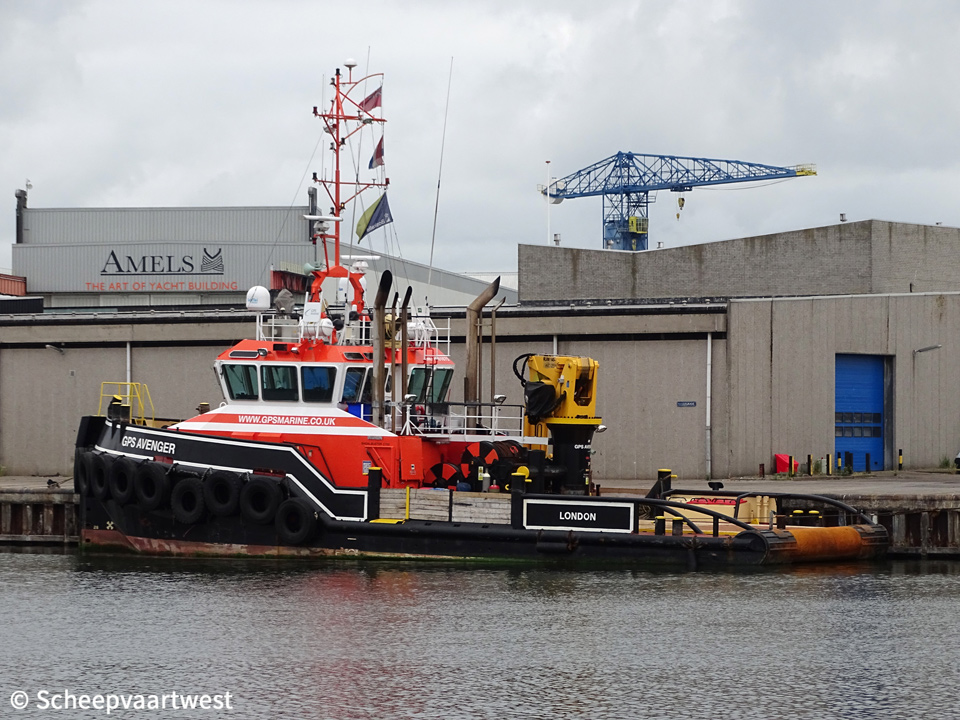

GPS Avenger 01

Vlissingen 15 July 2019



Name

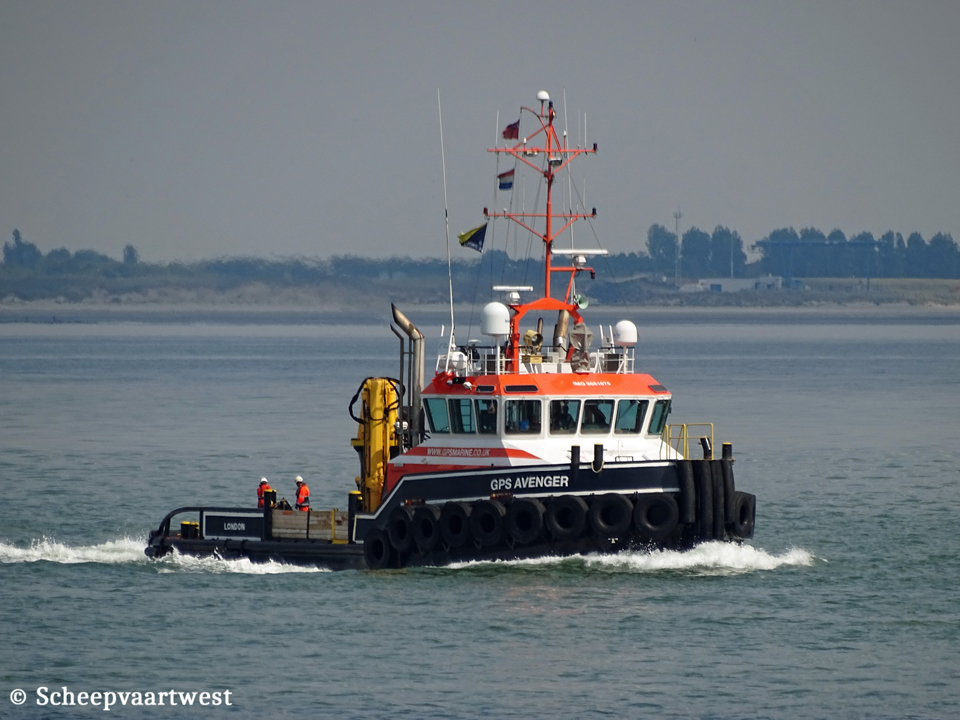

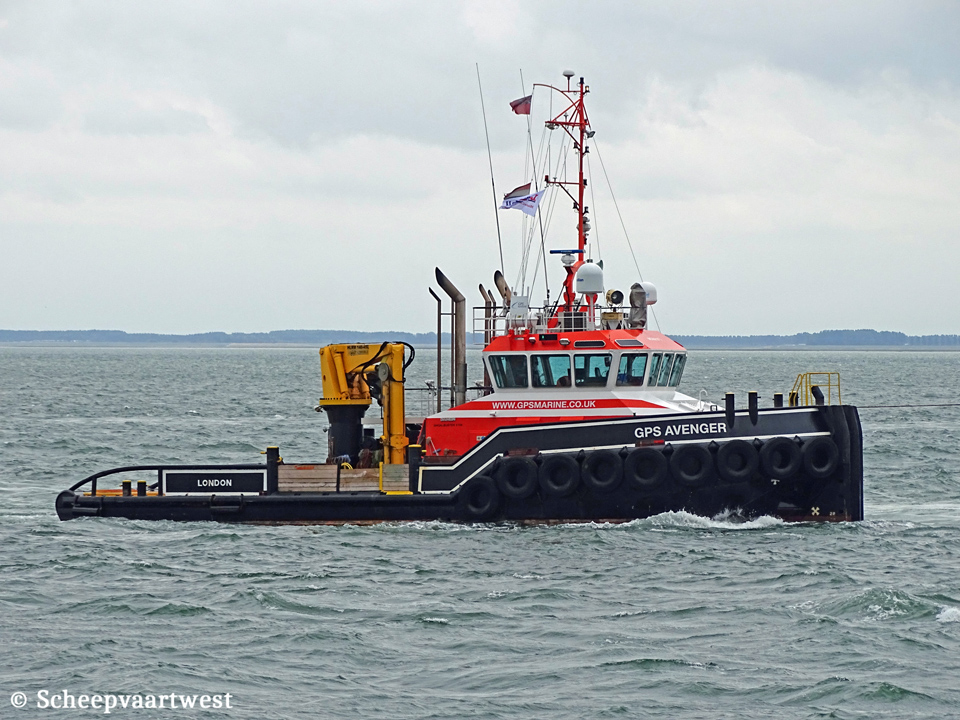

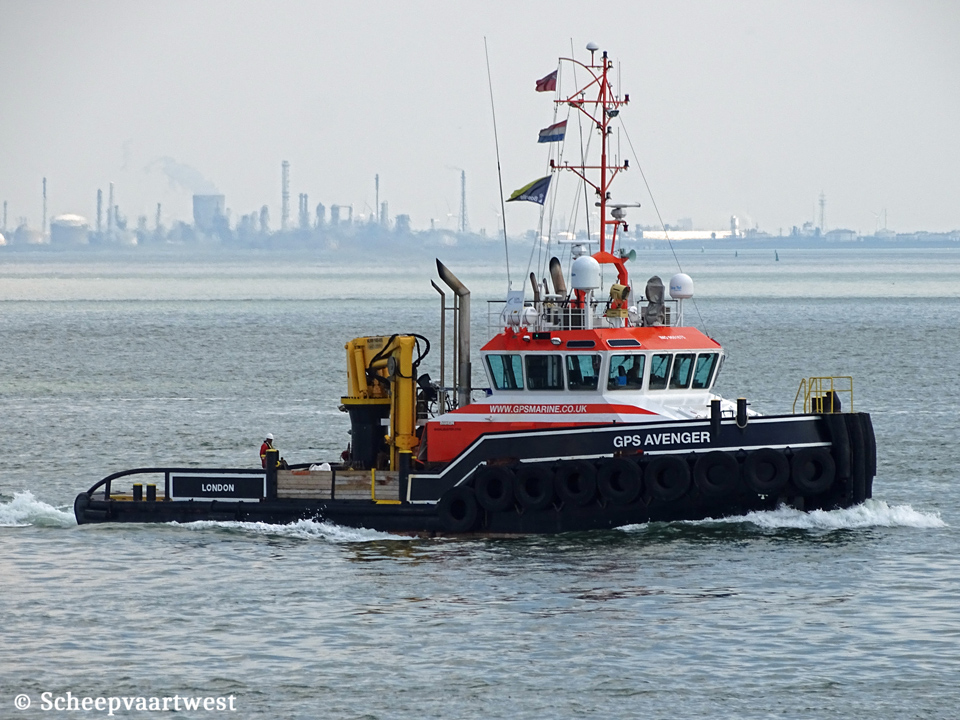

GPS AVENGER

Type

Anchor handling tug / supply vessel (AHTS)

2709 Shoalbuster

IMO-number

9681675

Call sign

2GVV2

Flag

United Kingdom

Port of registry

London

Previous flags

04/2013 - 08/2013 The Netherlands - call sign: PCVL

GT

221 t

NT

66 t

Length

27,02 m overall

23,82 m between perpendiculars

Breadth

9,10 m extreme

Draught

2,63 m aft

3,60 m at sides

Speed

11,0 knots

Built

2013

Date of completion

14/05/2013

Builder casco

Damen Shipyards Kozle Spolka Z Ograniczona Odpowiedzialnoscia

Kedzierzyn-Kozle

Poland

Builder completion

Damen Shipyards Hardinxveld

Hardinxveld-Giessendam

The Netherlands

Yard number

571686

Hull material

Steel

Watertight compartments

4

Continuous decks

1

Main engine

2x Caterpillar 3512C- 4 stroke 12 cylinder 170 x 190 mm combustion engines total 2.236 kW / 3.038 hp at 1.600 rpm

Builder: Caterpillar, Mossville - USA

Gearbox

2x Reintjes WAF 665 - Reduction 5.95:1

Propellers

2x Promarin fixed pitch propeller - aft at 259 rpm in nozzles Optima

Diameter: 2.100 mm

Generators

2x Main diesel generatorsets each 94 kVA - 75 kW - 102 hp

400/230 Volt 50 Hz

Bow thruster

1x Hydraulically Driven 147 kW / 200 hp

Bollard pull

38,8 t

Deck equipment

  • Anchor: 2x 275 kg Pool (HPP)

  • Anchor chain: 19 mm stud-link, 2x 192,50 m

  • Anchor winch: DMT, 200-h19 hydraulic driven

  • Anchor handling/ towing winch: DMT, Waterfall Execution

  • Capacity towing part: 50 t at 4,00 m/min pull, slack 0-23/min, holding power 120 t wire cap 850 m 40 mm

  • Capacity anchor handling part: 100 t at 2,50 m/min pull, slack 0- 14,5/min holding power 120 t, wires cap. 650 m 40 mm

  • Towing pins: WK hydraulics double pin type with chain stop

  • Tugger winch: Dromec HPV-12000, 12 t (m) at 4,5 m/min

  • Stern Roller: SWL 50 t at a 45 degree angle downwards

Survey equipment

Moon pool: Forward peak

Digital plough monitoring system: Tower Software Ltd, real time digital progress system and log

Tank capacities

Fuel oil: 125,1 m³

Fresh water: 30 m³

Lub oil: 3 m³

Hydraulic oil: 1,5 m³

Gear oil: 1,5 m³

Dirty oil: 4,3 m³

Bilge water: 4,3 m³

Sewage: 2,2 m³

Sludge: 1,4 m³

Lifting equipment

1x Deck crane Heila HLRM 140-4SL - 5,3 t at 18,03 m

Accommodation

7 persons

3x Single cabins

2x Double cabins

Gallery/ mess & sanitary facilities

Communications & bridge equipment

  • Searchlights: 2x Pesch 200 Watt

  • Magnetic compass: 1x Cassens & Path Reflecta 1

  • Gyro compass: 1x Anshuetz Compact 22

  • Radar system: 1x Furuno FAR-2117

  • Radar transponder: 1x Jotron, Type Tronsart

  • GPS navigation: 1x 1 Furuno GP150D

  • Auto pilot: 1x Radio Zeeland Sea Pilot 75

  • AIS: 1x Furuno FA 150

  • Echo sounder: 1x Furuno FE-700

  • VHF/DSC: 2x Thrane & Thrane Sailor 6222 DSC Class A

  • Speed log: 1x Furuno, Type DS-80

  • Watch alarm: Marble 421

  • Handheld VHF: 2x Jotron, TRON TR20

  • SSB/DSC: 1x Thrane & Thrane 6310

  • Navtex: 1x Furuno NX - 700

  • Mini-C Systems GMDSS: 2x Thrane & Thrane, Type TT300E

  • EPIRB: 1x Jotron, Type TRON-40S

  • Chart plotter: Transas, Navigator Pro

  • SART: 1x Tron sart

  • Intercom: Sigma 700 (8 stations)

  • Immarsat-C: Thrane & Thrane TT 300E

  • GSM Telephone: Siemens MC55i

  • Fleet Broadband: Thrane & Thrane FBB 500

  • CCTV Camera: 2x Engine room, 2x Deck

Manager

GPS Marine Contractors Ltd.

GPS Marine House

Upnor Road, Lower Upnor

Rochester, KentME2 4UY

United Kingdom

Registered owner

GPS Avenger Ltd.

Latest data adjustment

29 June 2020
