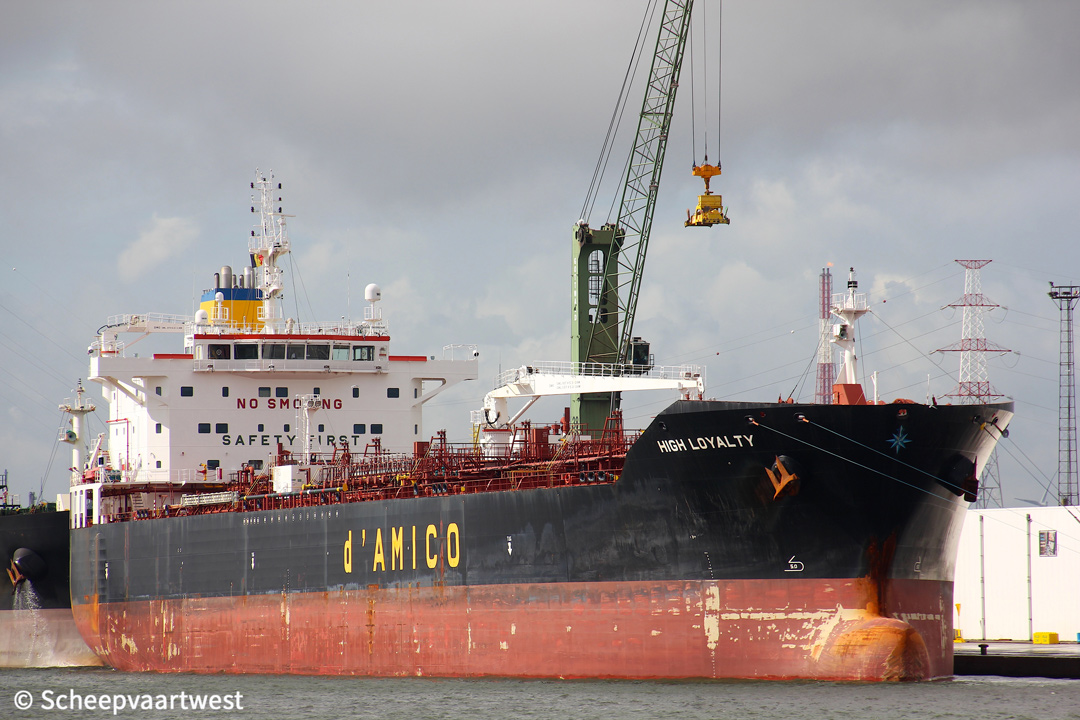

High Loyalty 01

Antwerpen 28 September 2019

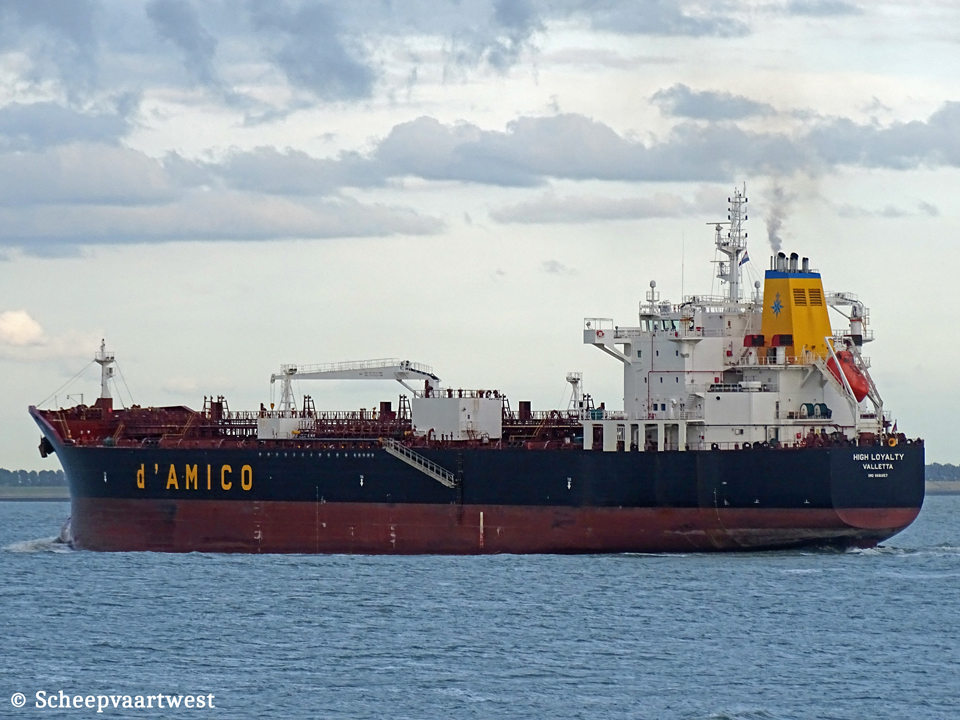

High Loyalty IMO 9681857 02
Westerschelde 29/07/16


Name

HIGH LOYALTY

Type

Oil and chemical carrier

IMO-number

9681857

Call sign

5LKZ6

Flag

Liberia

Port of registry

Monrovia

Previous flags

2015 - 2023 Malta, Valletta - call sign: 9HA3478

GT

29.935 t

DWT

Summer: 49.990 t

NT

13.634 t

Displacement

60.747 t

Length

182,90 m overall

174,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

Max: 12,58 m

Freeboard

6.071 mm

Depth

19,40 m

Speed

Max: 15,5 knots

Built

2015

Keel laid

23/06/2014

Delivery date

06/02/2015

Builder

Hyundai Mipo Dockyard Company Ltd.

100 Bangeojinsunhwan-Doro Dong-Gu

Ulsan

South Korea

Yard number

2388

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x HHI/MAN-B&W 6G50ME-B9.3 - 2 stoke 6 cylinder 500 x 2.214 mm combustion engine 7.180 kW at 87,1 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler - 9,0 bar

1x Composite boiler - 9,0 bar

Generators

3x 6 cylinder 210 x 320 mm diesel engines each 850 kW at 720 rpm coupled with generators each 800 kW

Number of cargo tanks

14

Cargo tank capacity

54.646,50 m³

Tank capacities

Lub oil: 131,10 m³

Hydraulic oil: 17,90 m³

Fresh water: 276,40 m³

Diesel oil: 263,60 m³

Ballast: 22/443,60 m³

Fuel oil: 1.445,90 m³

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose handling crane - SWL 10,0 t

1x Provision crane port - 2,0 t

1x Provision Crane Stbd - SWL 4,0 t

Crew

28

Manager

D'Amico Tankers D.A.C.

Operator

D'Amico Societa Di Navigazione

2 Queen Anne’s Gate Buildings Dartmouth Street London SW 1H 9BP

United Kingdom

Registered owner

Sasano Kaiun Co., Ltd. / TSK Maritime S.A.

Latest data adjustment

21 May 2023
