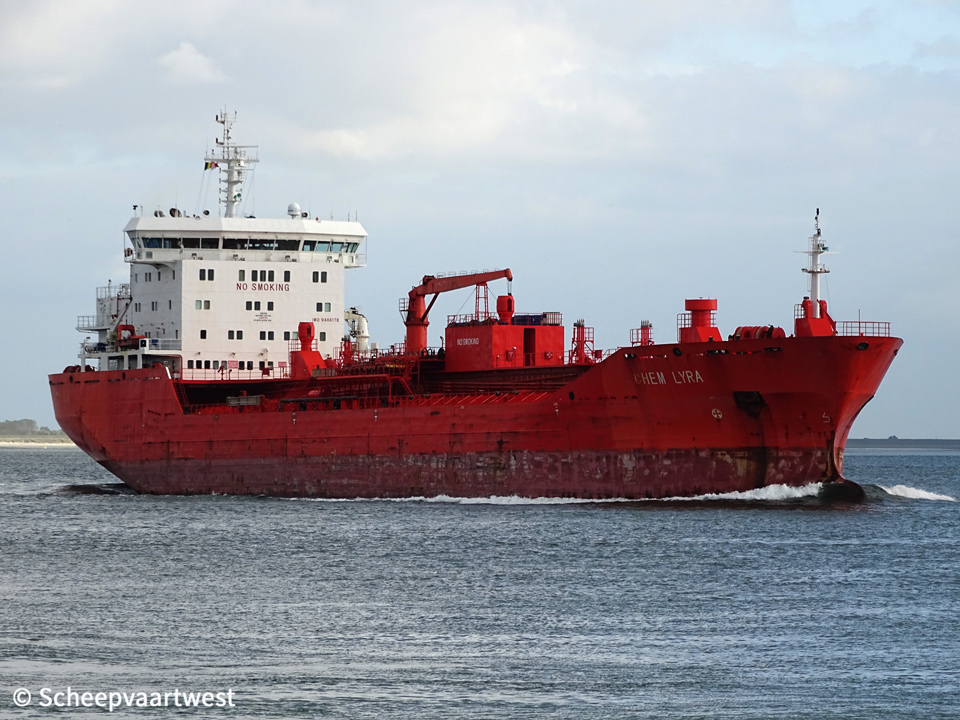

Chem Lyra 01

Westerschelde 18 October 2018

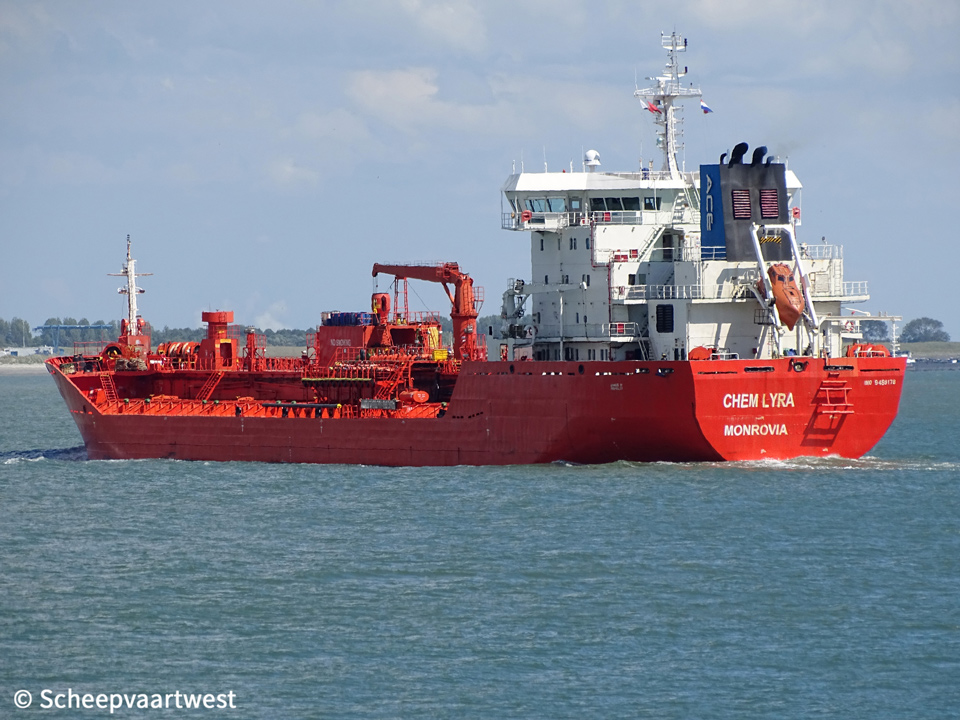

Chem Lyra 02
Westerschelde 11/07/20


Name

CHEM LYRA

Type

Chemical & oil product tanker

IMO-number

9486178

Call sign

D5LF4

Flag

Liberia

Port of registry

Monrovia

Previous flags

2009 - 2017 Marshall Islands, Majuro - Call sign: V7RK3

GT

11.939 t registered

DWT

Summer: 17.055 t

NT

5.180 t registered

Length

144,22 m overall

Breadth

23,00 m moulded

Draught

Summer: 8,90 m

Moulded L x B x D

134,73 x 23,00 x 12,40 m

Registered L x B x D

134,73 x 23,00 x 12,40 m

Freeboard

3.512 mm

Depth

12,40 m moulded

Speed

Service: 13,0 knots

max: 14,0 knots

Built

2009

Keel laid

18/01/2018

Launch date

16/04/2008

Date of completion

16/03/2009

Builder

Ningbo Xinle Shipbuilding Co., Ltd.

Ningbo

China

Yard number

XL-110

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN-B&W 7S35MC - 2 stroke single acting 7 cylinder 350 x 1.400 mm combustion engine Mcr 4.900 kW / 6.662 hp at 173,0 rpm

Manufacturer: STX Engine Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Propellers

1x Fixed pitch propeller - aft at 173,0 rpm

Boilers

1x Auxiliary vertical boiler - 1,32 Mpa

Evaporation :2,60 t/h

1x Auxiliary vertical boiler - 1,32 Mpa

Evaporation :2,20 t/h

Manufacturer: Aalborg Industries Pte. Ltd.

Generators

3x Wärtsilä 4L20 - 4 stroke 200 x 280 mm diesel engine each 700 kW coupled with generators each 640 kW

Bow thruster

1x Tunnel thruster 690 kW / 938 bhp, forward

Number of cargo tanks

12

Cargo tank capacity 98%

Liquid: 18.321 m³

Slop tank capacity 98%

567 m³

Pumps

12x Cargo pumps each 335 m³/h

Tank capacities

Fuel oil: 604 m³

Fresh water: 442 m³

Crew size

19

Manager

Ace Tankers cv

Tower D, Level 7, Strawinskylaan 1979

1077 XX Amsterdam

The Netherlands

Operator

ASM - Ace Ships Management BV

Amsterdam

The Netherlands

Owner

Chem Lyra SA

Liberia

Latest data adjustment

07 March 2020
