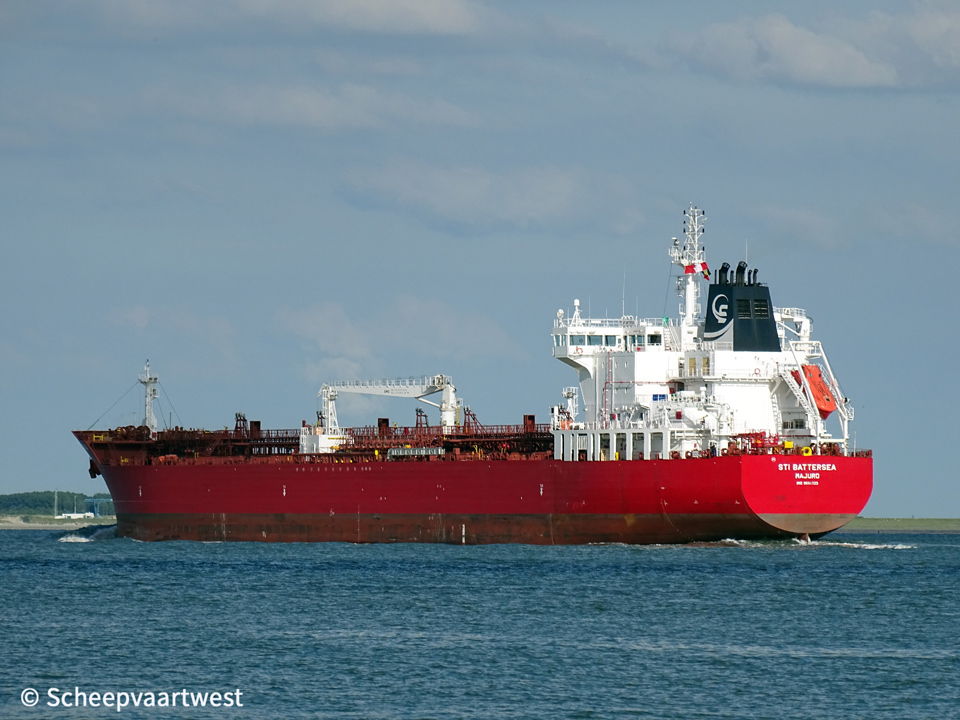

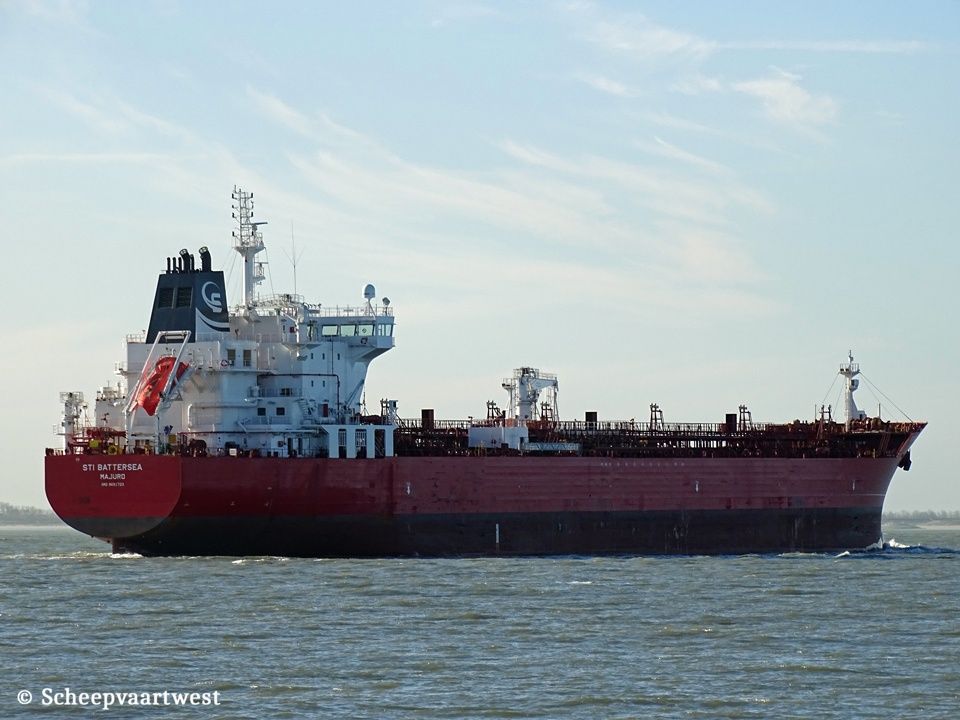

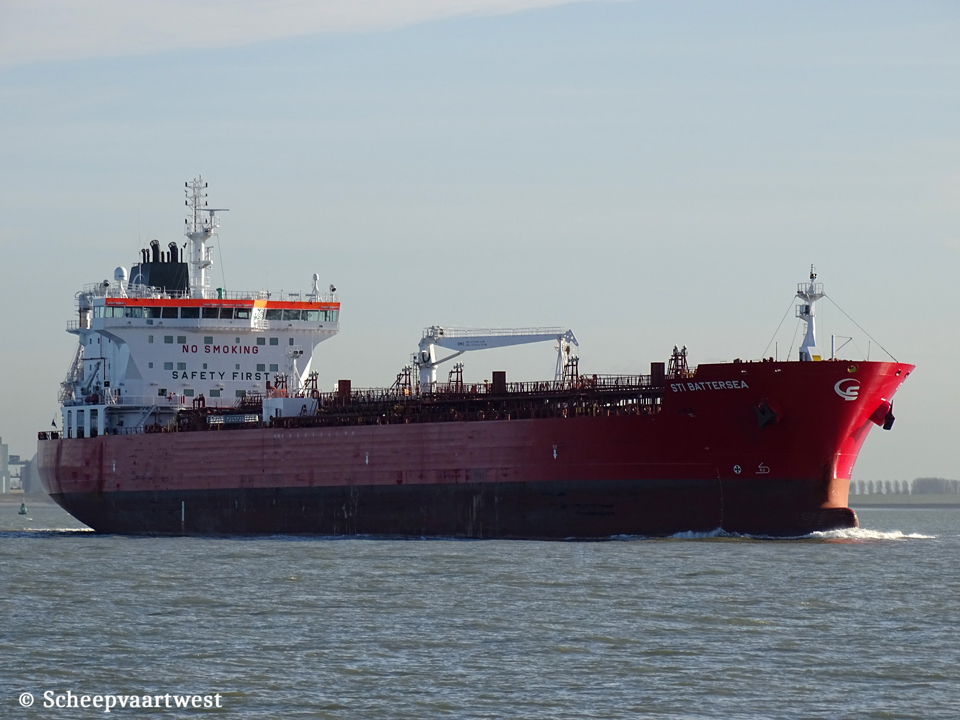

STI Battersea - IMO 9691723

Westerschelde 28 January 2016

Name

STI BATTERSEA

Type

Tanker for oil and chemicals - Handymax

IMO-number

9691723

Call sign

V7DN2

Flag

Marshall Islands

Port of registry

Majuro

GT

24.162 t

DWT

Summer: 38.734 t

NT

10.458 t

Length

184,00 m overall

176,00 m between perpendiculars

Breadth

27,44 m extreme

Draught

Max: 11,94 m

Keel to mast end

46,58 m

Freeboard

Summer: 5.714 mm

Depth

17,60 m moulded

Speed

14,5 knots

Built

2014

Keel laid

26/11/2013

Launch date

24/06/2014

Date of completion

24/10/2014

Builder

Hyundai Mipo Dockyard Co., Ltd.

Ulsan

South Korea

Yard number

2464

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x HHI/MAN-B&W 6S50ME-B9.3 - 2 stroke 6 cylinder 500 x 2.214 mm combustion engine 8.502 kW / 11.559 hp at 117,0 rpm

Manufacturer: Hyundai Engine & Machinery Co., Ltd.(B&W), Ulsan - South Korea

Propellers

1x Fixed pitch mono-block propeller

Boilers

1x Auxiliary boiler, composite Aalborg OC

1x Auxiliary boiler, oil/gas fired

Manufacturer: Alfa Laval Aalborg A/S

Generators

3x Hyundai 6H21/32 main diesel generatorsets each 1.080 kW

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Emergency generator

1x Doosan AD/L 086 diesel generatorset

Manufacturer: Doosan Infracore Co., Ltd.

Bow thruster

1x Kawasaki KT-105B3F bow thruster 1.070 kW

Number of cargo tanks

12 + 2 slop tanks

Cargo tank capacity

Liquid: 41.600 m³

Number of pumps

12x Cargo pumps each 500 m³/h

Tank capacities

Ballast: 19.390,7 m³

Anchor equipment

Length: 632,50 m

Diameter: 68 mm

Manager

Scorpio Marine Management (India) Pvt. Ltd.

101, Central Ave, Marg, Hiranandani Gardens, Sainath Nagar, Powai

Mumbai, Maharashtra 400076

India

Registered owner

STI Battersea Shipping Company Limited

Previous owner

Oriental Fleet Tanker - Monaco

Latest data adjustment

30 September 2023
