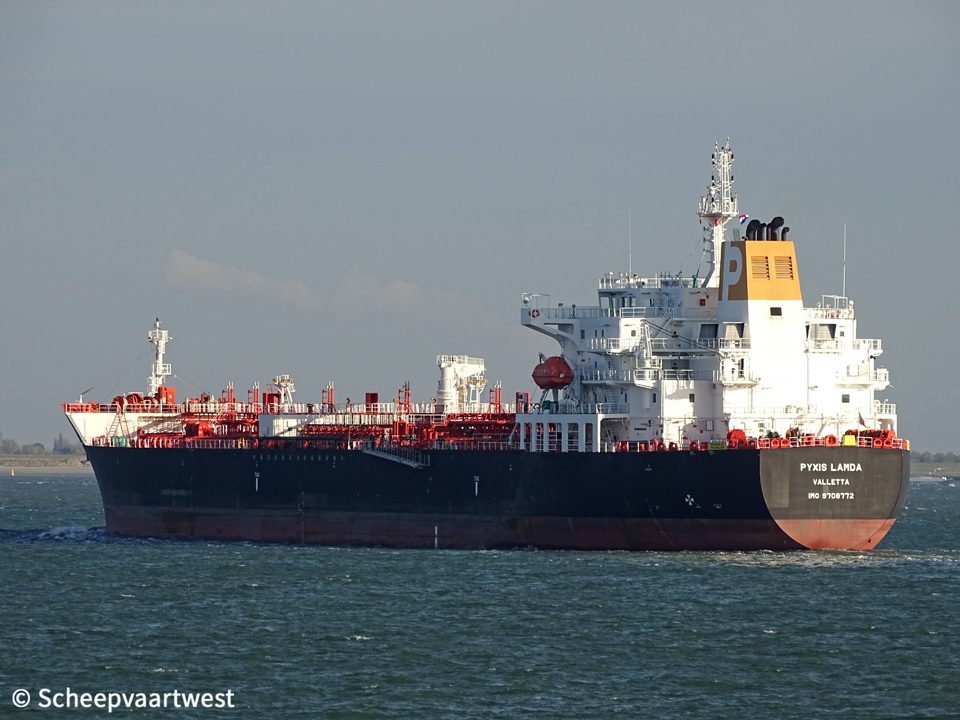

Pyxis Lamda 01

Westerschelde 31 October 2018



Name

PYXIS LAMDA

Type

Tanker for chemicals and oil products

IMO-number

9708772

Call sign

9HA4399

Flag

Malta

Port of registry

Valletta

GT

29.705 t

Suez: 31.151,82 t

DWT

Summer: 50.145,7 t

Winter: 48.695,2 t

NT

13.823

Suez: 26.668,64 t

Displacement

Summer: 60.958,5 t

Winter: 59.508,0 t

Length

183,06 m overall

174,00 m between perpendiculars

Breadth

32,24 m extreme

Draught

Summer: 13,31 m

Winter: 13,04 m

Keel to mast end

48,50 m

Air draft

Lightship: 45,66 m

Normal ballast: 41,30 m

At loaded summer deadweight: 35,20 m

Freeboard

Summer: 5.812 mm

Winter: 6.089 mm

Depth

19,10 m moulded

Speed

Ballast: Max: 14,5 knots / Economic: 12,5 knots

Laden: Max: 13,5 knots / Economic: 12,0 knots

Built

2017

Keel laid

11/11/2013

Launch date

23/09/2016

Date of completion

12/01/2017

Builder

SPP Shipbuilding Co., Ltd.- Goseong Shipyard
Donghae

South Korea

Yard number

S1164

Hull material

Steel

Hull type

Double bottom with hopper

Double side with top wing

Continuous decks

1

Main engine

1x HYUNDAI/MAN B&W 6S50ME-B9 - 2 stroke single acting 6 cylinder500 x 2.214 mm combustion engine 7.240 kW / 9.844 hp at 99,0 rpm

Builder:Hyundai Heavy Industries Co Ltd - South Korea

Propellers

1x Fixed pitch propeller - aft at 99,0 rpm

Boilers

1x Auxiliary boiler, composite

1x Auxiliary boiler, oil/gas fired

Builder: Kangrim Heavy Industries Co.,Ltd.

Generators

3x Yanmar 6EY22ALW - 4 stroke 6 cylinder 220 x 320 mm diesel engines each 970 kW coupled with 3 generators each 900 kW / 450 Volt 60 Hz

Emergency generator

1x Cummins 6CTA-8.3-D(M) diesel generatorst

Number of cargo tanks

12

Cargo tank capacity 98%

51.698,8 m³

Capacity 98% of each natural segregation

Seg#1: 6.146,3 m³ (1P/1S)

Seg#2: 9.062,9 m³ (2P/2S)

Seg#3: 9.438,3 m³ (3P/3S)

Seg#4: 9.432,6 m³ (4P/4S)

Seg#5: 9.378,9 m³ (5P/5S)

Seg#6: 8.239,8 m³ (6P/6S)

Number of slop tank

2

Slop tank capacity 98%

1.189,9 m³

Pumps

12x Framo submerged centrifugal cargo pumps 600 m/h each

2x Framo centrifugal ballast pumps 750 m³/h ech

Manifolds

Bow to centre manifold: 87,74 m

Stern to centre manifold: 95,26 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.430 mm

Distance manifold to ships side: 4.680 mm

Top of rail to centre of manifold: 740 mm

Distance main deck to centre of manifold: 1.940 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 1.232 m³

Gas oil: 248,7 m³

Ballast: 32.044 m³

Anchor equipment

Length: 632,50 m

Diameter: 73 mm

Lifting equipment

1x Crane - SWL 10,0 t midship centre

Outreach: 8,91 m

Crew size

20

Commercial operator

Pyxis Maritime Corp
59, Konstantinou Karamanli Street
Marousi, 151 25 Athens
Greece

Technical operator

International Tanker Management Holding Ltd.
Executive Heights (Damac Bldg), Office No. 809, Tecom C
Dubai
UAE

Registered owner

Ninthone Corporation
Trust Company Complex
Ajeltake Road, Ajeltake Island
Majuro MH 96960
Marshall Islands

Latest data adjustment

25 November 2019
