Vlissingen 28 April 2019 |
|
Name |

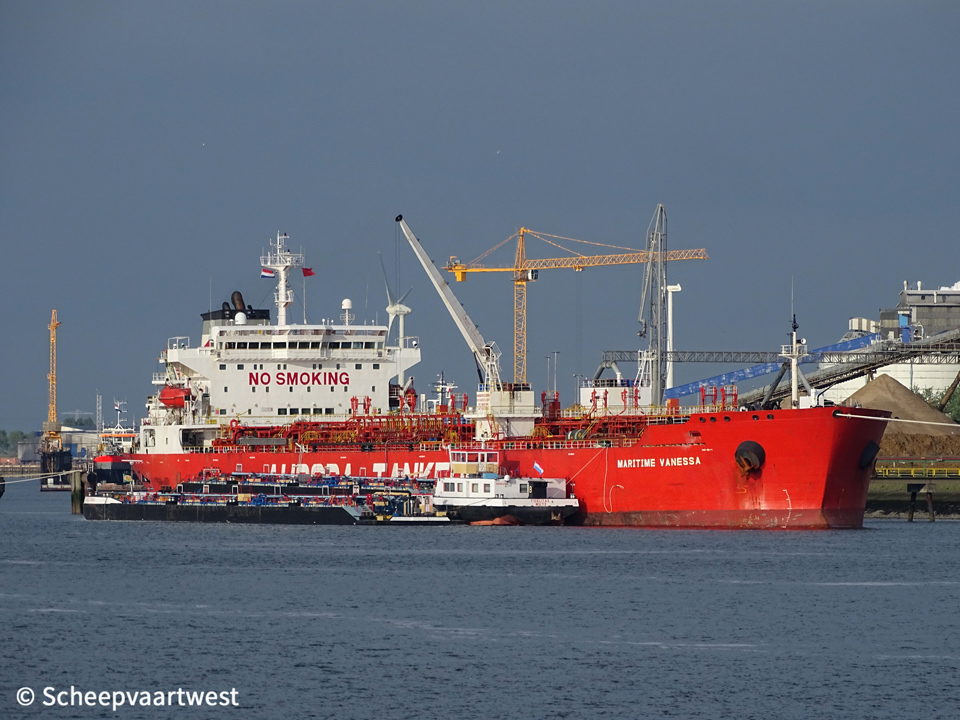

MARITIME VANESSA |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9226140 |
|
Call sign |
VRXU4 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
29.211 t Suez: 30.298 ,09 t |
|
DWT |
Summer: 44.401 t |
|
NT |
11.658 t Panama: 24.321,4 t Suez: 26.512,02 t |
|
Displacement |
56.069 t |
|
Length |
180,07 m overall 172,00 m between perpendiculars |
|
Breadth |
32,23 m overall |
|
Draught |
Max: 12,02 m |
|
Keel to mast end |
45,48 m |
|
Freeboard |
6.713 mm |
|
Depth |
18,72 m |
|
Speed |
14,5 knots |
|
Built |
2002 |
|
Keel laid |
03/12/2001 |
|
Launch date |
08/03/2002 |
|
Date of completion |
28/08/2002 |
|
Builder |
Dalian Ship Building Heavy Industry Co Ltd. 1 Haifang Street Xi Gang District, Dalian, 116021 China |
|
Yard number |
CP450-3 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S60MC (MK VI) - 2 stroke 6 cylinder 600 x 2.292 mm combustion engine 8.410 kW / 11.434 hp at 105,0 rpm Manufacturer: Dalian Marine Diesel Works |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
2x Auxiliary water tube boiler - 9,0 bar Manufacturer: Aalborg Industries 1x Waste heat boiler |
|
Generators |
3x Main diesel generatorsets each 880 kW |
|
Number of cargo tanks |
18 + 2 slop tanks |
|
Cargo tank capacity |
53.835,65 m³ |
|
Number of pumps |
18x cargo pumps each 530 m³/h |
|
Tank capacities |
Fuel oil: 2.185,5 0m³ Fresh water: 594,50 m³ Lube oi: 231,10 m³ Diesel oil: 320,00 m³ Ballast: 23.291,70 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 3,2 t 1x Hose handling crane - SWL 10,0 t 1x Provision jib crane - SWL 2,0 t 1x Spare parts jib crane - SWL 3,5 t |
|
ISM & commercial manager |
MSI Ship Management Private Ltd. 3 Lim Teck Kim Road #11-02 Genting Centre Singapore 088934 Republic of Singapore |
|
Registered owner |
Vanessa Navigation Company Limited Care of MSI Ship Management Pte Ltd. 11-02, Genting Centre, 3, Lim Teck Kim Road Singapore 088934 Republic of Singapore |
|
Latest data adjustment |
29 April 2022 |
