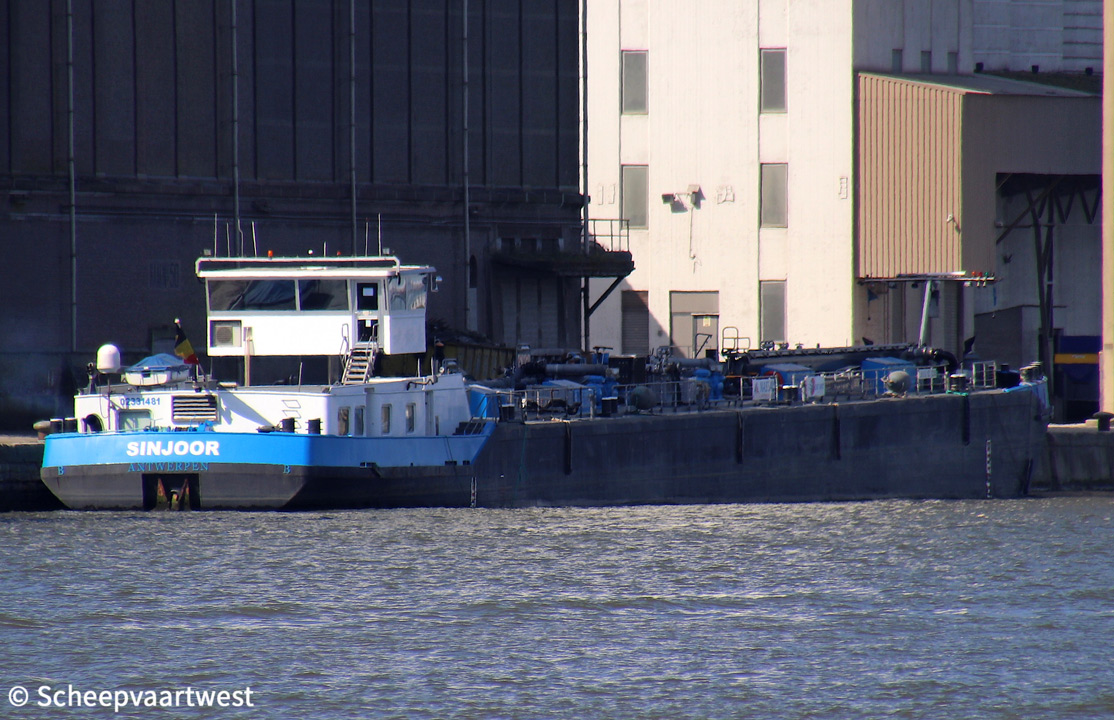

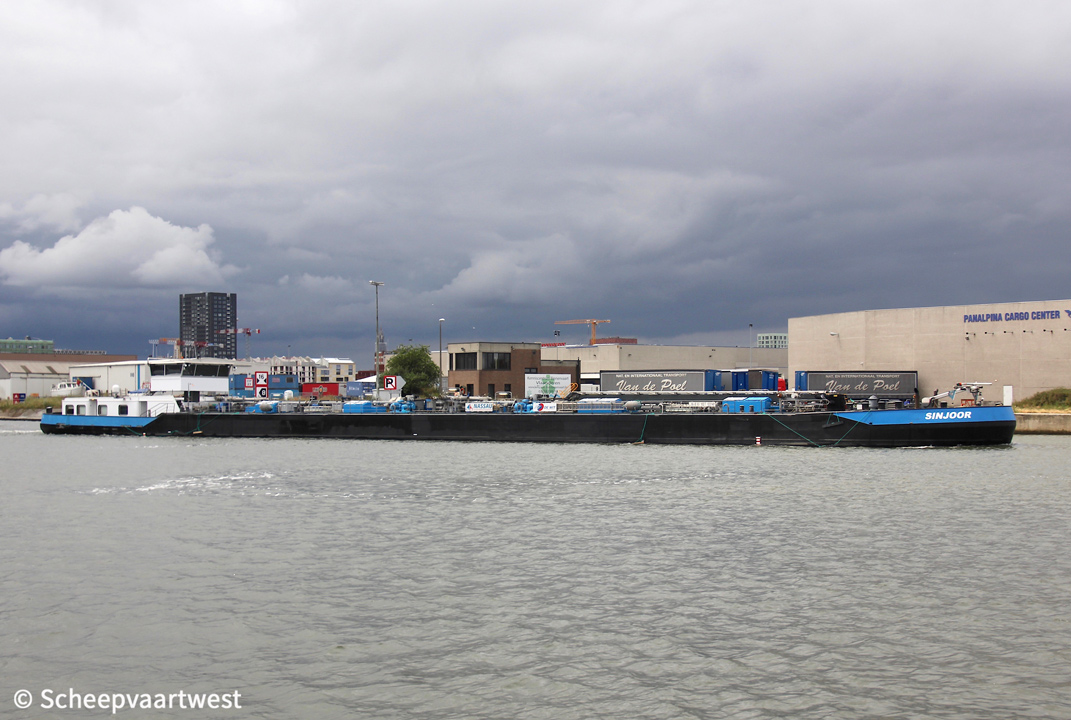

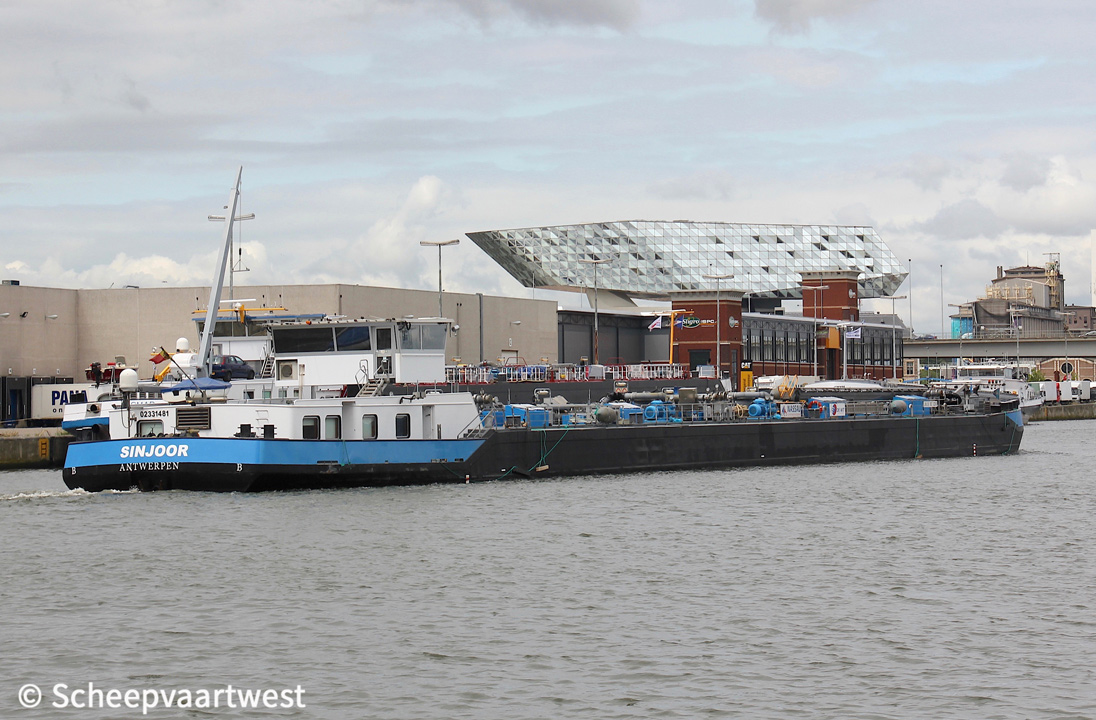

Antwerpen 14 July 2019 |
 |
 |
|
| Antwerpen 14/07/19 | Antwerpen 07/04/20 | |
|
Name |
SINJOOR |
|
Previous names |
2009 - 2019 Ravel |
|
Type |
Inland tanker |
|
IMO-number |
9445825 |
|
ENI-number |
02331481 |
|
Call sign |
OT4526 |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
Tonnage |
1.652 t |
|
Length |
85,90 m |
|
Breadth |
9,61 m |
|
Draught |
3,21 m |
|
Speed |
10,0 knots |
|
Built |
2009 |
|
Builder casco |
Czech Republic |
|
Builder completion |
De Toekomst BV Waspik The Netherlands |
|
Yard number |
120 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar C32 Acert - 4 stroke single acting 12 cylinder 145 x 162 mm combustion engine 956 kW /1.319 hp at 1.800 rpm |
|
Propellers |
1x Fixed pitch propeller - aft at 325 rpm Diameter: 1.650 mm - 5 blades with Giessen Optima nozzle diameter 1.662 mm |
|
Generators |
2x Cummins QSX 15C - 4 stroke 6 cylinder 137 x 169 mm combustion engines each 418 kW connected with Marathon 572 RSL 4028 generator each 445 kVA 1x Perkins 4.4 TWGM - 4 stroke 4 cylinder 105 x 127 mm diesel engine 75 kW connected with Marathon 362 CSL 1606 generator 85 kVA |
|
Bow thruster |
1x Cummins / van Wijk SD 900A -568 hp |
|
Number of cargo tanks |
5 |
|
Cargo tank capacity |
1.856 m³ |
|
Pumps |
2x EPS EPS350 cargo pumps each 350 m³ -8,0 bar connected with ABB electro motors each 185 kW |
|
Previous names & owners |
2009 - 2016 Ravel - Michand NV, Antwerpen - Belgium 2016 - 2019 Ravel - General Bunkering Service (GBS) Michand NV, Antwerpen - Belgium |
|
Latest data adjustment |
22 June 2020 |
