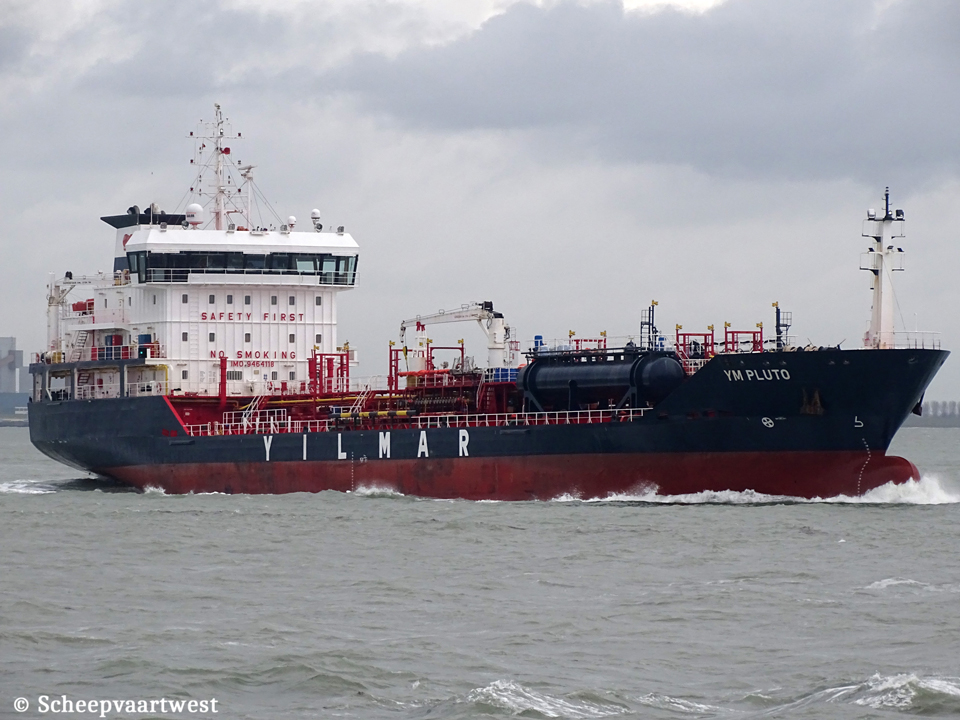

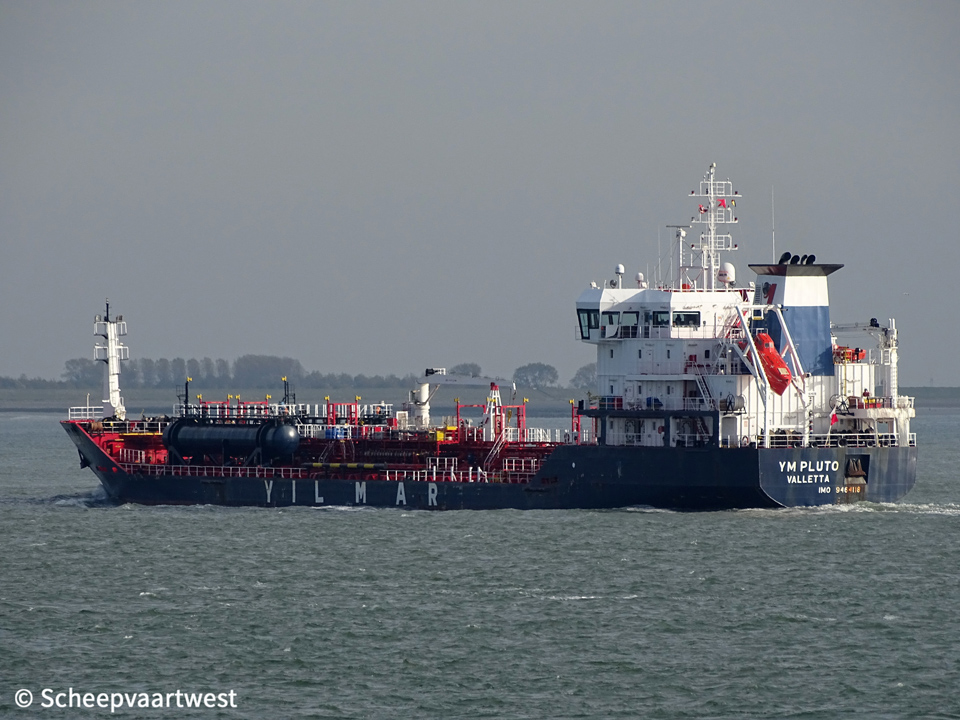

YM Pluto 01

Westerschelde 03 November 2018



Name

YM PLUTO

Type

Chemical and oil product tanker

IMO-number

9464118

Call sign

9HA2098

Flag

Malta

Port of registry

Valletta

Previous flags

Italy

GT

4.829 t

DWT

Summer: 6.970 t

NT

2.297 t

Lightship

2.932,32 t

Length

119,60 m overall

111,60 m between perpendiculars

Breadth

16,90 m extreme

Draught

Max: 6,74 m

4,34 m ballast

Keel to upper mast

33,60 m

Air draft

26,86 m laden

29,26 m ballast

Freeboard

Summer: 1.684 mm

Depth

8,40 m moulded

Speed

Max: 14,0 knots

12,0 knots ballast

11,5 knots loaded

Built

2009

Date of completion

20/10/2009

Builder

Marmara Tersanesi-Izmit

Korfez

Turkey

Yard number

79

Hull material

Mild steel

Hull type

Double hull

Main engine

1x MAN-B&W-STX 6L32/40CD - 4 stroke 6 cylinder 320 c 400 mm combustion engine 2.999 kW / 4.076 hp at 750 rpm

Manufacturer: STX Engine Co., Ltd.

Propellers

1x Screw Propeller Controllable pitch

Boilers

1x CHR 59,27 m² - 10,0 bar

1x CHS 12,00 m² - 10,0 bar

2x CHO HTI-GESAB 75,70 m² - 10,0 bar

Generators

3x MAN D2840LE301 main diesel generatorsets each 644 kVA - 515 kW

Bow thruster

613 hp / 450 kW

Number of tanks

12

Cargo tank capacity 98%

1 P/S: 408,607 / 406,599 m³

2 P/S: 737,360 / 735,403 m³

3 P/S: 632,215 / 635,333 m³

4 P/S: 782,797 / 784,940 m³

5 P/S: 635,733 / 630,640 m³

6 P/S: 729,481 / 726,200 m³

Number of slop tanks

2

Slop tank capacity 98%

P/S: 87,647 / 87,585 m³

Cargo segregation

14

Manifolds

Bow to centre manifold: 59,20 m

Rail to manifold: 4,95 m

Deck to centre manifold : 2,85 m

Tank capacities

Fuel oil: 413,21 m³

Diesel oil: 65,44 m³

Lub oil: 46,85 m³

Fresh water: 184,82 m³

Ballast: 2.995,2 m³

Crew size

19

Manager

Yildirim Holding AS

Yildirim Tower, Maslak Mahallesi, Tasyoncasi Sok. No:1C, B2 Blok

34485 Sarıyer

Turkey

Operator

Chemfleet

Orhantepe Mah. Sögüt Sok. No:6 - 34865

Dragos - Kartal - Istanbul

Turkey

Registered owner

YM Pluto Tankers Ltd.

Latest data adjustment

10 November 2019
