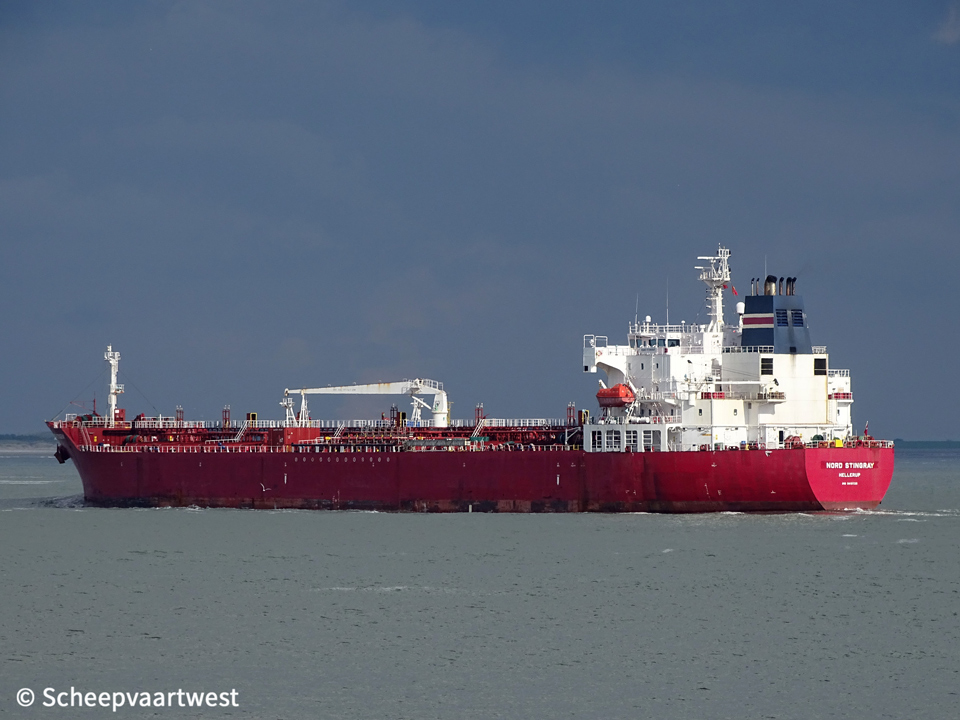

Nord Stingray 01

Westerschelde 28 April 2019



Name

NORD STINGRAY

Previous names

2009 - 06/2011 Blue Jade

06/2011 - 02/2018 Marianne Kirk

Type

Oil/chemical tanker

IMO-number

9419735

Call sign

OXQM2

Flag

Denmark

Port of registry

Hellerup

Previous flags

2009 - 2011 Republic of Singapore

2011 - 2018 United Kingdom, London

GT

29.955 t

Suez: 31.449,29 t

DWT

Summer: 49.900 t

Winter: 48.508,2 t

NT

13.607 t

Suez: 26.946,49 t

Panama: 24.862 t

Displacement

Summer: 59.9235 t

Winter: 58.531,7 t

Length

183,00 m overall

173,90 m between perpendiculars

Breadth

32,20 m extreme

Draught

Summer: 10,88 m

Winter: 12,61 m

Keel to masthead

47,78 m

Air draft

Lightship: 45,13 m

Normal ballast: 40,42 m

Summer deadweight: 34,90 m

Forecastle

Summer: 6.251 mm

Winter: 6.520 mm

Depth

19,10 m moulded

Speed

Ballast 14,50 knots

Laden: 14,0 knots

Economic: 10,0 knots

Built

2009

Keel laid

31/12/2008

Launch date

05/03/2009

Date of completion

12/05/2009

Builder

STX Shipbuilding Co. Ltd.
Gyeongsangnam-do
South Korea

Yard number

1271

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W-STX MAN B&W 6S50MC-C MK7 - 2 stroke 6 cylinder combustion engine 9.480 kW

Propellers

1x Mono-block

Boilers

1x Auxiliary boiler, oil/gas fired (Vertical Shell)

1x Auxiliary boiler, exhaust gas heated

Builder: Kangrim

Generators

3x MAN-STX 6L23/30H diesel generatorsets each 900 kW

Emergency generator

1x Cummins 6CTA-8.3-D(M) diesel generatorset

Number of cargo tanks

12

Total cargo tanks capacity 98%

52.148,3 m³

Segregation capacity with double valve 98%

Seg#1: 6.156,4 m³ (No 1 Wings)

Seg#2: 9.247,0 m³ (No 2 Wings)

Seg#3: 9.414,0 m³ (No 3 Wings)

Seg#4: 9.418,3 m³ (No 4 Wings)

Seg#5: 9.418,1 m³ (No 5 Wings)

Seg#6: 8.494,5 m³ (No 6 Wings)

Seg#7: 1.410,1 m³ (S P/S (700,0 + 710,1)

Number of slop tanks

2

Slop tank capacity 98%

1.410,1 m³

Pumps

2x Submerged ballast pumps each 750 m³/h

12x Submerged cargo pumps each 600 m³/h

2x Submerged cargo pumps each 300 m³/h

Manifolds

Distance bridge front to centre of manifold: 57,23 m

Bow to centre manifold: 92,07 m

Stern to centre manifold: 90,94 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.750 mm
Top of rail to centre of manifold: 800 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 1.265 m³
Diesel oil: 442,40 m³
Gas oil: 85,20 m³

Ballast: 33.784,7 m³

Lifting equipment

1x Crane - SWL 10,0 t

Crew size

27

Manager

Dampskibsselskabet NORDEN A/S - Denmark

Technical operator

Dampskibsselskabet NORDEN A/S
52 Strandvejen
DK-2900 Hellerup
Denmark

Commerical operator

Norient Product Pool ApS as agent to owners
52 Strandvejen
DK-2900 Hellerup
Denmark

Previous operator

Hafnia Management
Hellerup
Denmark

Registered owner

Dampskibsselskabet NORDEN A/S
52 Strandvejen
DK-2900 Hellerup
Denmark

Previous names & owners

2009 - 06/2011 Blue Jade - Korea Line Singapore Pte Ltd

06/2011 - 02/2018 Marianne Kirk- Marianne Kirk A/S

Latest data adjustment

10 October 2019
