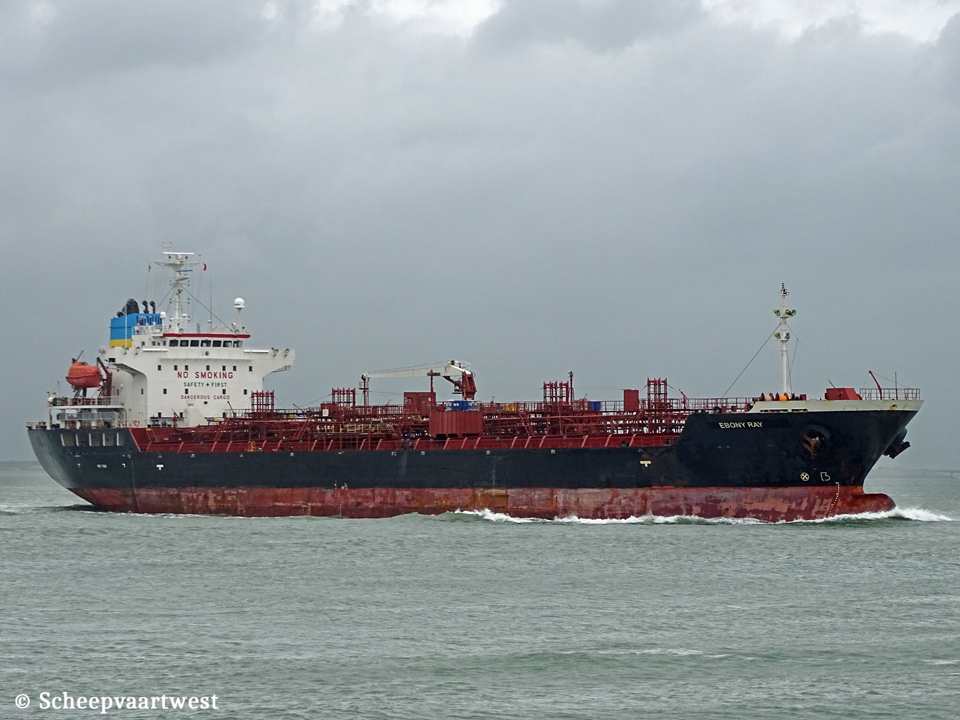

| Westerschelde 01 July 2017 |
 |
|

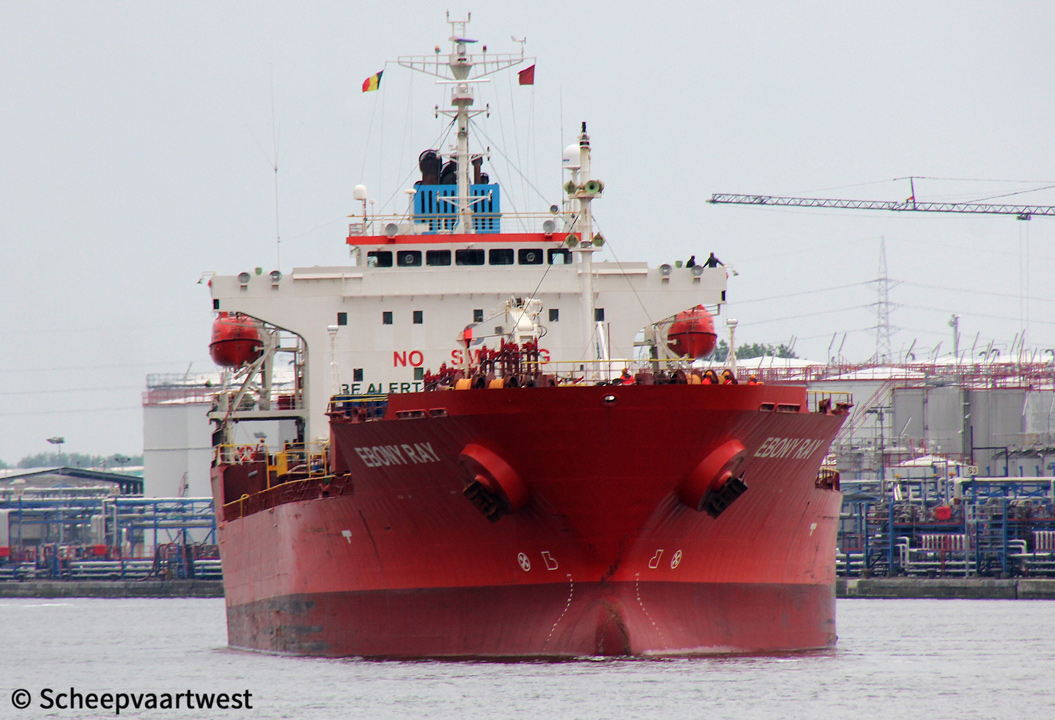

| Antwerpen 07/05/19 | |
|
Name |
EBONY RAY |
|
Previous names |
2008 - 04/2014 Millennium Park |
|
Type |
Oil/Molasses/Chemical tanker |
|
IMO-number |
9363857 |
|
Call sign |
9V2192 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
2008 - 2013 United Kingdom |
|
GT |
11.590 t registered |
|
DWT |
Summer: 19.998,58 t |
|
NT |
6.119 t registered |
|
Light displacement |
5.310 t |
|
Length |
145,83 m overall |
|
Breadth |
23,70 m moulded |
|
Draught |
Max: 9,72 m |
|
Moulded L x B x D |
137,00 x 23,70 x 13,35 m |
|
Registered L x B x D |
137,92 x 23,70 x 13,35 m |
|
Keel to mast end |
37,20 m |
|
Freeboard |
Summer: 3.664 mm |
|
Depth |
13,35 m moulded |
|
Speed |
Max: 15,1 knots |
|
Built |
2008 |
|
Keel laid |
04/03/2008 |
|
Launch date |
30/05/2008 |
|
Date of completion |
29/07/2008 |
|
Builder |
Usuki Shipyard Co.,Ltd. Usuki Japan |
|
Yard number |
1711 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 6.150 kW / 8.362 bhp at 136,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 420 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar (Economizer) Evaporation: 16,05 t/h Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 475 kW |
|
Bow thruster |
1x 610 kW |
|
Number of tanks |
22 + slop tanks |
|
Cargo tank capacity 98% |
Liquid: 22.188 m³ |
|
Slop tank capacity 98% |
1.354 m³ |
|
Number of pumps |
16x Cargo pumps each 310 m³/h 6x Cargo pumps each 200 m³/h |
|
Tank capacities |
Fuel oil: 1.070 m³ Fresh water: 226 m³ |
|
Crew size |
23 |
|
Commercial manager |
Eastern Pacific Shipping Pte. 38-01, Millenia Tower, 1, Temasek Avenue Singapore 039192 Republic of Singapore |
|
ISM manager |
M.T.M. Ship Management Pte. Ltd. 13-01, 78, Shenton Way Singapore 079120 Republic of Singapore |
|
Registered owner |
Nitizo Marine Ltd. Care of Eastern Pacific Shipping Pte Ltd. 38-01, Millenia Tower, 1, Temasek Avenue Singapore 039192 Republic of Singapore |
|
Previous names & owners |
2008 - 04/2014 Millennium Park - Lexon Shipping Inc (Zodiac Maritime Agencies Ltd. London as manager) London - United Kingdom |
|
Renamed |
11/2022 Sinar Mendawai Republic of Singapore, Singapore City - Call sign: 9V2192 Registered owner: Samudera Tankers Pte. Ltd. Manager: Norstar Ship Management Pte, Ltd - Republic of Singapore |
|
Latest data adjustment |
26 August 2024 |
