Antwerpen 26 April 2019 |
 |
 |
|
| Antwerpen 24/04/19 | Westerschelde 28/10/19 | |
|
Name |

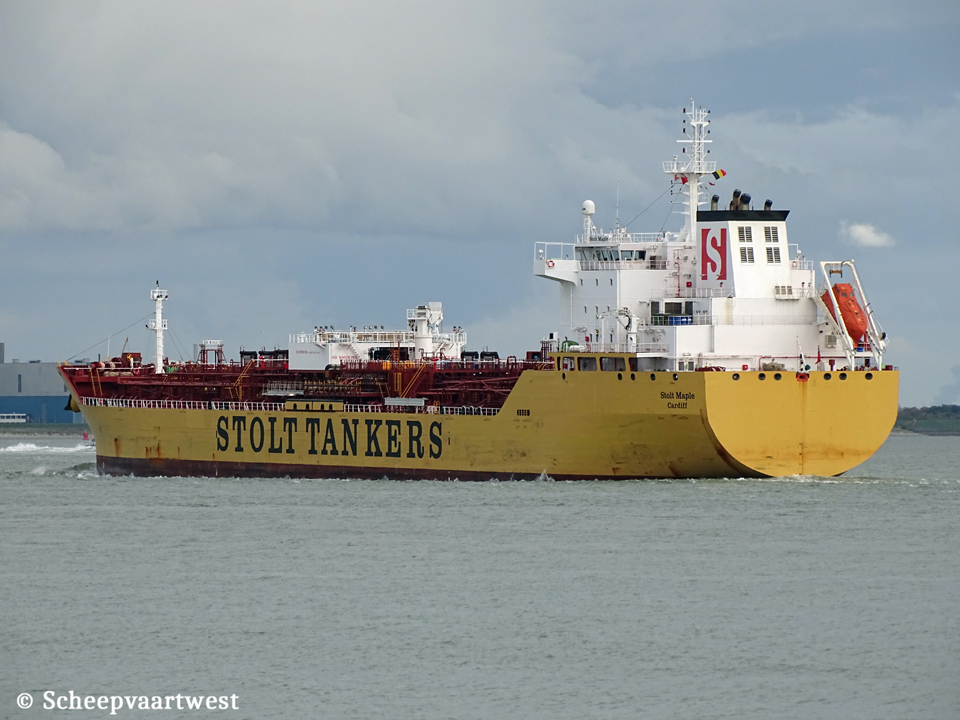

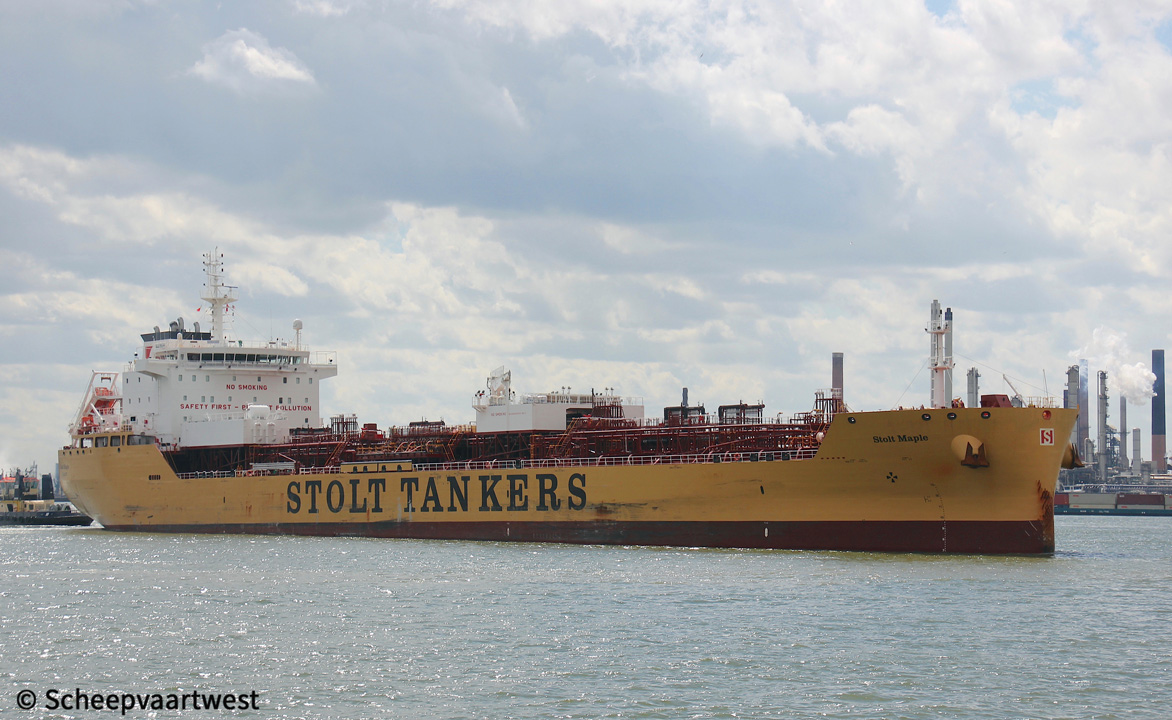

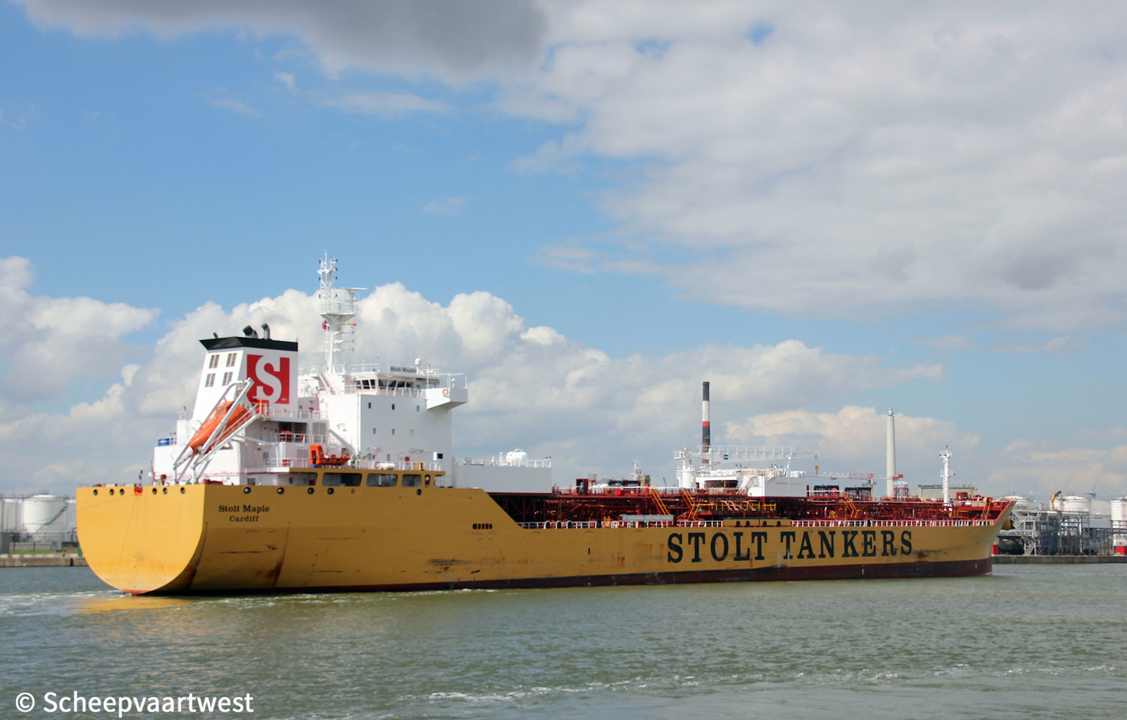

STOLT MAPLE |
|
Type |
Chemical/Oil products tanker |
|
IMO-number |
9764491 |
|
Call sign |
MBAV2 |
|
Flag |
United kingdom |
|
Port of registry |
Cardiff |
|
GT |
23.124 t |
|
DWT |
32.825 t |
|
NT |
9.485 t |
|
Length |
184,96 m overall 181,54 m between perpendiculars |
|
Breadth |
28,45 m |
|
Draught |
Max: 10,41 m |
|
Keel to mast end |
47,60 m |
|
Depth |
15,30 m |
|
Speed |
14,5 knots |
|
Built |
2017 |
|
Date of completion |
20/10/2017 |
|
Builder |
New Times Shipbuilding Industry Co. Ltd. Jingjiang China |
|
Yard number |
0303307 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/Jingjiang Dakai Heavy Machinery 5G50ME-B9 - 2 stroke 5 cylinder 500 x 2.500 mm combustion engine 5.850 kW / 7.954 hp at 85,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
2x Generators each 1.260 kW 1x Generator 940 kW |
|
Bow thruster |
1x 790 kW |
|
Number of cargo tanks |
28 |
|
Cargo tank capacity |
38.147 m³ |
|
Number of pumps |
14x Cargo pumps each 330 m³/h 14x Cargo pumps each 220 m³/h |
|
Crew size |
32 |
|
ISM & Commerical manager |
Stolt Tankers BV Westerlaan 5 3016 CK Rotterdam The Netherlands |
|
Registered owner |
Hassel Shipping 4 AS - Norway Care of Stolt Tankers BV Westerlaan 5 3016 CK Rotterdam The Netherlands |
|
Latest data adjustment |
15 August 2021 |
