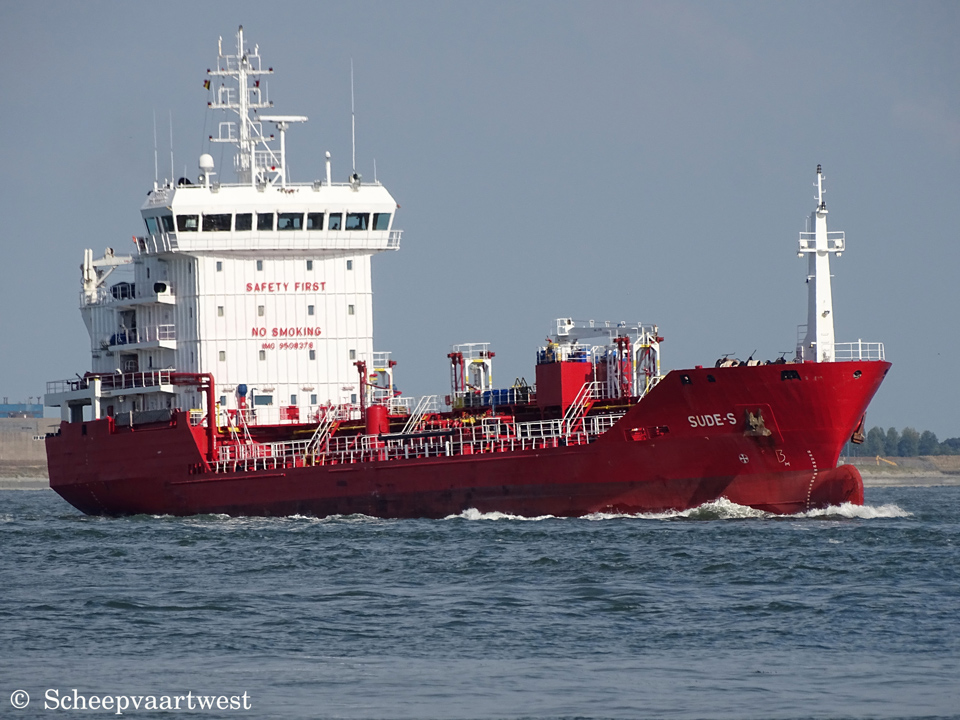

Sude S 01

Westerschelde 11 August 2018

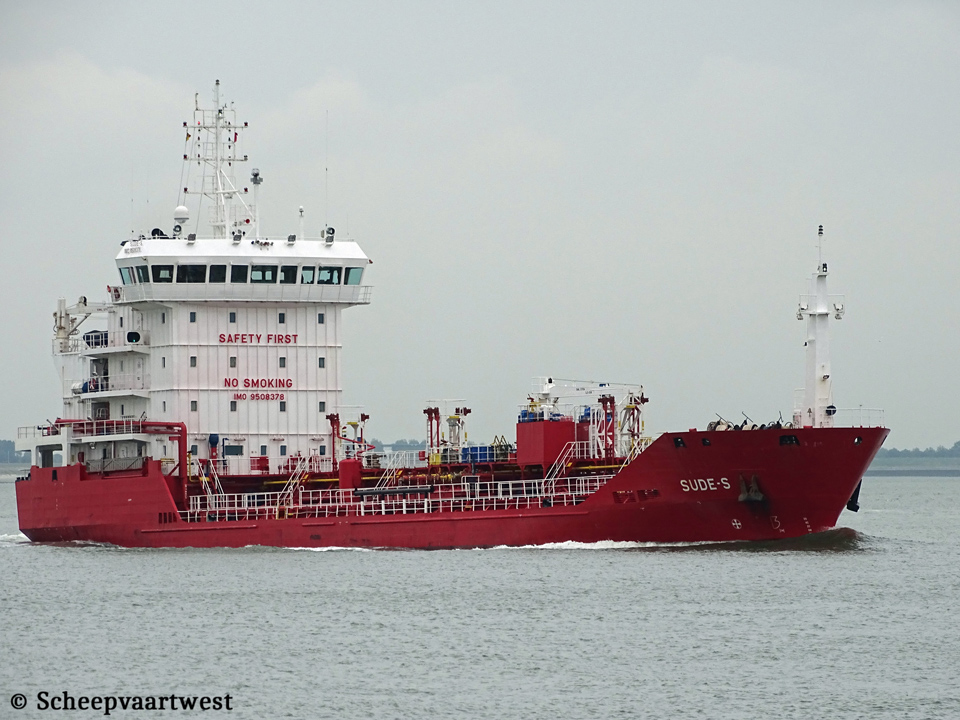

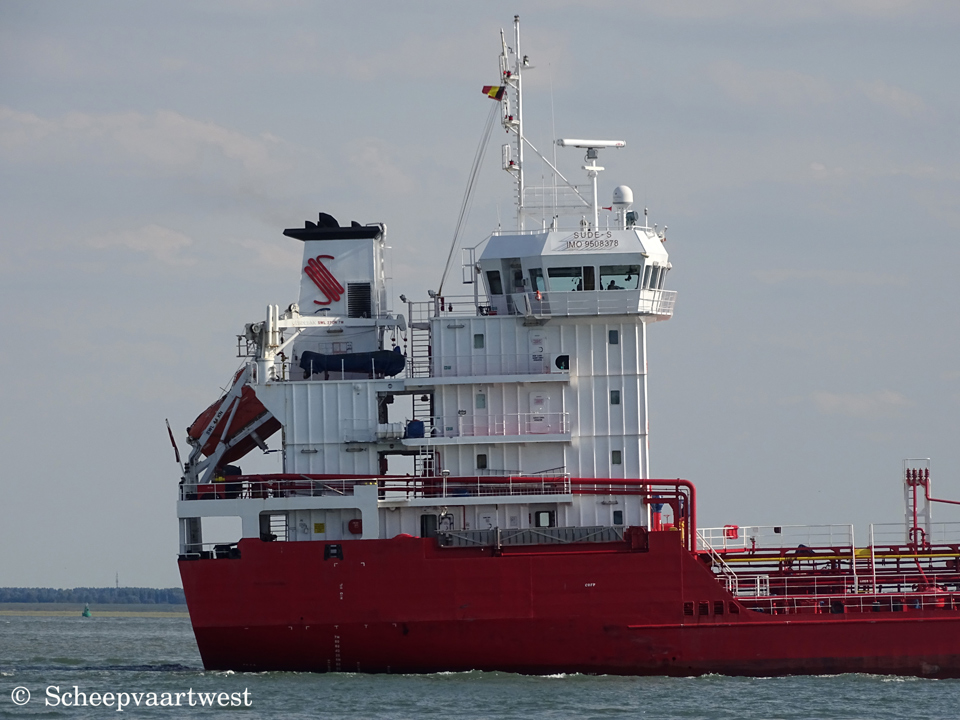

Sude S 03   Sude S IMO 9508378 04
Westerschelde 11/08/18   Westerschelde 03/09/18



Name

SUDE-S

Type

Oil/chemical tanker

IMO-number

9508378

Call sign

9HA5156

Flag

Malta

Port of registry

Valletta

Previous flag

2009 - 2019 Turkey, Istanbul - Call sign: TCSX6

GT

2.802 t registered

DWT

Summer: 3.543 t

NT

1.172 t registered

Length

93,11 m overall

Breadth

14,50 m moulded

Draught

Max: 5,71 m

Moulded L x B x D

86,95 x 14,50 x 7,20 m

Registered L x B x D

86,95 x 14,50 x 7,20 m

Freeboard

1.510 mm

Depth

7,20 m moulded

Speed

13,6 knots ballast

12,8 knots laden

Built

2009

Keel laid

16/08/2007

Date of completion

20/01/2009

Builder

Yildirim Gemi Insaat Sanayii A.S.

Istanbul

Turkey

Yard number

113

Hull material

Steel

Main engine

1x STX/MAN-B&W 8L28/32 - 4 stroke single acting 8 cylinder 280 x 320 mm combustion engine 1.960 kW / 2.663 hp at 775 rpm

Manufacturer: STX Engine Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 350 mm

Propellers

1x Screw propeller controllable pitch

Boilers

1x CHR 40,00 m² - 10,0 bar

2 xCHO 25,00 m² - 10,0 bar

Manufacturer: Garioni Naval S.R.L

Generators

3x Scania main diesel generatorsets each 563 kVA - 450 kW - 611 hp

Emergency generator

1x Diesel generatorset 217 kVA - 174 kW - 231 hp

Number of cargo tanks

11

Cargo tank capacity

98% :4.192,98 m³

100 %: 4.277 m³

Pumps

11x Hamworthy deepwell cargo pumps each 300 m³/h

Max loading rate

345 m³/h

Manifolds

Bow to centre manifold: 41,10 m

Stern to centre manifold: 52,01 m

Rail to manifold: 2,50 m

Deck to manifold: 2,24 m

Tank capacities

Fuel oil IFO: 204,2 m³

MGO: 47,10 m³

Fresh water: 184,7 m³

Crew

14

Manager

Miklagard S Gemi Isletmeciligi Ve Ticaret A.S.

Balat, Ayvansaray Mahallesi, Mürselpaşa Caddesi No 243

34087 Fatih

Turkey

Registered owner

RFTankers II AS

c/o NorthCape Capital AS Kronprinsens gate 5

0251, Oslo

Norway

Latest data adjustment

11 February 2021
