Antwerpen 11 September 2018 |
|
Name |

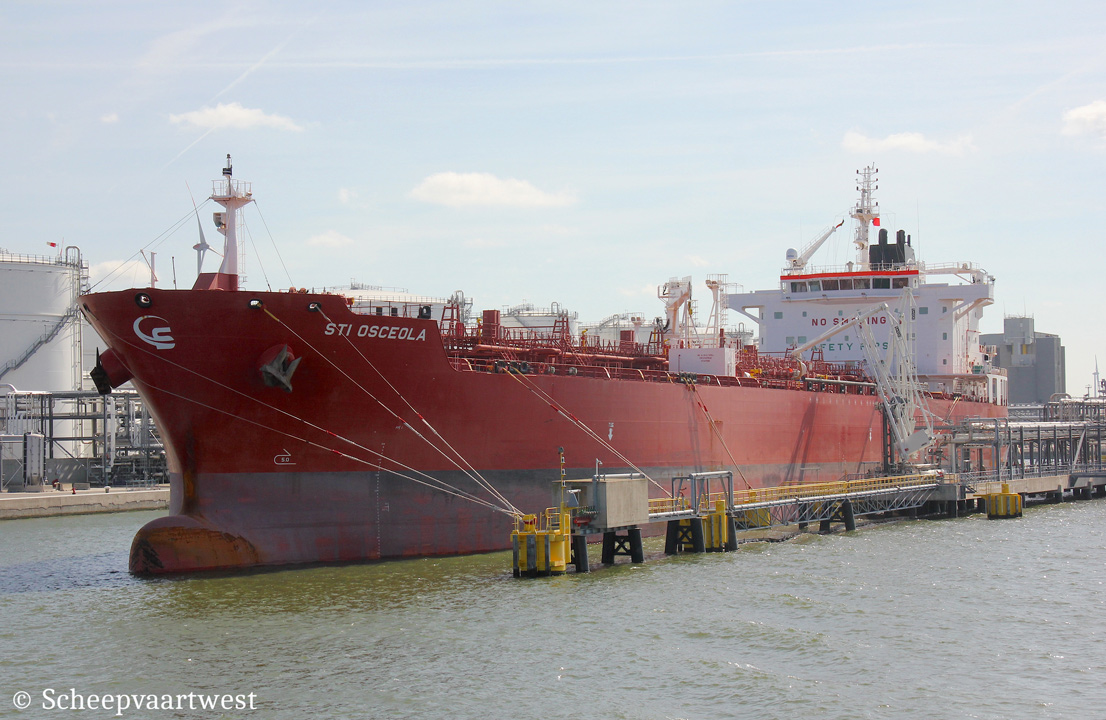

STI OSCEOLA |
|
Type |
Chemical and oil tanker |
|
IMO-number |
9707807 |
|
Call sign |
V7IW3 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
29.785 t registered Suez: 31.623,45 t |
|
DWT |
Summer: 49.990 t |
|
NT |
13.224 t registered Panama: 24.724 t Suez: 27.515,13 t |
|
Length |
183,12 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Max: 13,33 m |
|
Freeboard |
6.095 mm |
|
Depth |
19,40 m moulded |
|
Speed |
Max: 14,5 knots |
|
Built |
2015 |
|
Keel laid |
29/11/2013 |
|
Delivery date |
30/04/2015 |
|
Builder |
Hyundai Mipo Dockyard Co. Ltd. |
|
Yard number |
2490 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 8 Oil tight: 8 |
|
Main engine |
1x MAN-B&W-HHI 6G50ME-B9.3 - 2 stroke 6 cylinder 500 x 2.500 mm combustion engine 8.090 kW at 90,7 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler - 9,0 bar 1x Composite Boiler - 9,0 bar Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Main diesel generatorsets each 800 kW Manufacturer: HHI Electro Electric System |
|
Pumps |
12x Framo cargo pumps each 200 m³/h 2x Framo cargo pumps each 150 m³/h |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 100% |
54.646,5 m³ |
|
Number of slop tanks |
2 |
|
Number of tanks |
Ballast: 14 Fuel oil: 9 Lubricating oil: 8 Sludge: 5 Waste water: 4 Diesel oil: 3 Fresh water: 2 Chain: 2 Hydraulic oil: 1 Fixed ballast liquid: 1 Gasoline: 1 |
|
Tank capacities 100% |
Diesel oil: 239 m³ Freshwater: 276,4 m³ Fuel oil: 1.458,7 m³ Hydraulic oil: 17,9 m³ Lube oil: 131,1 m³ Tank ballast: 22.443,6 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane port - SWL 2,0 t 1x Provision crane starboard - SWL 4,0 t Manufacture: Dongnam Marine Crane Co., Ltd. |
|
Manager |
Scorpio Commercial Management SAM |
|
Operator |
Zenith Gemi Isletmeciligi AS 34771, Umraniye Istanbul Turkey |
|
Registered owner |
STI Osceola Shipping Company Limited |
|
Latest data adjustment |
27 October 2018 |
