Westerschelde 20 February 2018 |
 |
 |
 |
 |
|||
| Vlissingen 15/11/17 | Vlissingen 15/11/17 | Vlissingen 15/11/17 | Vlis 15/11/17 | |||
|
Name |

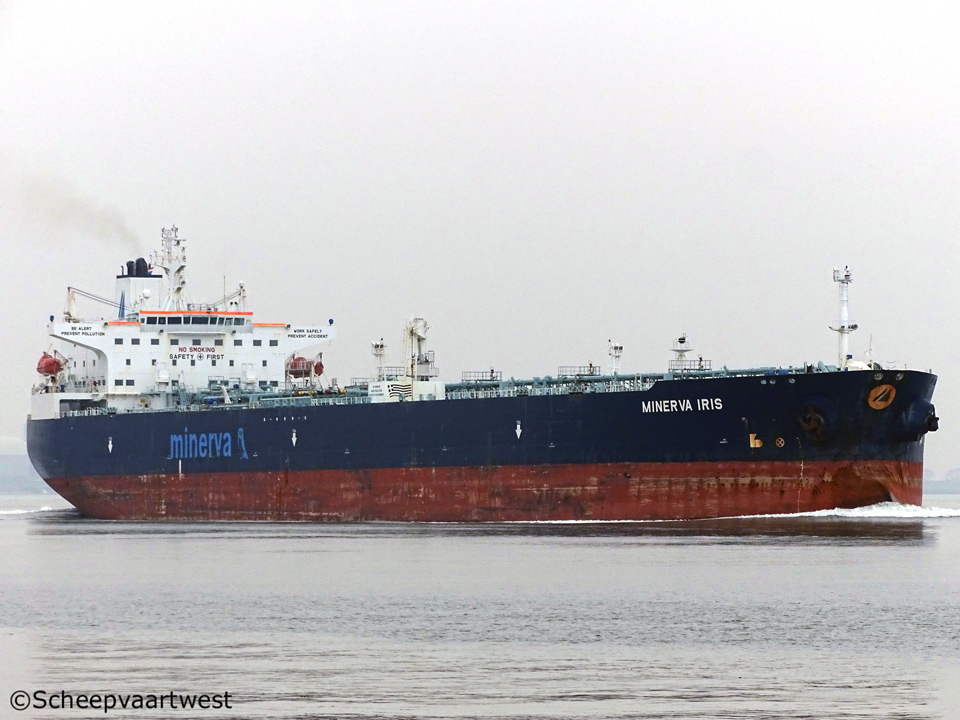

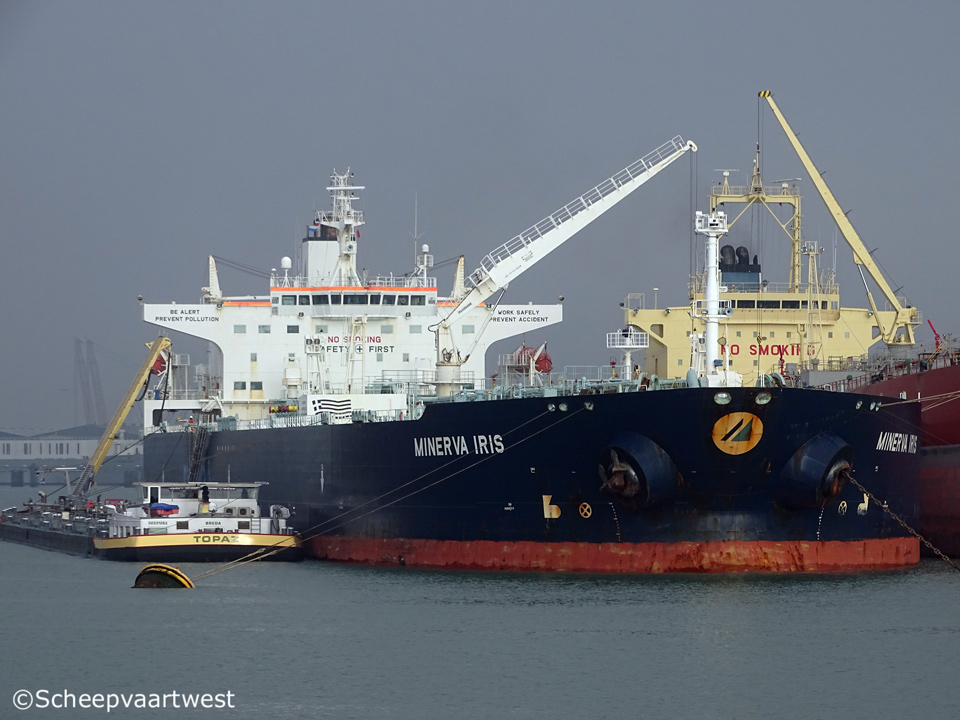

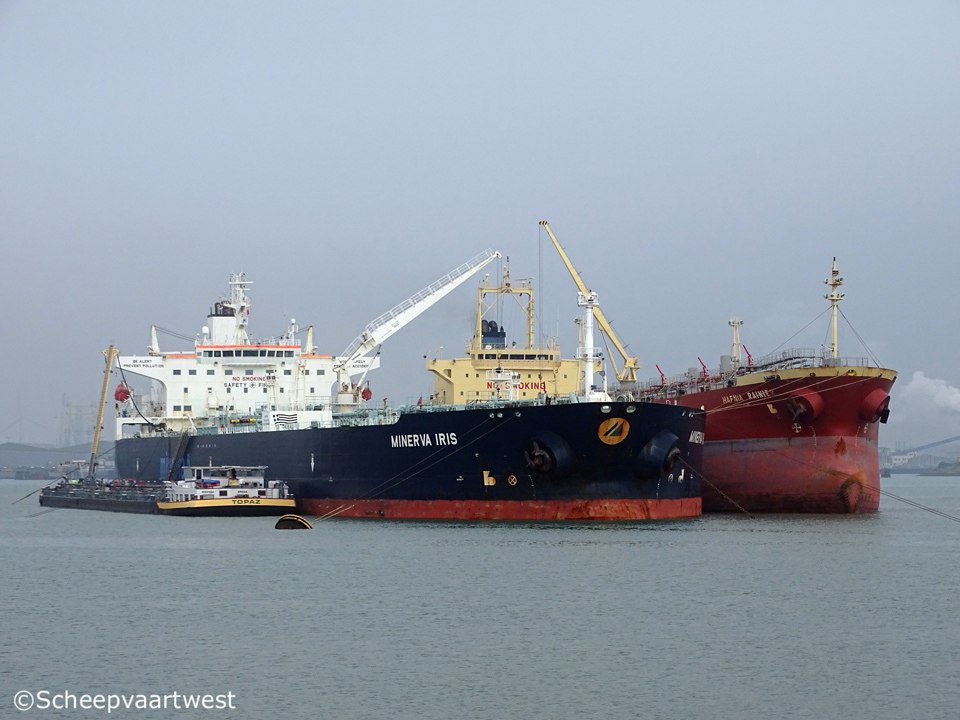

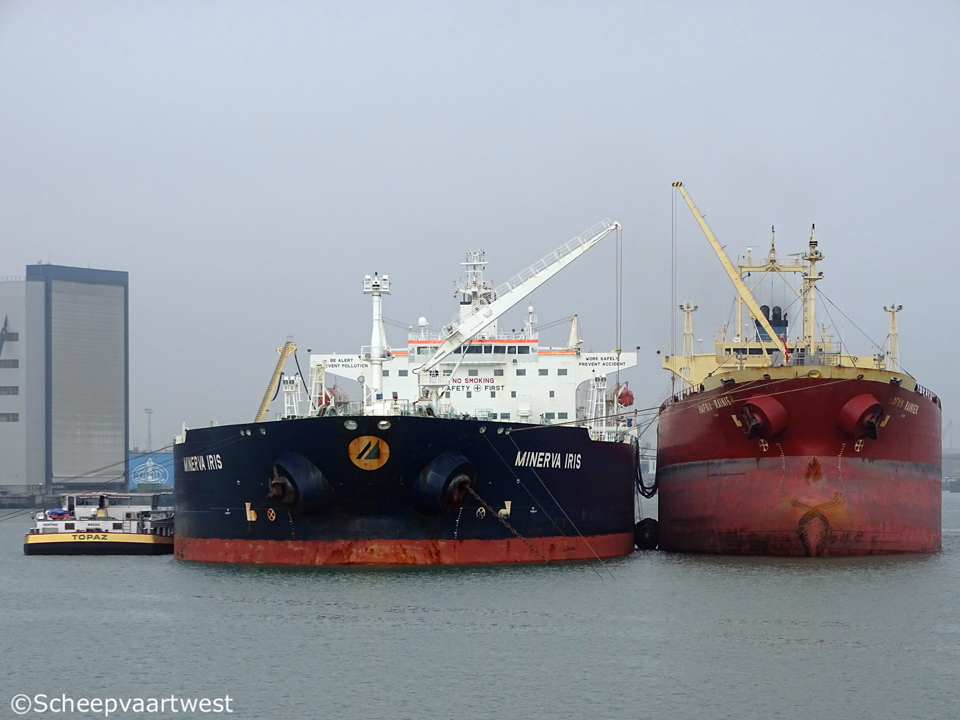

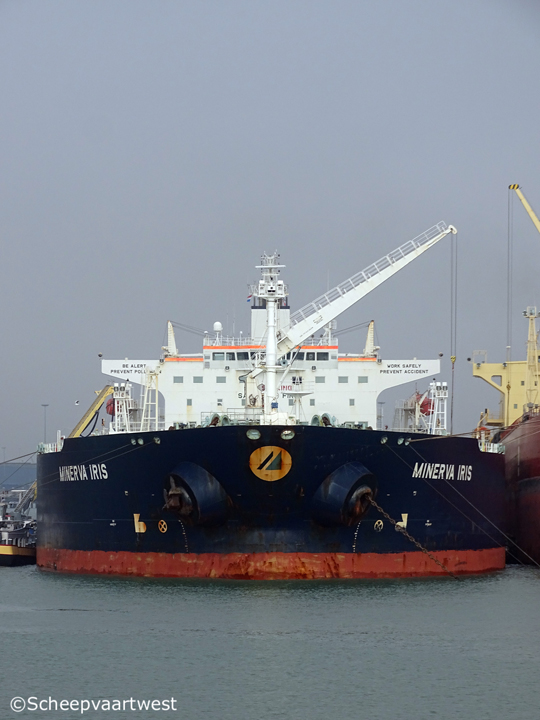

MINERVA IRIS |
|
Type |
Crude oil tanker - Product carrier - Aframax |
|
IMO-number |
9285861 |
|
Call sign |
SVCP |
|
Flag |
Greece |
|
Port of registry |
Piraeus |
|
GT |
58.156 t registered Suez: 59.468 t |
|
DWT |
Summer: 103.123,7 t |
|
NT |
31.033 t registered Suez: 53.431 t |
|
Displacement |
Light ship: 19.018,4 t |
|
Length |
243,80 m overall 233,05 m between perpendiculars |
|
Breadth |
42,04 m moulded |
|
Draft |
14,77 m |
|
Freeboard |
6.567 mm |
|
Depth |
21,30 m moulded |
|
Speed |
15,4 knots |
|
Built |
2004 |
|
Keel laid |
01/06/2004 |
|
Launch date |
11/07/2004 |
|
Delivery date |
13/09/2004 |
|
Builder |
Samsung Heavy Industries Co., Ltd. |
|
Yard number |
1475 |
|
Hull material |
High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 12 Non tight: 2 Oil tight: 1 |
|
Main engine |
1x HDS/MAN B&W 7S60MC - 7 cylinder combustion engine 14.511 kW / 19.460 hp at 105,0 rpm Manufacturer: HSD Engine Co.,Ltd. |
|
Propellers |
1 |
|
Boilers |
2x Auxiliary boiler - 16 bar manufacturer: Mitsubishi Heavy Ind. 1x Auxiliary composite boiler - 8,0 bar |
|
Generators |
3x main diesel generatorsets each 980 kW |
|
Bow thruster |
1x 1.100 kW |
|
Number of cargo tanks |
14 |
|
Cargo tank capacity |
120.101,9 m³ - 100 % 113.317,00 m³ (98%, excluding slop tanks) |
|
Slop tank capacity 98% |
4.395 m³ |
|
Pumps |
3x Centrifugal cargo pumps each 2.800 m³/h |
|
Number of tanks |
Ballast: 14 Fuel oil: 10 Lubricating oil: 10 Sludge: 6 Fresh water: 4 Diesel oil: 3 Chain: 2 |
|
Tank capacities 100% |
Diesel Oil: 163,3 m³ / 146,97 t Freshwater: 448,4 m³ Fuel Oil: 5.511,9 m³ / 5.401,66 t Lube Oil: 201,6 m³ / 181,44 t Tank Ballast: 40.480,5 m³ / 41.492,51 t |
|
Lifting equipment |
1x Engine room crane - SWL 4,5 t 1x Hose handling crane - SWL 15,0 t 1x Provision crane (Port) - SWL 4,0 t 1x Provision Crane (Stbd) - SWL 4,0 t |
|
Manager |
Minerva Marine Inc. Athens, 16673 |
|
Operator |
Iris M Special Maritime Enterprise |
|
Registered owner |
Iris M Special Maritime Enterprise |
|
Latest data adjustment |
07 May 2018 |
