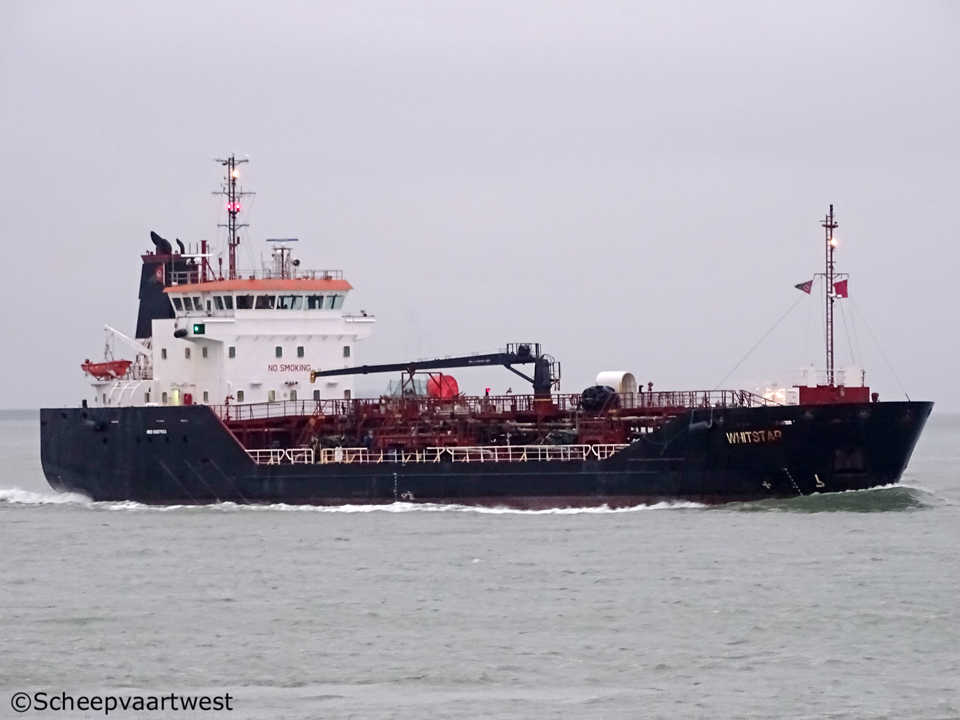

| Westerschelde 10 September 2017 | |
 |
 |
|

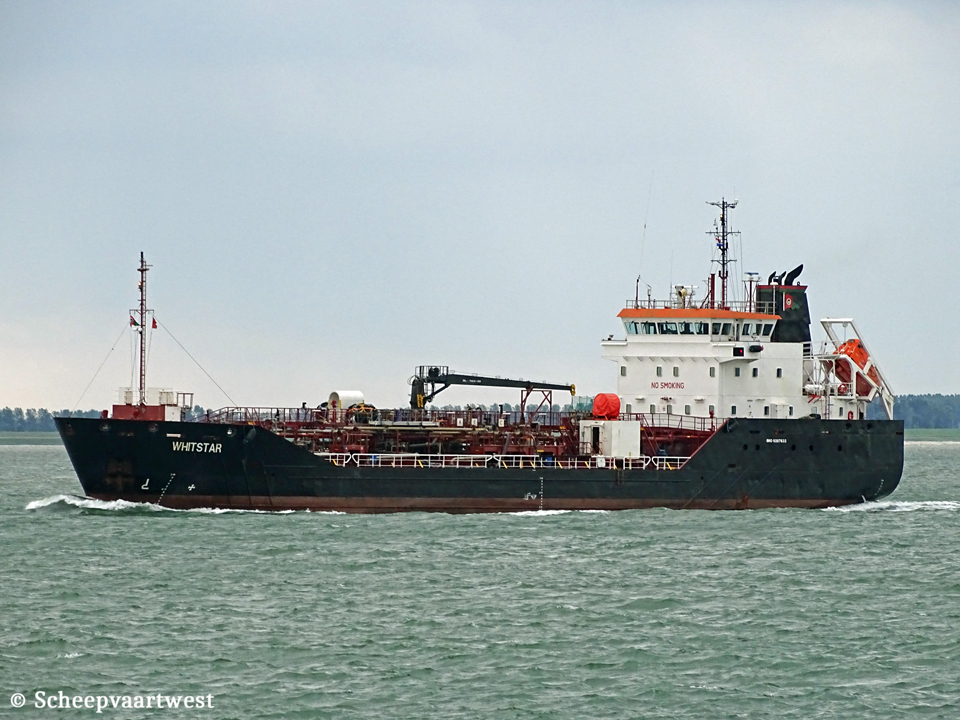

| Westerschelde 10/09/17 | Westerschelde 22/12/17 | |
|
Name |
WHITSTAR |
|
Previous names |
2004 - 02/2010 Border Heather |
|
Type |
Oil products tanker |
|
IMO-number |
9287833 |
|
Call sign |
MFTS2 |
|
Flag |
United Kingdom |
|
Port of registry |
Hull |
|
Previous flags |
2004 - 2012 Isle of Man, Douglas 2012 - 2014 Republic of Panama, Panama City 2014 - 2016 Isle of Man, Douglas |
|
GT |
2.159 t |
|
DWT |
Summer: 3.189 t |
|
NT |
824 t |
|
Displacement |
4.688,99 t |
|
Light ship |
1.477 t |
|
Length |
75,10 m overall 70,40 m between perpendiculars |
|
Breadth |
14,00 m |
|
Draft |
5,76 m loaded |
|
Depth |
7,60 m |
|
Speed |
10,5 knots |
|
Built |
2004 |
|
Date of completion |
13/09/2004 |
|
Builder casco |
Damen Galati S.A. Santierul Naval Romania |
|
Builder completion |
Damen Shipyard Bergum Bergum The Netherlands |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.160 kW / 2.936 hp at 750 rpm Manufacturer: Caterpillar Marine Power Systems GmbH, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x 348 kW / 435 kVA |
|
Generators |
2x Daihatsu diesel engines each 420 kW connected with generator each 525 kVA |
|
Emergency & harbour gen. |
1x Diesel diesel engine 64 kW connected with generator 80 kVA |
|
Bow thruster |
1x Veth 2-K-1000- 220 kW |
|
Number of cargo tanks |
10 |
|
Cargo tank capacity 100% |
Tank 1: 278 m³ Tank 2: 364 m³ Tank 3: 279 m³ Tank 4: 326 m³ Tank 5: 325 m³ Tank 6: 178 m³ Tank 7: 279 m³ Tank 8: 325 m³ Tank 9: 326 m³ Tank 10: 326 m³ Total 95%: HFO: 2.216 m³ Gas oil: 642 m³ Total: 2.858 m³ |
|
Number of slop tanks |
1 |
|
Slop tank capacity 100% |
46 m³ |
|
Pumps |
10x Marflex Deepwell cargo pumps 200 m³/h each 2x Ballast pumps 400 m³/h each |
|
Max loading rate |
600 m³ |
|
Max discharge rate |
500 m³ |
|
Tank capacities |
Ballast: 1.576 m³ Bunkering: 171 m³ Fresh water: 43 m³ |
|
Lifting equipment |
1x Crane - SWL 0,9 t at 16,00 m |
|
Operator |
John H. Whitaker (Tankers) Ltd. Crown Dry Dock, Tower Street, Hull HU9 1TY United Kingdom |
|
Owner |
John H. Whitaker (Tankers) Ltd. Hull United Kingdom |
|
Latest data adjustment |
04 August 2024 |
