Westerschelde 25 December 2017 |
|
Name |

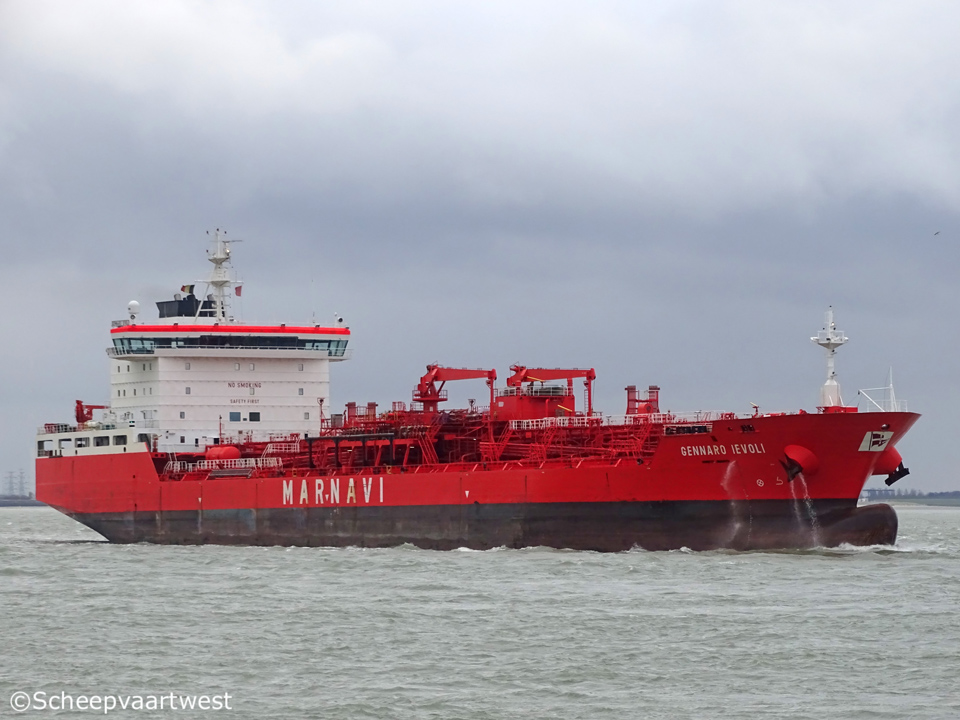

GENNARO IEVOLI |
|
Type |
Oil tanker/Chemical tanker |
|
IMO-number |
9223851 |
|
Call sign |
9HA3007 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
Italy |
|
GT |
17.450 t registered Panama: 14.600 t Suez: 18.500 t |
|
DWT |
Summer: 26.842 t oil products Summer: 27.912 t chemical products |
|
NT |
8.250 t registered Suez: 15.400 t |
|
Length |
170,15 m overall 162,55 m between perpendiculars |
|
Breadth |
27,20 m moulded |
|
Draft |
10,30 m chemicals products 10,04 m oil products |
|
Keel to masthead |
42,70 m |
|
Air draft |
Lightship: 29,90 m Normal ballast: 34,60 m At loaded summer deadweight: 32,40 m |
|
Freeboard |
Summer: 3.363 mm Winter: 3.578 mm Lightship: 10.863 mm |
|
Depth |
13,65 m moulded |
|
Speed |
14,5 knots |
|
Built |
2002 |
|
Keel laid |
18/09/2000 |
|
Launch date |
19/04/2001 |
|
Delivery date |
18/10/2002 |
|
Builder |
Cantiere Navale Fratelli Orlando |
|
Yard number |
227 |
|
Hull material |
High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 8 Oil tight: 10 |
|
Main engine |
1x Wärtsilä 8L46C - 8 cylinder 460 x 580 mm combustion engine 8.400 kW at 500 rpm Manufacturer: Wärtsilä NSD Finlandia |
|
Propellers |
1x Controllable pitch propeller - 4 blades |
|
Shaft generator |
1x Marelli Motori 2.800 kW |
|
Generators |
23 Wärtsilä 8L20 main diesel generatorsets each 1.360 kW |
|
Bow thruster |
1x 1.000 kW / 1.360 bhp |
|
Number of cargo tanks |
30 |
|
Cargo tank capacity |
28.834,89 m³ 100% 28.258,19 m³ 98% |
|
Number of slop tanks |
1 |
|
Slop tank capacity |
646,15 m³ |
|
Segregations |
30 |
|
Pumps |
19x Framo centrifugal cargo pumps each 300 m³/h 11x Framo centrifugal cargo pumps each 200 m³/h 2x Centrifugal ballast pumps each 750 m³/h |
|
Number of tanks |
Ballast: 17 Lubricating oil: 11 Fuel oil: 7 Fresh water: 6 Sludge: 3 Diesel oil: 2 Chain: 1 Waste water: 1 Potable water: 1 |
|
Manifolds |
Bow to centre manifold: 84,95 m Stern to centre manifold: 85,20 m Distance bridge front to centre of manifold: 53,30 m Distance between cargo manifold centres: 800 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 50 mm Distance main deck to centre of manifold: 4.350 mm Spill tank grating to centre of manifold: 635 mm |
|
Tank capacities 100% |
Diesel oil: 136,87 m³ / 116,33 t Freshwater: 1.175,83 m³ Fuel oil: 1.294,36 m³ / 1.164,92 t Lube oil: 164,2 m³ / 147,78 t Tank ballast: 12.853,95 m³ / 13.188,15 t |
|
Lifting equipment |
2x Cranes - SWL 10,0 t each Port/Starboard midship |
|
Technical operator |
Marnavi Spa Plc |
|
Commercial operator |
Hansa Tankers |
|
Disponent owner |
Hansa Tankers |
|
Registered owner |
Marnavi Holland B.V. |
|
Latest data adjustment |
14 April 2018 |
