Westerschelde 12 June 2018 |
 |
 |
 |
 |
|||
| Westerschelde 25/12/17 | Westerschelde 25/11/17 | Westerschelde 25/11/17 | Antwerpen 28/08/18 | |||
|
Name |

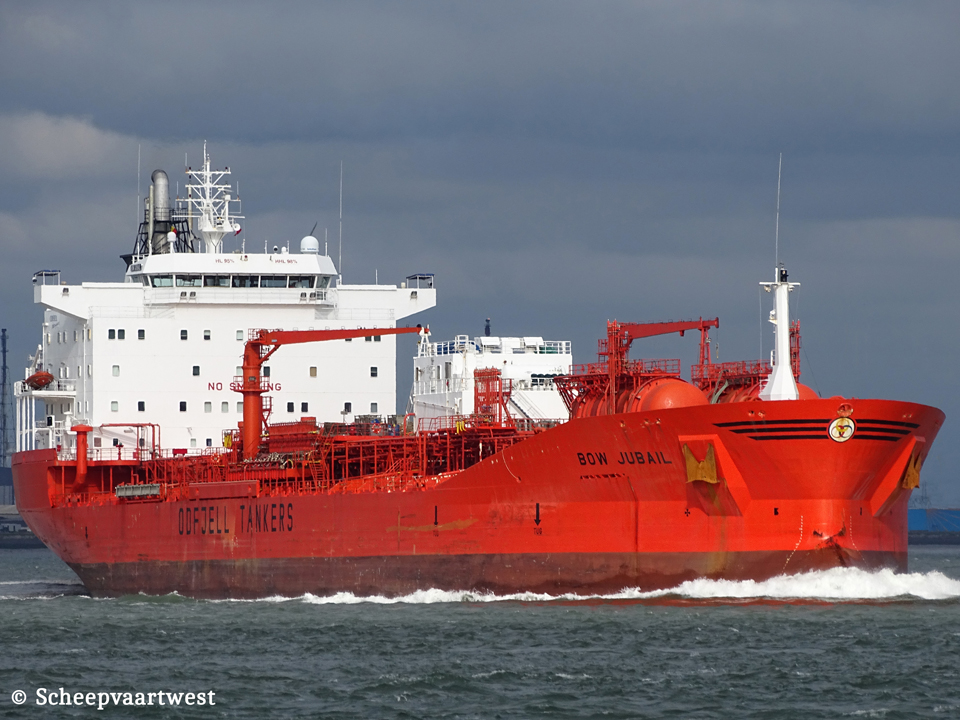

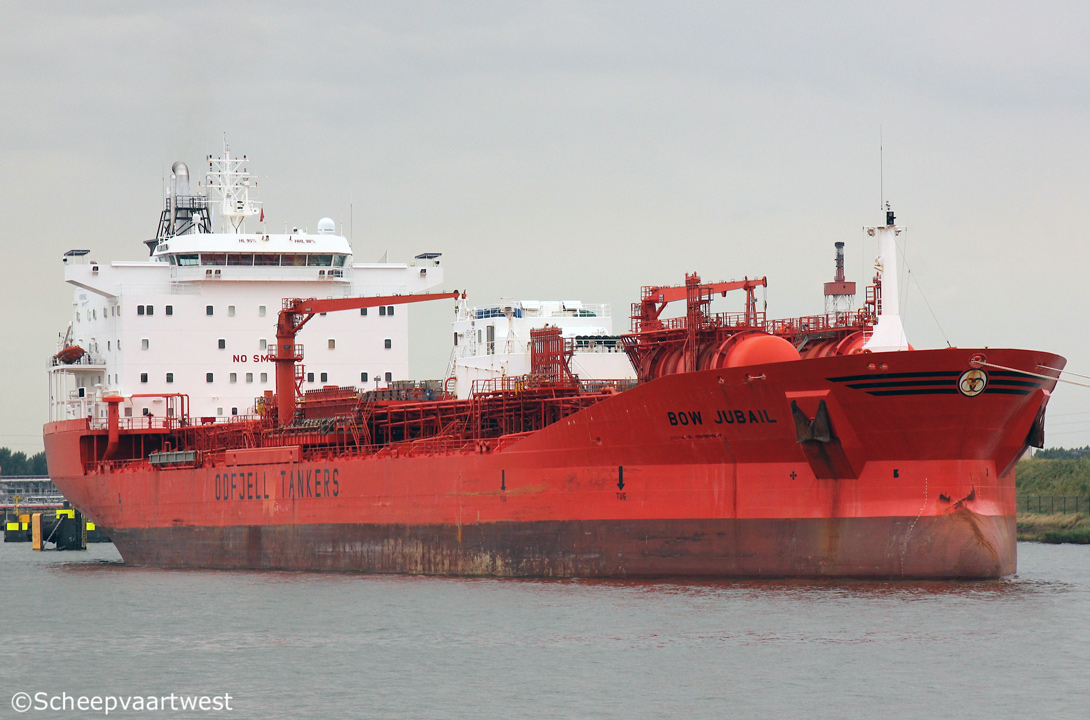

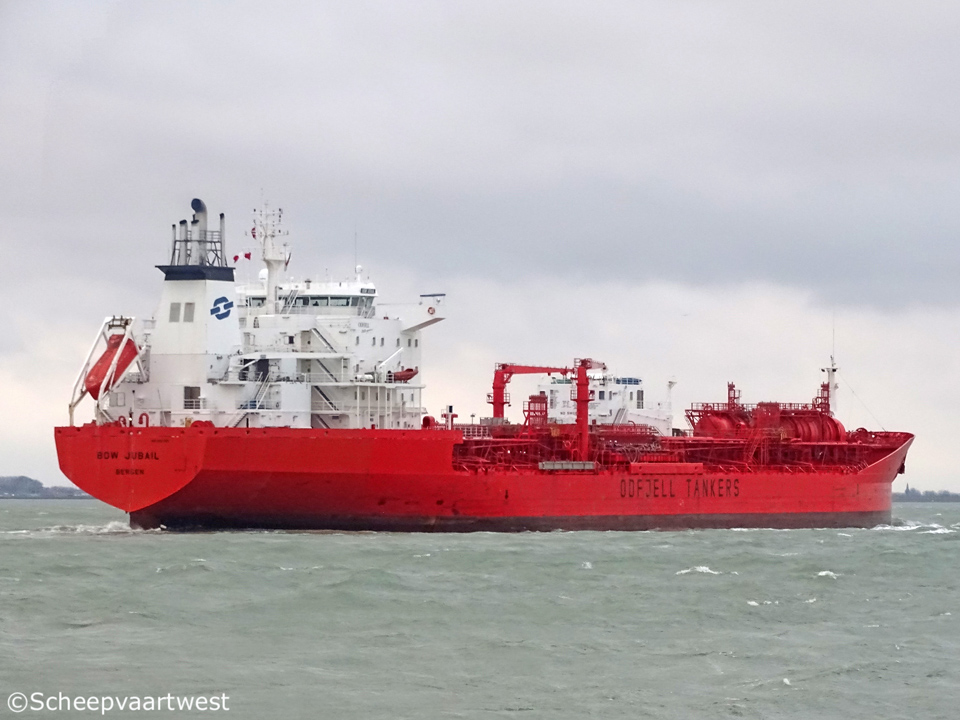

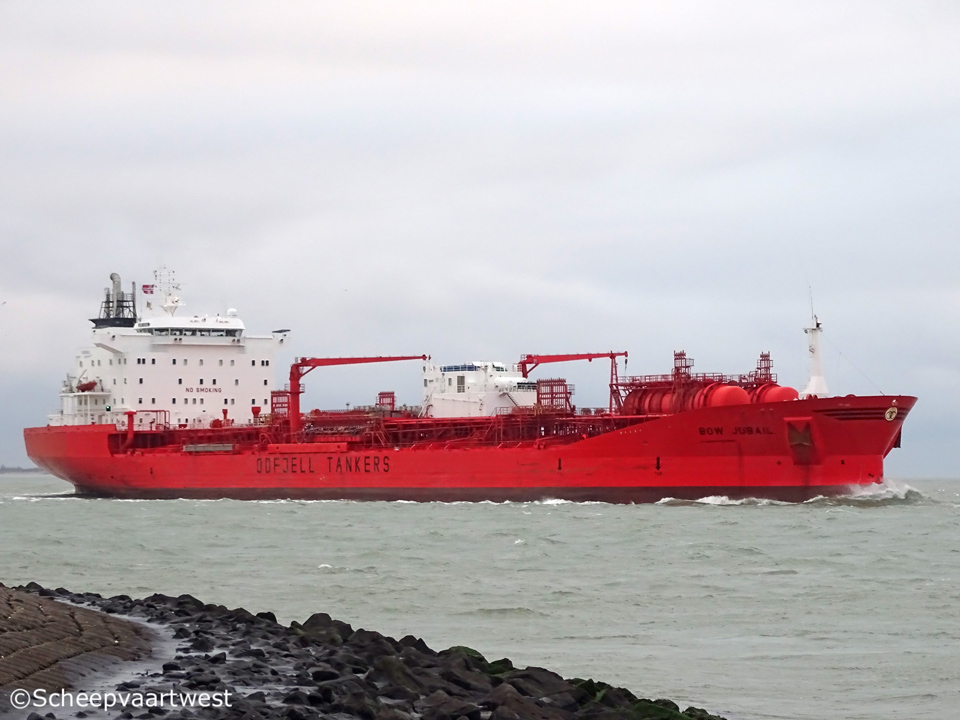

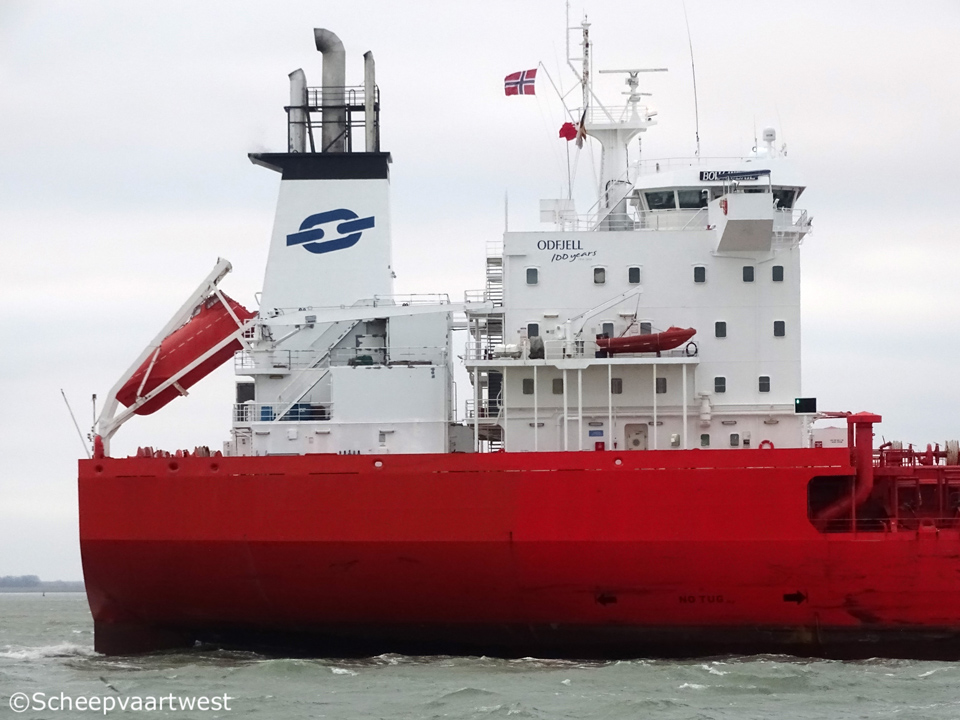

BOW JUBAIL |
|
Previous names |
1996 - 05/2009 NCC Jubail |
|
Type |
Tanker for chemicals & oil products |
|
IMO-number |
9087025 |
|
Call sign |
LAYZ4 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
23.196 t Suez: 23.389 m Panama: 23.481 t |
|
DWT |
Summer: 37.272 t |
|
NT |
12.176 t Suez: 20.616 t Panama: 17.622 t |
|
Light ship |
11.049 t |
|
Length |
183,10 m overall 176,90 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
10,72 m |
|
Keel to mast end |
43,05 m |
|
Depth |
14,00 m |
|
Speed |
14,3 knots |
|
Built |
1996 |
|
Keel laid |
09/01/1996 |
|
Launch date |
03/07/1996 |
|
Date of completion |
25/10/1996 |
|
Builder |
Kværner Florø AS (STX Norway) Floro Norway |
|
Yard number |
133 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side with top wing |
|
Bulkheads |
Transverse: 7 |
|
Number of decks |
1 |
|
Main engine |
1X MAN B&W 6L60MC - 6 cylinder combustion engine 11.624 kW |
|
Propellers |
1x Ulstein controllable pitch propeller |
|
Boilers |
2x Auxiliary boiler, oil/gas fired AQ9 1x Auxiliary boiler, exhaust gas heated AV-6N |
|
Generators |
3x MAN B&W 6L28/32H main diesel generatorsets |
|
Emergency generator |
1x Volvo TMD 122A diesel generatorset |
|
Number of cargo tanks |
52 |
|
Cargo tank capacity 98% |
Total centre tanks: 22.049 m³ Total wing tanks: 18.126 m³ Grand total: 40.775 m³ |
|
Number of segregations |
52 |
|
Manifolds |
Summer draft to manifold: 5,60 m Rail to manifold: 4,50 m Bow to manifold: 93,00 m |
|
Tank capacities |
Ballast: 15.438,1 m³ |
|
Manager |
Odfjell Management AS Conrad Mohrsv. 29 5892 Bergen Norway |
|
Registered owner |
National Chemical Carriers Ltd. Co. Bergen Norway |
|
Renamed |
06/2019 - 11/2019 NCC Jubail Saudi Arabia - Call sign: HZCE |
|
Scrapped |
18/12/19 Beached at Alang - India |
|
Latest data adjustment |
27 December 2022 |
