Antwerpen 11 September 2018 |
 |
| Antwerpen 06/04/18 |
|
Name |

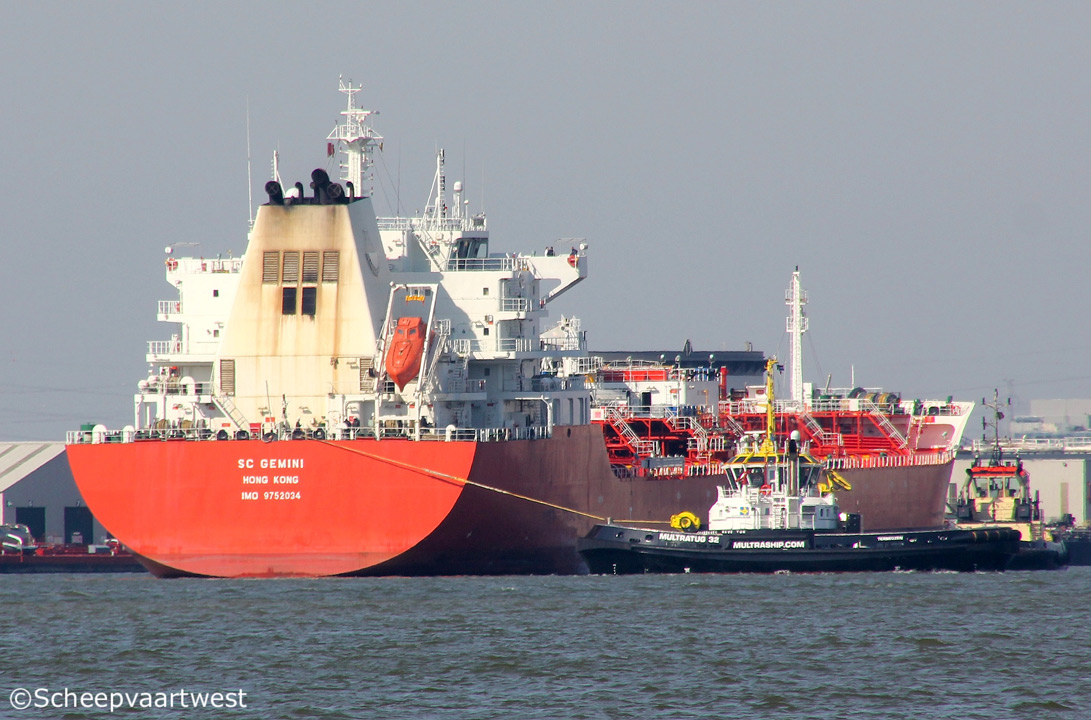

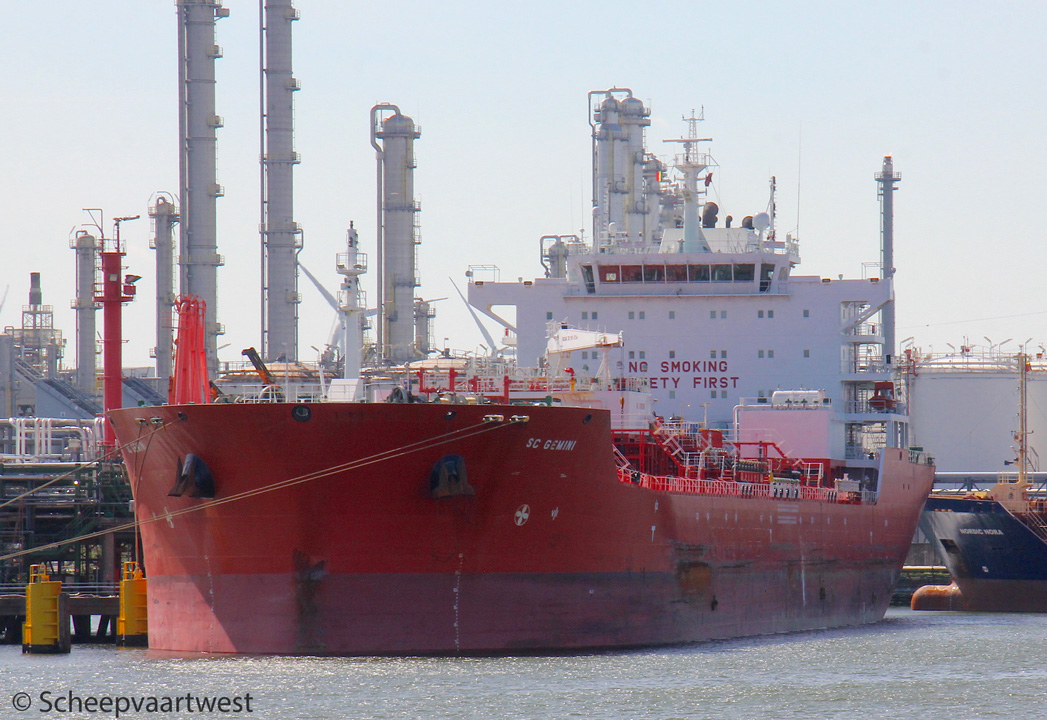

SC GEMINI |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9752034 |
|
Call sign |
VRQL7 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
26.364 t registered |
|
DWT |
40.895,41 t |
|
NT |
11.416 t registered |
|
Length |
182,80 m overall 177,00 m between perpendiculars |
|
Breadth |
32,02 m moulded |
|
Freeboard |
4.615 mm |
|
Depth |
15,70 m moulded |
|
Speed |
Service: 12,0 knots Max: 14,5 knots |
|
Built |
2017 |
|
Keel laid |
19/11/2015 |
|
Delivery date |
17/01/2017 |
|
Builder |
Jiangsu Nantong Ship Heavy Industry Co., Ltd. Nantong China |
|
Yard number |
HT-CT38-004 |
|
Hull material |
Forged steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
17 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hyundai 6S50ME-B9.5 - 2 stroke single acting 6 cylinder 500 x 1.910 mm combustion engine 7.610 kW / 10.347 hp at 104,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. - South Korea |
|
Propellers |
1x Fixed pitch propeller- aft at 104,0 rpm |
|
Boilers |
2x Auxiliary oil fired boiler - 8,5 bar Manufacturer: Miura Co., Ltd. - Japan 1x Auxiliary composite boiler - 8,0 bar Manufacturer: Jiangyin Sanjie Industry Co., Ltd. |
|
Generators |
3x Yanmar 6EY22ALW - 4 stroke 6 cylinder 220 x 320 mm diesel engines each 1.100 kW coupled with generators each 1.000 kW - 450 Volt 60 Hz |
|
Bow thruster |
1x 1.084 kW / 1.474 bhp |
|
Number of cargo tanks |
30 |
|
Cargo tank capacity |
100%: 43.847,32 m³ 98%: 42.820 m³ |
|
Number of tanks |
Fuel oil: 13 Ballast: 13 Lubricating oil: 7 Fresh water: 6 Sludge :4 Waste water :3 Diesel oil: 3 Chain: 2 Sewage: 1 Hydraulic oil: 1 |
|
Tank capacities 100% |
Diesel Oil: 92,4 m³ Freshwater: 1.308,2 m³ Fuel Oil: 1.950,8 m³ Hydraulic Oil: 11,7 m³ Lube Oil: 152,2 m³ Tank Ballast: 15.448,3 m³ |
|
Number of -pumps |
16x Cargo pumps each 220 m³/h 14x Cargo pumps each 330 m³/h |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t 1x Hose handling crane - SWL 10,0 t 1x Provision monorail crane - SWL 4,0 t |
|
Manager |
Aoxing Shipmanagement Singapore Pte Ltd. 6 Temasek Boulevard, Suntec Tower 4 #22 04/05 Singapore, 038986 Republic of Singapore |
|
Operator |
Sinochem Shipping Co. Hainan Room 2606, 26th Floor, Jinmao Tower, 88, Shiji Dadao Pudong Xinqu Shanghai, 200121 China |
|
Registered owner |
FPG Shipholding Panama 33 S.A. |
|
Renamed |
2018 Bow Gemini Norway, Bergen - Call sign: LACQ6 Reg. owner: FPG Shipholding Panama 33 SA Manager: Odfjell Management AS - Norway |
|
Latest data adjustment |
14 July 2021 |
