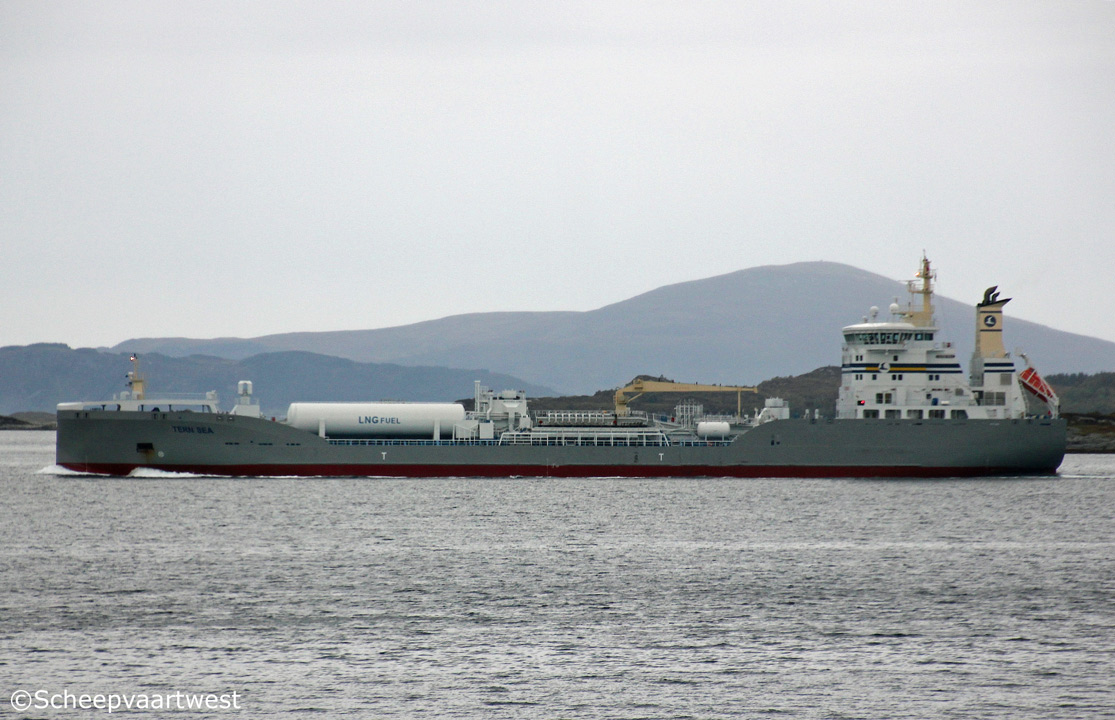

Tern Sea 01

Hjørundfjord, Norway 21 September 2017

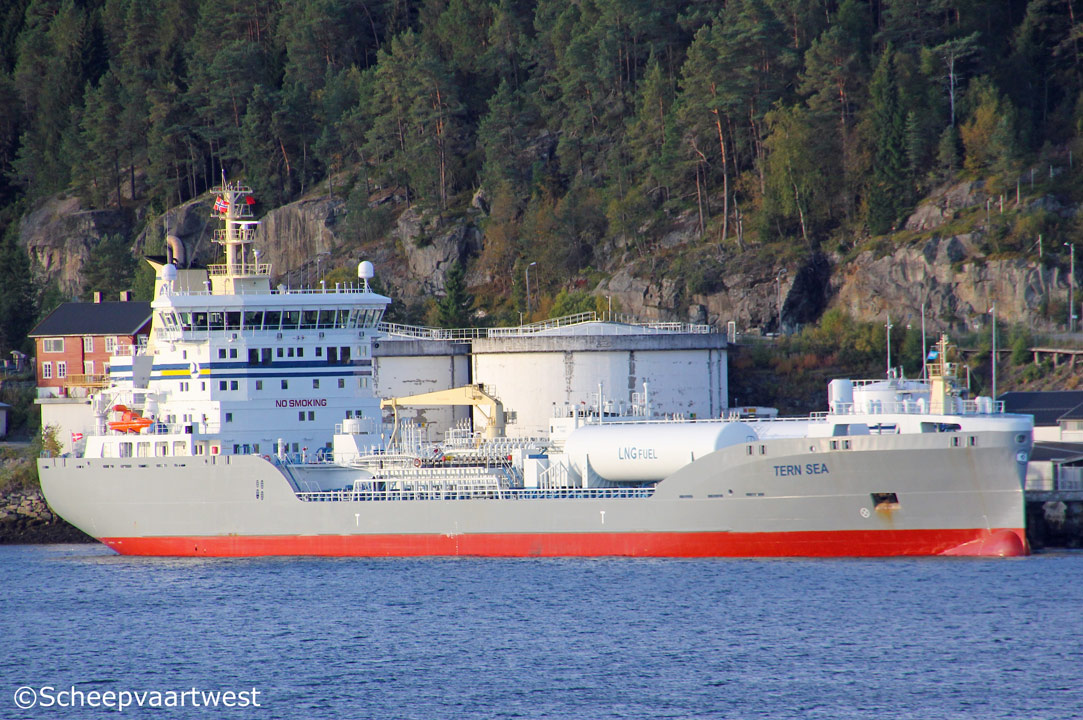

Tern Sea 03
Trondheim 22/09/17



Name

TERN SEA

Type

Tanker for chemicals & Oil products

IMO-number

9747974

Call sign

OYBD2

Flag

Denmark

Port of registry

Skagen

GT

11.374 t

DWT

14.878 t

NT

4.780 t

Length

147,00 m overall

143,50 m between perpendiculars

Breadth

22,00 m

Draught

9,0 m

Freeboard

2.711 mm

Depth

11,70 m moulded

Speed

14,5 knots

Built

2016

Keel laid

06.11.2015

Launch date

08.06.2016

Date of completion

15.11.2016

Builder

AVIC Dingheng Shipbuilding Co., Ltd.
Jiangdu
China

Yard number

AD0057

Hull material

Steel

Hull type

Double hull

Main engine

1x Wärtsilä/Yuchai 5RT-flex 50 DF - 2 stroke 5 cylinder 500 x 2.050 mm LNG dual-fuel combustion engine 5.850 kW / 7.948 hp at 102 rpm

Built: 15.03.2016

Builder: Yuchai Marine Power Co., Ltd., FuShan Industrial Park, DouMen District Zhuhai - China

Propellers

1x Screw propeller controllable pitch - aft at 102 rpm

Boilers

1x CHR Gesab 200.00 m² - 10,0 bar
1x CHR Gesab 50.20 m² - 10,0 bar
2x CHO Gesab 121.70 m²-/ 10,0 bar

Shaft generator

1x 900 kVA - 720 kW

Generators

3x Mitsubishi MAS 850-S main diesel generatorsets 988 kVA - 790 kW - 1.125 hp at 1.800 rpm / 60 Hz

Emergency generator

1x Diesel generatorset 250 kVA - 200 kW - 355 hp

Bow thruster

1x Tunnel thruster 1650 AUX CP - 865 kW 60Hz

Number of cargo tanks

16

Cargo tank capacity 98%

16.548 m³

Slop tank capacity

242 m³

Cargo pumps

Deepwell pumps type DW200/250 multi suction.

Frequency controlled 450 m³/h at 120 m.l.c.

Tank capacities

Ballast water tanks: 6.636 m³

Marine gas oil: 610 m³

LNG fuel storage tanks: 630 m³

Fresh water: 325 m³

Manager

Tärntank Ship Management AB
Donsö Hamnväg 24
430 82 Donsö
Sweden

Owner

Terntank Rederi A/S
Vestre Strandvej 10
9990 Skagen
Denmark

Registered owner

Tärntank Ship Management AB

Latest data adjustment

20 November 2017
