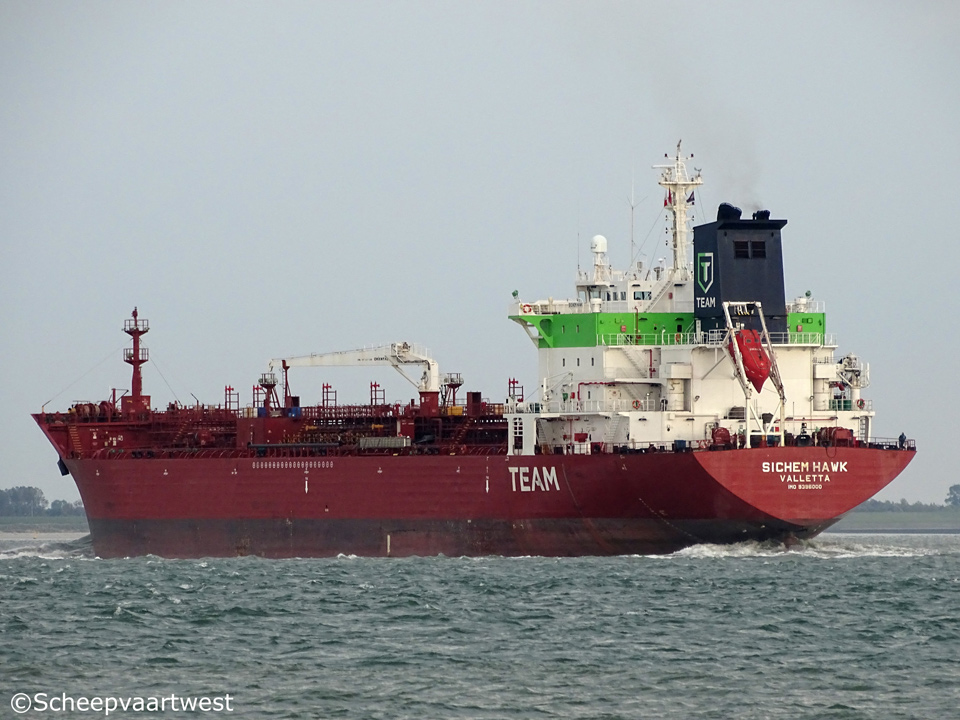

Sichem Hawk 02

Westerschelde 20 September 2017

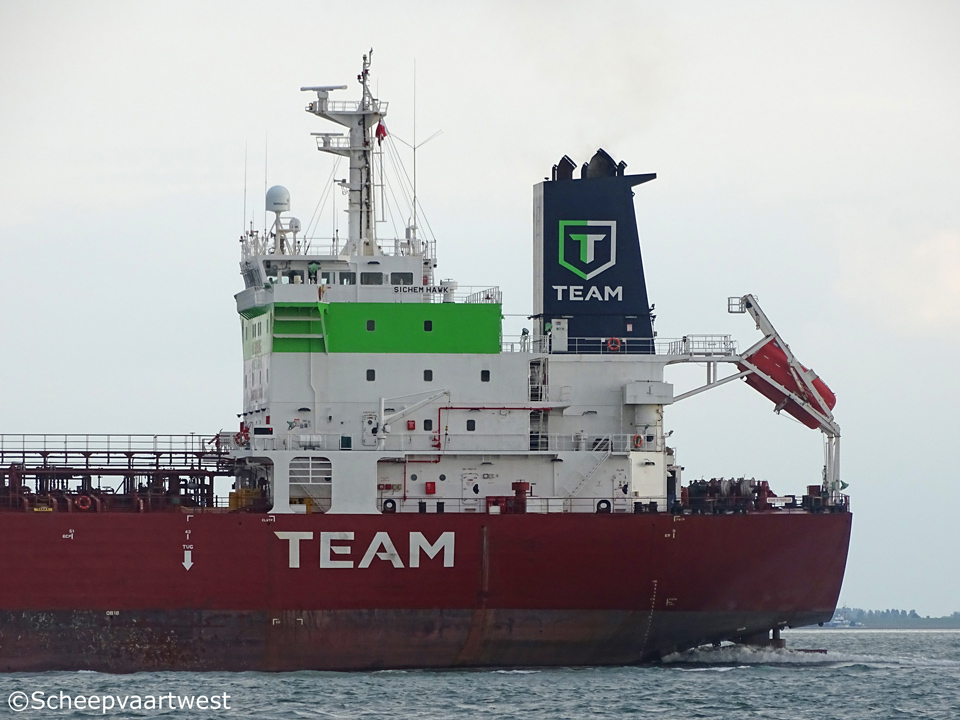

Sichem Hawk 01
Westerschelde 20/09/17


Name

SICHEM HAWK

Type

Chemical tanker & Oil products tanker

IMO-number

9396000

Call sign

9HSE9

Flag

Malta

Port of registry

Valletta

GT

17.822 t registered

Suez: 19.413,11 t

DWT

Summer: 25.385,49 t

NT

6.662 t registered

Panama: 14.903 t

Suez: 16.642,47 t

Length

170,10 m overall

161,00 m between perpendiculars

Breadth

26,23 m extreme

Draught

10,02 m

Freeboard

5.612 mm

Depth

15,60 m moulded

Speed

Max.: 19,3 knots

Service: 15,5 knots

Built

2008

Keel laid

14.05.2008

Launch date

31.07.2008

Delivery date

24.10.2008

Builder

Dae Sun Shipbuilding & Engineering Co., Ltd.
Pusan
South Korea

Yard number

SB473

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 4

Oil tight: 7

Continuous decks

1

Main engine

1x MAN B&W 6S46MC-C - 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW / 10.540 bhp at 129 rpm

Manufacturer: STX Engine Co., Ltd.(B&W), Changwon - South Korea

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler - 10,0 bar

1x Exhaust gas economizer - 13,07 bar

Manufacturer: Miura Protec Co., Ltd.

Generators

3x MAN B&W Holeby 6L23/30 main diesel each 960 kW 850 kW at 900 rpm coupled with generator Hyundai HFC7 508-84K each 850 KW

Manufacturer: HHI, Electro Electric Systems

Number of cargo tanks

14

Cargo tank capacity 100%

31.286,23 m³

Number of tanks

Ballast: 14

Fuel oil: 8

Lubricating oil: 8

Diesel oil: 7

Fresh water: 5

Chain: 2

Waste water: 2

Hydraulic oil: 1

Sludge: 1

Tank capacities 100%

Diesel Oil: 180,52 m³ / 155,24 t

Freshwater: 635,54 m³

Fuel Oil: 1.443,6 m³ / 1.414,72 t

Hydraulic Oil: 14,11 m³

Lube Oil: 134,47 m³ / 121,02 t

Tank Ballast: 13.723,76 m³ / 14.066,85 t

Lifting equipment

1x Cargo hose handling crane - SWL 10,0 t

1x Provision crane - SWL 2,2 t

Manufacture: Oriental Precision & Eng'g Co., Ltd.

1x Engine room overhead crane - SWL 2,0 t

Manufacture: Dae Kyung Co., Ltd.

Crew size

25

Commercial manager

Team Tankers International

Technical manager

V. Ships UK Ltd.

Operator

V. Ships UK Ltd.
The Skypark
8 Elliott Place
Glasgow, G3 8EP
United Kingdom

Registered owner

Team Tankers Deep Sea Ltd.

Latest data adjustment

06 November 2017
