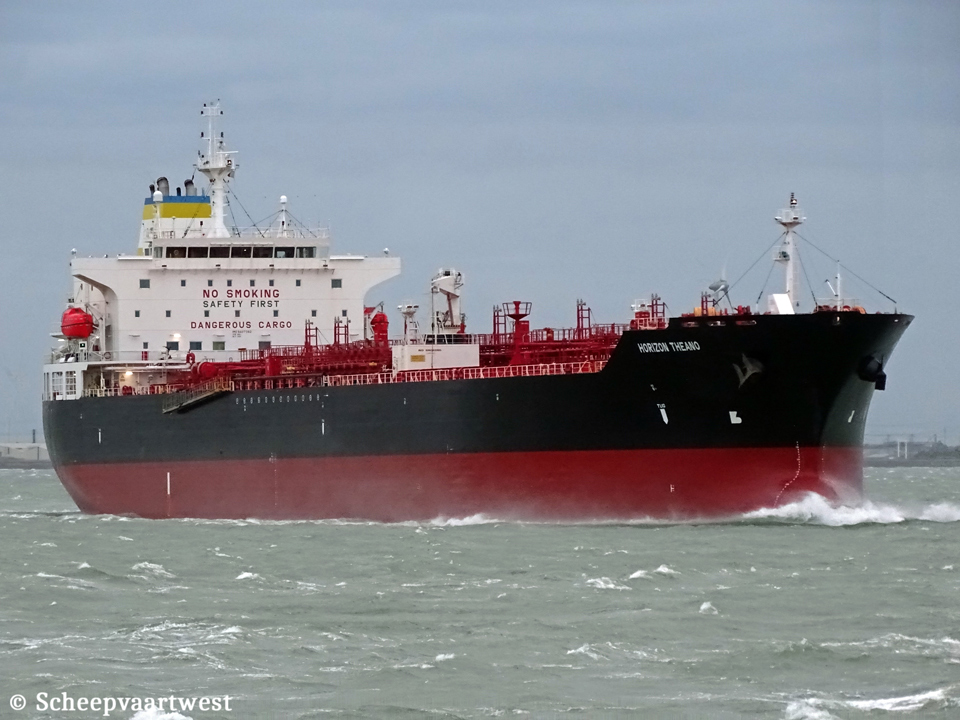

Horizon Theano IMO 9407392 02

Westerschelde 02 November 2019

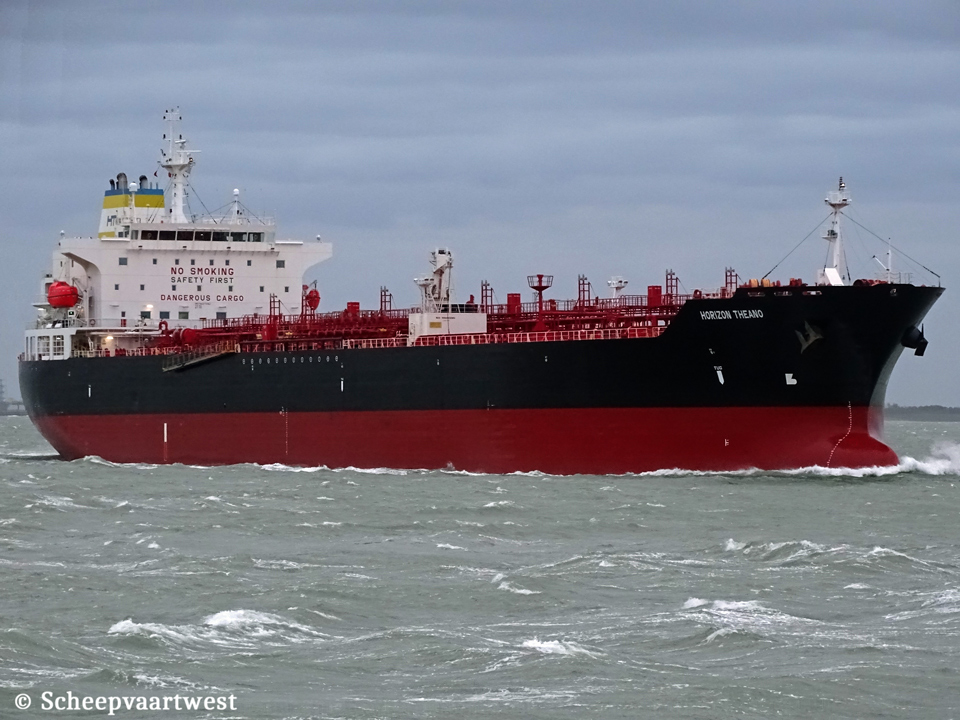

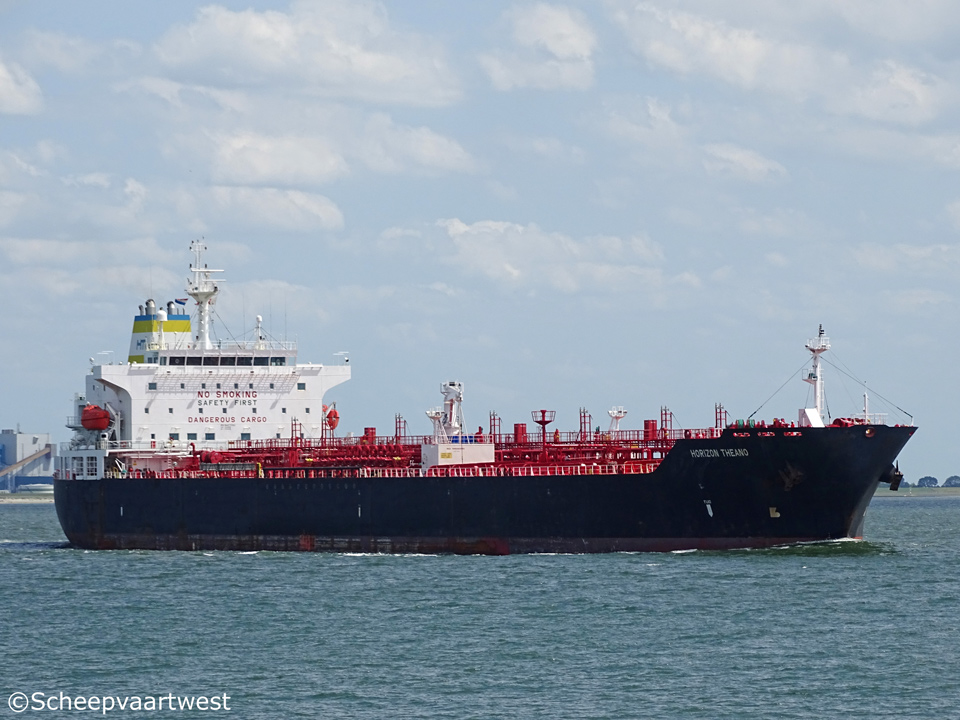

Horizon Theano IMO 9407392 03   Horizon Theano 01
Westerschelde 02/11/19   Westerschelde 27/07/17













Name

HORIZON THEANO

Type

Oil tanker /Chemical tanker

IMO-number

9407392

Call sign

A8SS4

Flag

Liberia

Port of registry

Monrovia

GT

29.828 t registered

Suez: 30.987,58 t

DWT

Summer: 49.999 t

Winter: 48.595 t

NT

13.429 t registered

Panama: 24.840 t

Suez: 26.624,41 t

Displacement

Summer: 60.644,23 t

Winter: 59.240,23 t

Length

183,09 m overall

174,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

Summer: 12,99 m

Winter: 12,74 m

Freeboard

Summer: 6.104 mm

Winter: 6.386 mm

Depth

19,10 m moulded

Keel to mast end

46,36 m

Air draft

Lightship: 43,70 m

Normal ballast: 38,94 m

At loaded summer deadweight: 34,30 m

Speed

14,9 knots

Built

2009

Keel laid

29/01/2009

Launch date

10/04/2009

Delivery date

29/05/2009

Builder

SPP Shipbuilding Co., Ltd.

537, Haeansaneop-Ro Sanam-Myeon, Sacheon-Si

Gyeongsangnam-Donam Do

South Korea

Yard number

H1023

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Non tight: 1

Water tight: 2

Oil tight: 8

Main engine

1x Doosan/MAN-B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1x Fixed propeller

Manufacturer: Sila Metal

Boilers

1x Auxiliary boiler Mission OL 20 T/H - 9,0 bar

1x Exhaust gas boiler Mission XW - 12,0 bar

Manufacturer: Aalborg Industries Co., Ltd.

Generators

3x Main diesel generatorsets each 900 kW

Manufacturer: Taiyo Electric Co. Ltd.

Number of cargo tanks

12

Number of segregations

7x Double valve incl. Slops

Cargo tank capacity 98%

COT 1 Port/Stbd: 6.149,712 m³

COT 2 Port/Stbd: 9.230,697 m³

COT 3 Port/Stbd: 9.411,991 m³

COT 4 Port/Stbd: 9.415,379 m³

COT 5 Port/Stbd: 9.402,987 m³

COT 6 Port/Stbd: 8.509,712 m³

Slops Port/Stbd: 1.401,831 m³

Total 52.120,478 m³

100%: 53.182,80 m³

Number of slop tanks

2

Sloptank capacity 98%

1.401,831 m³

Number of pumps

12x Framo cargo hydraulic driven deepwell pumps each 600 m³/h

2x Framo cargo hydraulic driven deepwell pumps each 300 m³/h

2x Framo cargo hydraulic driven centrifugal pumps each 750 m³/h

Manifolds

Bow to center manifold: 91,18 m

Stern to center manifold: 91,82 m

Distance bridge front to center of manifold: 59,24 m

Distance between cargo manifold centers: 2.000 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.600 mm

Top of rail to center of manifold: 700 mm

Distance main deck to center of manifold: 2.100 mm

Number of tanks

Ballast: 14

Fuel oil: 12

Lubricating oil: 10

Diesel oil: 7

Fresh water: 6

Sludge: 4

Chain: 2

Tank capacities

Diesel Oil: 115,94 m³

Freshwater: 514,70 m³

Fuel Oil: 1.411,90 m³

Lube Oil: 150,37 m³

Tank Ballast: 23.027,13 m³

Lifting equipment

1x Electric provision crane - SWL 3,0 t

1x Engine room crane - SWL 2,5 t

1x Hose handling crane - SWL 10,0 t

Manufacture: Hae An Machinery Ind. Co., Ltd.

Manager

Horizon Tankers Ltd. SA.

Kaningos Street 24

Piraeus 185 34

Greece

Operator

Mi Europa Maritime Co.

Trust Company Complex

Ajeltake Road, Ajeltake Islands

Majuro, MH96960

Marshall Islands

Registered owner

Mi Europa Maritime Co.

Latest data adjustment

12 June 2021
