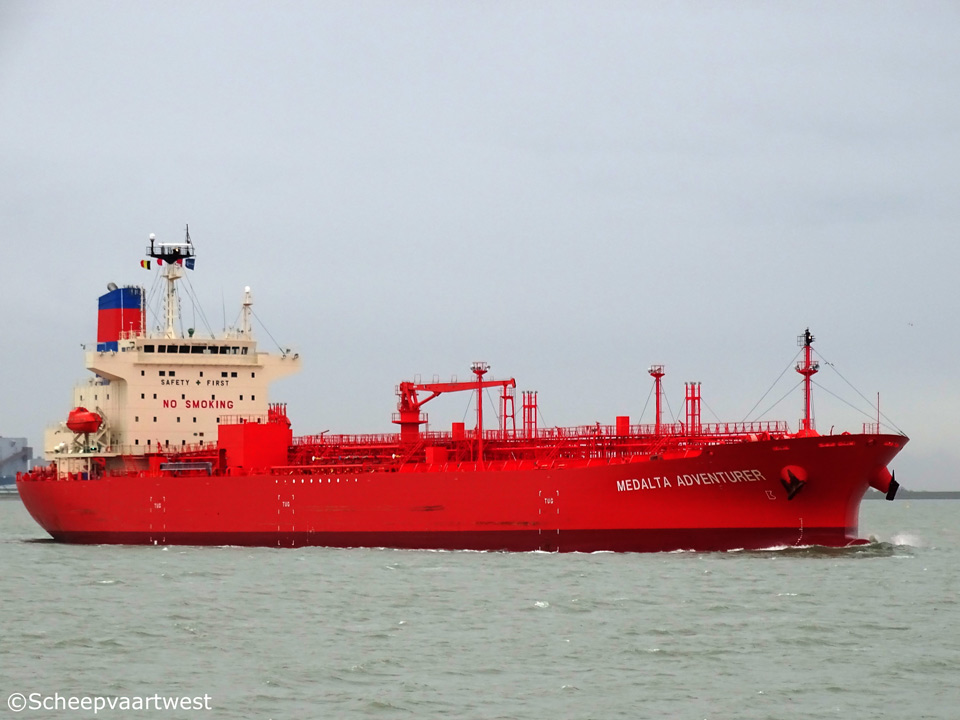

Medalta Adventurer 01

Westerschelde 11 December 2015

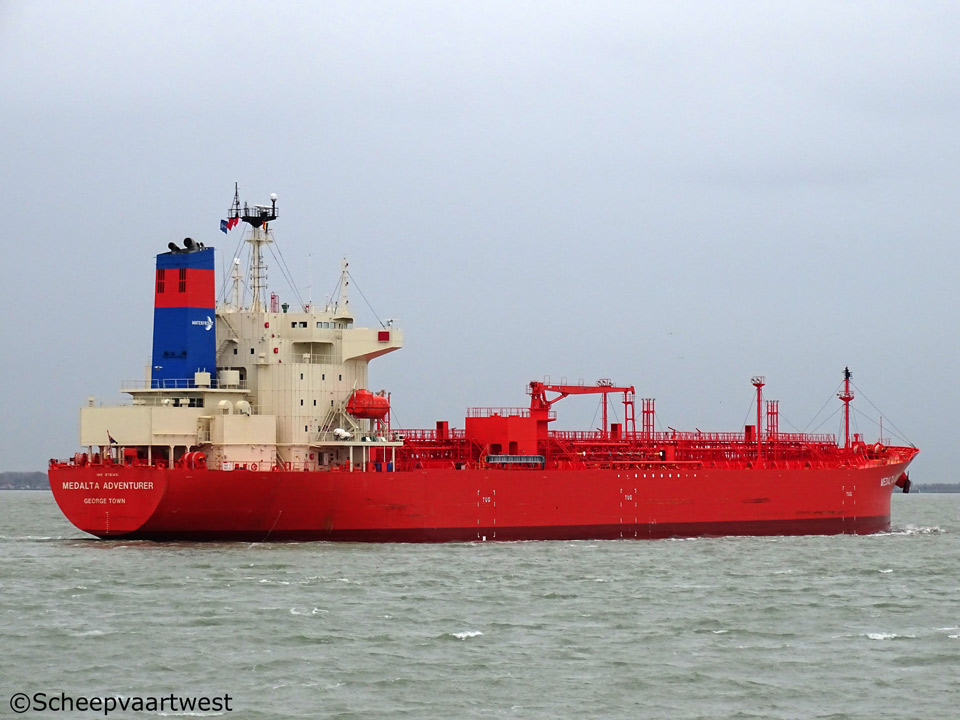

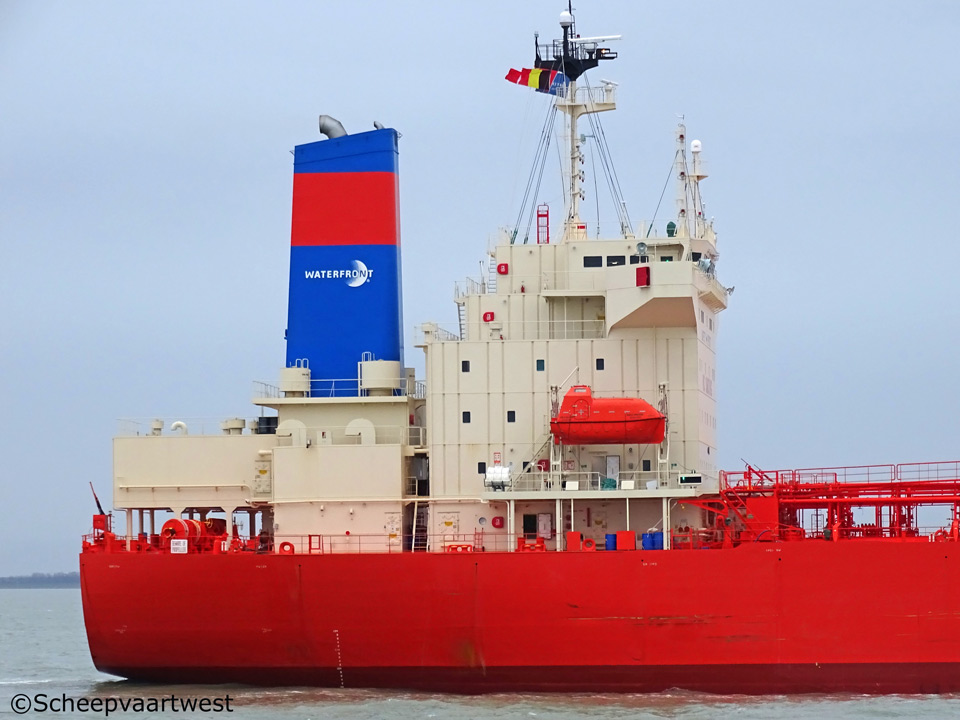

Medalta Adventurer 03   Medalta Adventurer 02
Westerschelde 11/12/15 Westerschelde 11/12/15


Name

MEDALTA ADVENTURER

Type

Chemical tanker

IMO-number

9761451

Call sign

ZGFB4

Flag

Cayman Islands

Port of registry

George Town

GT

21.117 t registered

DWT

Summer: 30.727 t

Winter: 29.839 t

NT

7.540 t registered

Suez: 18.449,32 t

Displacement

Summer: 39.058 t

Winter: 38.170 t

Length

175,00 m overall

Breadth

27,70 m moulded

Draught

Summer: 10,01 m

Winter: 9,80 m

Moulded L x B x D

166,70 x 27,70 x 16,00 m

Registered L x B x D

168,04 x 27,70 x 16,00 m

Air draft

37,19 m at SDWT condition

42,74 m at full ballast condition

Freeboard

Summer: 6.013 mm

Winter: 6.221 mm

Depth

16,00 m moulded

Speed

Service: 14,5 knots

Max.: 16,5 knots

Built

2015

Keel laid

22.08.2014

Launch date

22.01.2015

Date of completion

07.08.2015

Builder

Minaminippon Shipbuilding Co., Ltd. Ozai Plant
Ozai-Oita

Japan

Yard number

746

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W-Mitsui 6S50ME-C8 - 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine 7.230 kW at 108,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 500 mm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary vertical boiler - 7,8 bar

Evaporation: 13,70 t/h

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

4x Main diesel generatorsets each 770 kW

Number of tank

15

Cargo tank capacity 98%

Liquid: 34.881 m³

Number of slop tanks

2

Number of pumps

17x Centrifugal pumps

Tank capacities

Fuel oil: 1.797 m³

Fresh water: 363 m³

Manager

MOL Tankship Management (Europe) Ltd.

Operator

Waterfront Shipping Company Ltd.
1800 Waterfront Centre
200 Burrard Street
Vancouver, BC
V6C 3M1
Canada

Registered owner

FGL Minuet Panama S.A.

Latest data adjustment

27 April 2017
