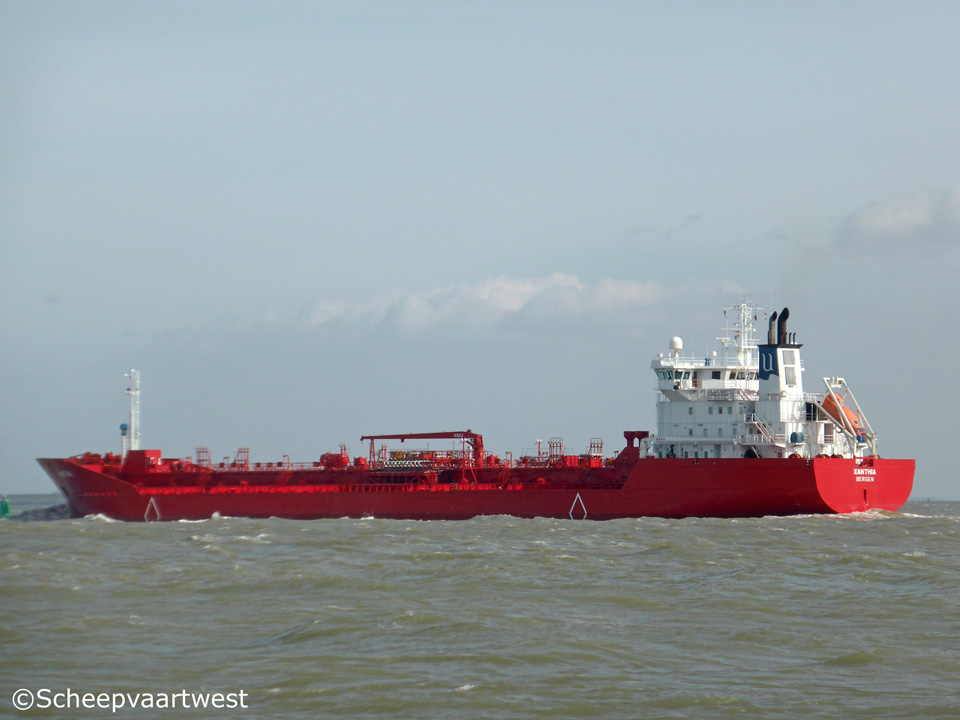

Xanthia 01

Westerschelde 30 March 2015



Name

XANTHIA

Type

Tanker for oil and chemicals

IMO-number

9246152

Call sign

LAUR5

Flag

Norway

Port of registry

Bergen

DWT

10.578 t

NT

Summer: 17.031 t

Number of 20ft containers

5.364 t

Length

147,30 m overall

138,60 m between perpendiculars

Breadth

22,44 m extreme

22,00 m moulded

Draught

8,75 m

Freeboard

2.763 mm

Depth

11,50 m

Speed

16,0 knots

Built

2003

Keel laid

28.02.2002

Launch date

05.01.2003

Date of completion

28.02.2003

Builder

Aker Aukra AS
Aukra
Norway

Yard number

108

Hull material

Steel

Hull type

Double hull

Main engine

1x MaK 8M43 - 8 cylinder diesel engine 7.200 kW

Builder: Caterpillar Motoren GmbH & Co. KG

Propellers

1x Rolls Royce controllable pitch propeller

Boilers

1x Auxiliary boiler, oil/gas fired P (Steam production) AQ-9

1x Auxiliary boiler, exhaust gas heated AQ-2

Builder: Ålborg

Generators

4x Volvo Penta TAMD 165A main diesel generatorsets

Emergency generator

1x Volvo Penta TAMD 74A diesel generatorset

Bow thruster

1x 735 kW

Cargo tank capacity 98%

17.829 m³

Tank capacities

Ballast capacity: 7.412,1 m³

Lifting equipment

Length: 550,00 m

Diameter: 54 mm

Manager

Utkilen AS
Strandgaten 197
5004 Bergen
Norway

Registered owner

Utkilen Shipinvest KS

Latest data adjustment

22 March 2017
