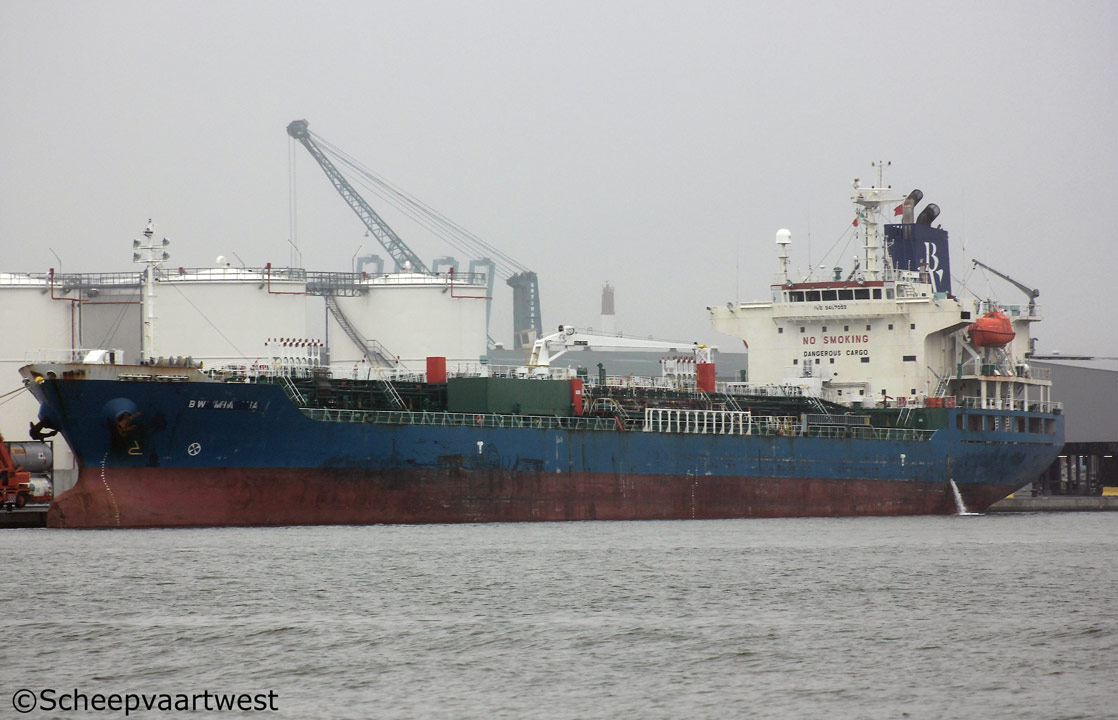

BW Mia 01

Antwerpen 06 November 2014



Name

BW MIA

Previous names

2008 - 07/2011 Golden Mia

07/2001 - 06/2014 Stream Mia

Type

Oil & Chemical tanker

IMO-number

9407093

Call sign

2HNX2

Flag

Isle Of Man - United Kingdom

Port of registry

Douglas

Previous flags

2008 - 2011 Republic of Panama, Panama City - Call sign: 3ETA2

2011 - 2014 Marshall Island, Majuro - Call sign: V7WN9

GT

11.645 t registered

DWT

Summer: 19.702,15 t

NT

6.326 t registered

Length

144,03 m

Breadth

24,20 m moulded

Draught

Summer: 9,59 m

Moulded L x B x D

136,00 x 24,20 x 12,80 m

Registered L x B x D

136,41 x 24,19 x 12,80 m

Keel to mast end

37,20 m

Freeboard

Summer: 3.245 mm

Depth

12,80 m moulded

Speed

Max.: 16,1 knots

Service: 14,0 knots

Built

2008

Keel laid

06/03/2008

Launch date

13/06/2008

Date of completion

09/09/2008

Builder

Fukuoka Shipbuilding Nagasaki Yard Co., Ltd.

Nagasaki

Japan

Yard number

2019

Hull material

Steel

Hull type

Double hull

Main engine

1x Mitsubishi 7UEC45LA - 2 stroke single acting 7 cylinder 450 x 1.350 mm combustion engine 6.230 kW / 8.470 hp at 158 rpm

Manufacturer: Akasaka Diesels Ltd.,Shizuoka - Japan

Propeller shaft

1x Sea water lubrication shaft

Diameter: 410 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 9,3 bar

Evaporation: 18,90 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generators - 1.935 kVA

Bow thruster

1x 641 kW

Number of tanks

26 + 2 slop tanks

Cargo tank capacity

Liquid: 22.094 m³

Number of pumps

12x Cargo pumps each 300 m³/h

14x Cargo pumps each 200 m³/h

Tank capacities

Fuel oil: 1.279 m²

Fresh water: 893 m³

Manager

Thome Shipmanagement Pte. Ltd.

Republic of Singapore

Registered owner

BW Gas Cyprus Limited

Renamed

2019 Chem Mia

Liberia, Monrovia - Call sign: D5TG7

Owner: Chem Mia SA

Manager: Ace Quantum Chemical Tankers - The Netherlands

Latest data adjustment

14 August 2022
