Westerschelde 15 August 2016 |
 |
|
| Westerschelde 15/08/16 | |
|
Name |

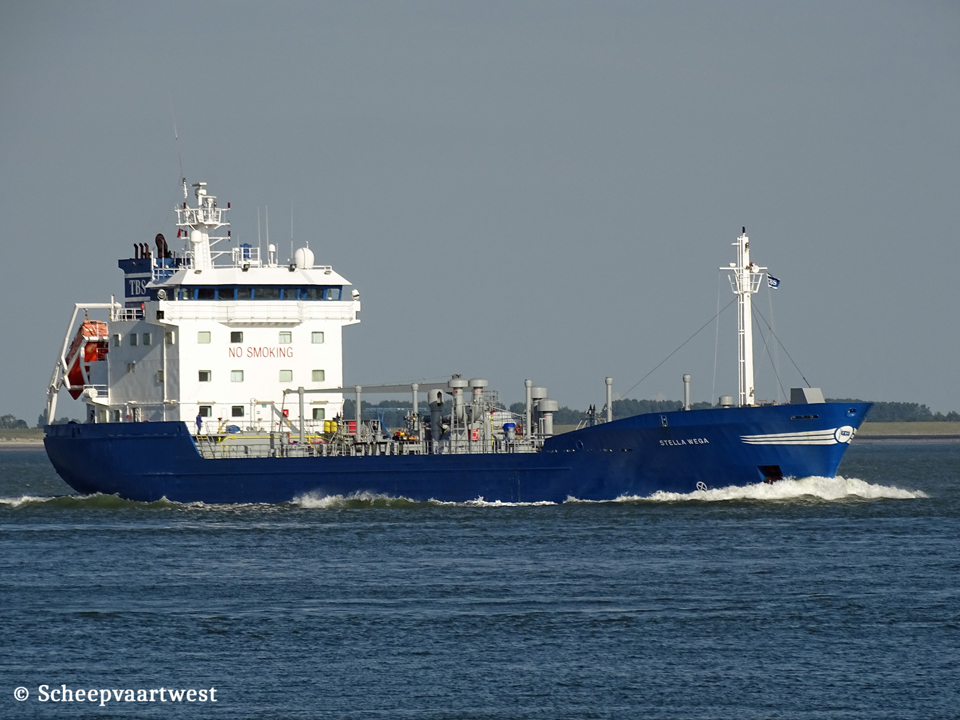

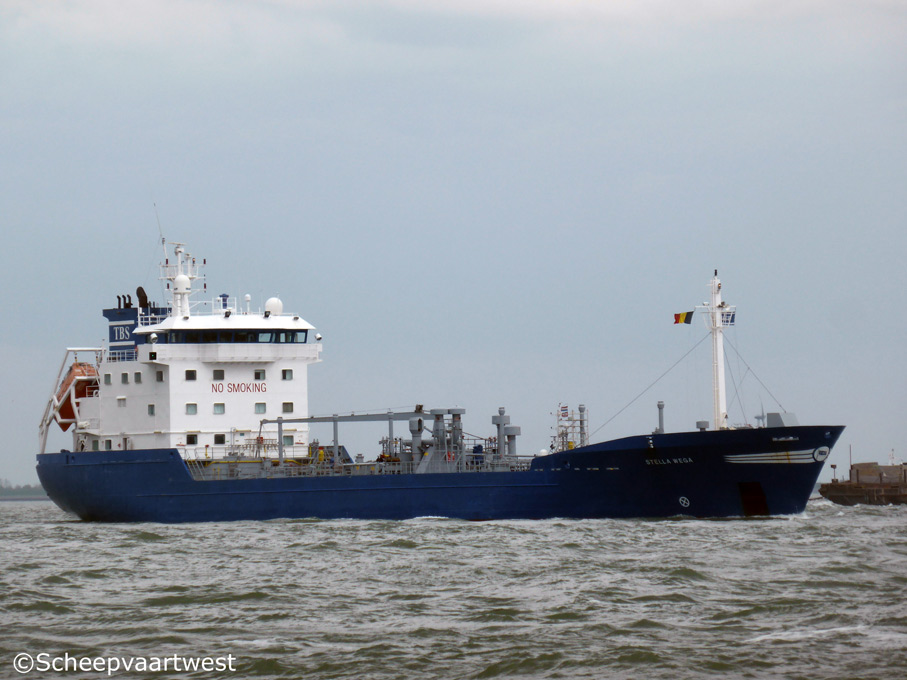

STELLA WEGA |
|
Type |
Bitumen tanker - Oil tanker - Asphalt carrier - Chemical tanker Closed loading system |
|
IMO-number |
9136113 |
|
Call sign |
PHHQ |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
3.983 t |
|
DWT |
Summer: 4.353 t |
|
NT |
1.194 t |
|
Length |
105,60 m overall 98,80 m between perpendiculars |
|
Breadth |
15,92 m |
|
Draught |
6,10 m |
|
Freeboard |
3.410 mm |
|
Depth |
9,40 m moulded |
|
Speed |
Service: 14,0 knots |
|
Built |
1996 |
|
Launch date |
28/03/1996 |
|
Date of completion |
05/09/1996 |
|
Builder |
N.V. Scheepswerf en Machinefabriek 'De Biesbosch' Dordrecht The Netherlands |
|
Yard number |
869 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Krupp-MaK 8M32 - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 3.521 kW / 4.787 hp at 600 rpm Built: 1996 Manufacturer: Krupp MaK Maschinenbau GmbH, Kiel - German Federal Republic |
|
Propellers |
1x Screw propeller controllable pitch - aft at 177 rpm |
|
Boilers |
2x CHM WIesloch 44,00 m² - 10,0 bar 1x CHR WIesloch 85,00 m² - 10,0 bar |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Shaft generator |
1x 450 kVA - 360 kW |
|
Generators |
3x Volvo Penta TAMD 162 C main diesel generatorsets 305 kVA - 244 kW - 530 hp |
|
Bow thruster |
1x Lips 300 kW |
|
Number of cargo tanks |
4x 2 wing tanks |
|
Cargo tank capacity 98% |
4.027 m³ |
|
Max. temp |
250°C |
|
Pumps |
2x Houttuin screw cargo pumps each 450 m³/h |
|
Manifolds |
Bow to centre manifold: 50,70 m |
|
Lifting equipment |
1x Crane - SWL 1,0 t @ 18,50 m |
|
Manager |
Tarbit Tankers B.V. Wolwevershaven 30 3300 AP Dordrecht The Netherlands |
|
Previous managers |
08/1996 - 03/2007 Rederij Theodora B.V., Rotterdam - The Netherlands |
|
Registered owner |
Ciconia B.V. Rotterdam The Netherlands |
|
Previous owners |
08.1996 - 1999 Rederij Theodora B.V., Rotterdam - The Netherlands |
|
Renamed |
01/2019 Global Rani 2019 - 2020 Republic of Panama, Panama City - Call sign: H9PS 2020 Cook Islands, Avatiu - Call sign: E5U3772 Manager: Global Ace Shipping Lines Inc., Mumbai (Bombay) - India Owner: Global Ace Shipping Lines Inc., Mumbai (Bombay) - India |
|
Latest data adjustment |
13 August 2023 |
