Westerschelde 04 August 2016 |
 |

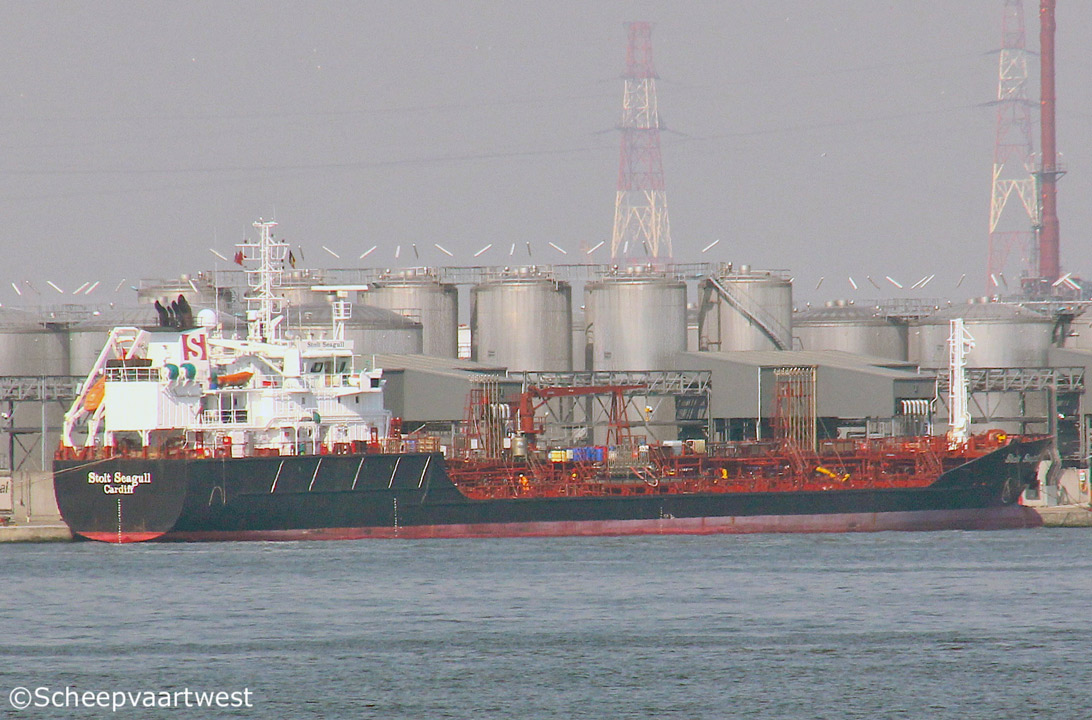

| Antwerpen 15/05/18 |
|
Name |
STOLT SEAGULL |
|
Previous names |
1997 - 2005 Multitank Brasilia 2005 - 05.2015 Bow Brasilia |
|
Type |
Chemical tanker |
|
IMO-number |
9125645 |
|
Call sign |
2ITA2 |
|
Flag |
United Kingdom |
|
Port of registry |
Cardiff |
|
Previous flags |
1997 - 1997 Germany 1997 - 2010 Liberia 2010 - 2015 Norway, Bergen - Call sign: LAJQ7 2015 - 2015 Portugal |
|
GT |
3.726 t Suez: 4.082 t |
|
DWT |
Summer: 5.800 t |
|
NT |
1.673 t Suez: 3.023 t |
|
Light ship |
2.489 t |
|
Length |
99,99 m overall 94,90 m between perpendiculars |
|
Breadth |
16,74 m |
|
Draught |
6,79 m |
|
Keel to mast |
29,10 m |
|
Forecastle |
7,80 m |
|
Poop |
24,05 m |
|
Speed |
13,6 knots |
|
Built |
1997 |
|
Keel laid |
18.07.1996 |
|
Launch date |
12.10.1996 |
|
Date of completion |
06.06.1997 |
|
Builder |
ENVC - Estaleiros Navais de Viana do Castelo, S.A. |
|
Yard number |
191 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 7 S 35 MC - 2 stroke 7 cylinder 350 x 1.400 mm diesel engine - 4.165 kW at 145 rpm Year of manufacture: 1995 Manufacturer: MAN B&W Diesel A/S Frederikshavn |
|
Propellers |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Thermal oil heater, exhaust heated 2x Thermal oil heater, oil fired |
|
Electric installations |
2x Plant 380/220 V - 790 kVA 1x Plant 380 V - 688 kVA 1x Plant 380 V - 103 kVA |
|
Shaft generator |
1x 688 kVA |
|
Generators |
2x Caterpillar 3508 DITA diesel generatorsets each 790 kVA |
|
Batteries |
1x Caterpillar 3304 DITA diesel generatorset 103 kVA |
|
Compressed air receivers |
1x Receiver 1.000 litres - 30,0 bar 2x Receivers each 500 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar 1x Receiver 80 litres - 30,0 bar 2x Receivers each 1.000 litres - 8,0 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 300 kW, forward |
|
Number of cargo tanks |
20 |
|
Liquid cargo capacity 98% |
5.948 m³ |
|
Manifolds |
Summer draft to manifold: 3,62 m Rail to manifold: 3,15 m Bow to manifold: 50,73 m |
|
Tank capacities |
Fuel oil: 363 m³ Ballast water: 2.439,1 m³ |
|
Anchor equipment |
3x Anchors weight each 2640 kg Chain length: 467,50 m Diameter: 40 mm |
|
Manager |
Stolt Tankers B.V. |
|
Operator |
SNIES - Stolt-Nielsen Inter-Europe Service |
|
Owner |
Stolt Seagull B.V. |
|
Previous owners |
1997 - 1997 Tankreederei Ahrenkiel GmbH 1997 - 2005 Partenreederei MT "Multitank Brasilia" 2005 - 2010 Odfjell Chemical Tankers (Germany) GmbH 2010 - 2015 Bernhard Schulte Shipmanagement (Deutschland) GmbH & Co. KG 2015 - 2015 Odfjell Chemical Tankers AS |
|
Latest data adjustment |
10 September 2016 |
