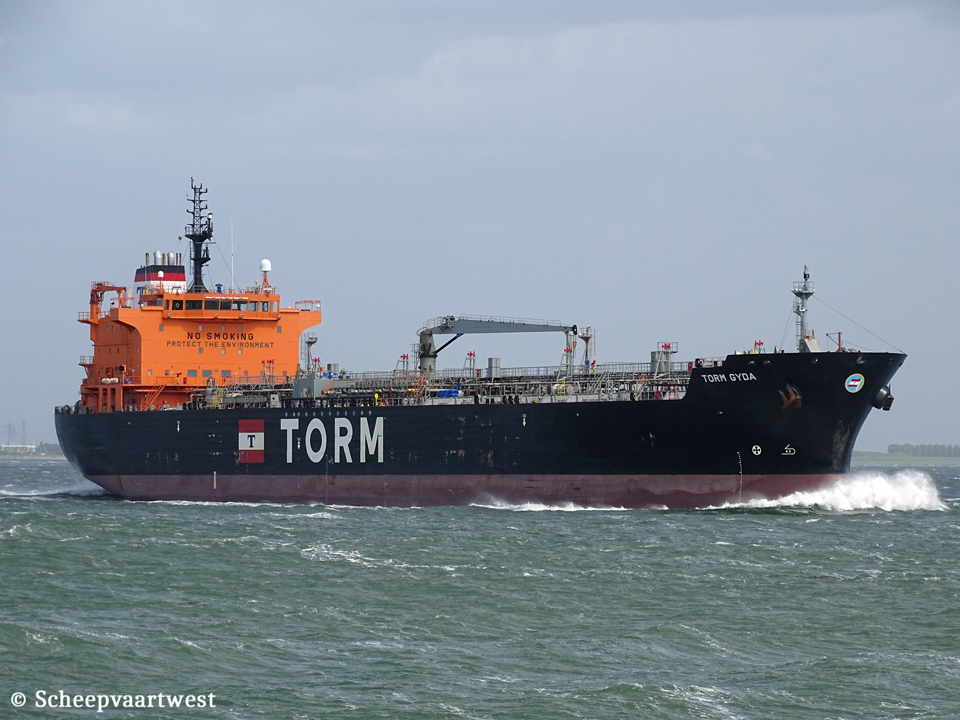

Westerschelde 23 May 2020 |
 |

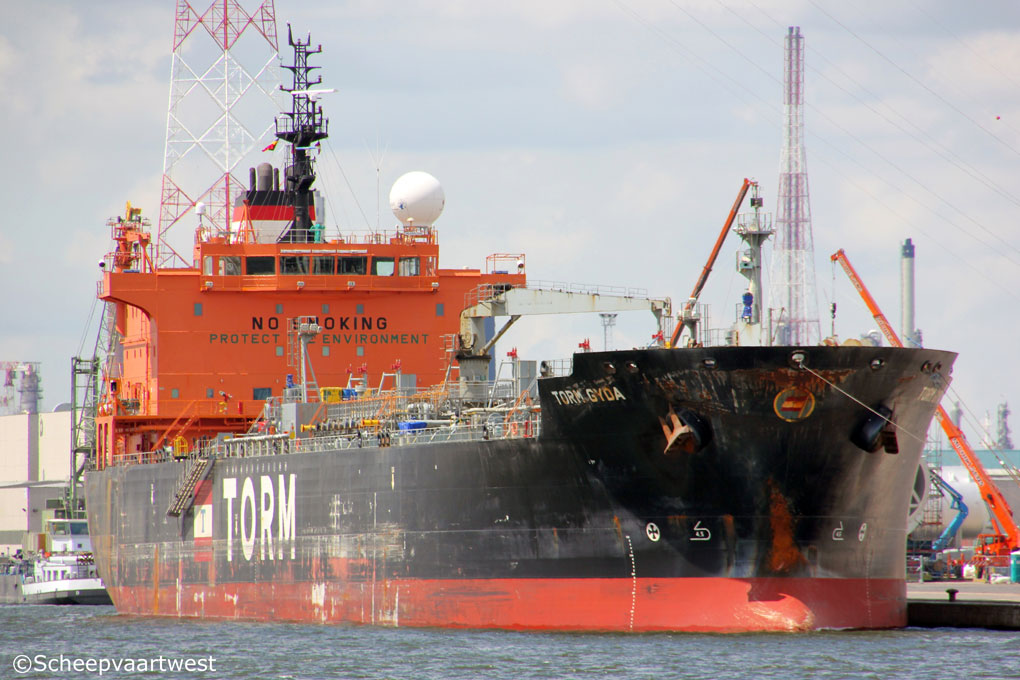

| Antwerpen 14/07/16 |
|
Name |
TORM GYDA |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9425502 |
|
Call sign |
OWDP2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
GT |
23.332 t Suez: 24.511 |
|
DWT |
Summer: 36.207 t |
|
NT |
9.625 t Suez: 19.327 t |
|
Length |
184,32 m overall 176,02 m between perpendiculars |
|
Breadth |
27,43 m extreme |
|
Draught |
11,30 m |
|
Keel to mast end |
44,53 m |
|
Air draft |
41,89 m lightship 37,74 m Normal ballast 33,21 m At loaded summer deadweight |
|
Keel to masthead |
44,53 m |
|
Freeboard |
Summer: 5.914 mm Winter: 6.149 mm Lightship: 14.59 mm |
|
Depth |
17,20 m |
|
Speed |
14,0 knots |
|
Built |
2009 |
|
Keel laid |
02/10/2008 |
|
Launch date |
05/12/2008 |
|
Date of completion |
21/01/2009 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
2112 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side |
|
Main engine |
1x MAN-B&W 6S50MC-C7 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm Manufacturer: Hyundai Engine & Machinery Co., Ltd.(B&W), Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
Auxiliary boiler, exhaust gas heated Auxiliary boiler, oil/gas fired Manufacturer: Aalborg Industries, Aalborg - Denmark |
|
Generators |
3x Hyundai Himsen 5H21/32 diesel generatorsets each 720 kW Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Emergency generator |
1x Cummins diesel generatorset |
|
Bow thruster |
1x 900 bhp |
|
Number of tanks |
12 Capacity: 40758,92 m³ - 98% |
|
Cargo tank capacity 98% |
Seg#1: 5.063,46 m³ (1P & 1S) Seg#2: 7.138,20 m³ (2P & 2S) Seg#3: 7.272,18 m³ (3P & 3S) Seg#4: 7.272,18 m³ (4P & 4S) Seg#5: 7.272,18 m³ (5P & 5S) Seg#6: 6.740,70 m³ (6P & 6S) Seg#7: 1.051,42 m³ (Slop P & Slop S) |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
1.051,42 m³ |
|
Residual/Retention oil tank capacity 98% |
74,3 m³ |
|
Pumps |
10x Framo Type SD 200 Centrifugal, Submersible cargo pumps each 500 m³/h 2x Framo Type SD 150 Centrifugal, Submersible cargo pumps each 300 m³/h 2x Framo Type SD 125 Centrifugal, Submersible cargo pumps each 200 m³/h 1x Framo MA 150 Centrifugal cargo pumps each 100 m³/h 1x Framo TK 150 Centrifugal, Submersible cargo pumps each 100 m³/h 2x Framo SB 300 Centrifugal, Submersible cargo pumps each 750 m³/h |
|
Tank coating |
Cargo tanks: Epoxy- Hempel Hempadur Ballast tanks: Epoxy Slop tanks: Epoxy- Hempel Hempadur |
|
Manifolds |
Bow to centre manifold: 92,64 m Stern to centre manifold: 91,68 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.400 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 1.100 mm Distance main deck to centre of manifold: 2.100 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Ballast: 17.925,2 m³ Fuel oil: 1.131 m³ Gas oil: 180,44 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Technical operator |
Torm A/S Tuborg Havnevej 18 2900 Hellerup Denmark |
|
Commercial operator |
Torm A/S Tuborg Havnevej 18 2900 Hellerup Denmark |
|
Registered owner |
VesselCo 1 K/S c/o Torm A/S, Tuborg Havnevej 18 2900 Hellerup Denmark |
|
Disponent owner |
Torm A/S Tuborg Havnevej 18 2900 Hellerup Denmark |
|
Latest data adjustment |
11 January 2022 |
