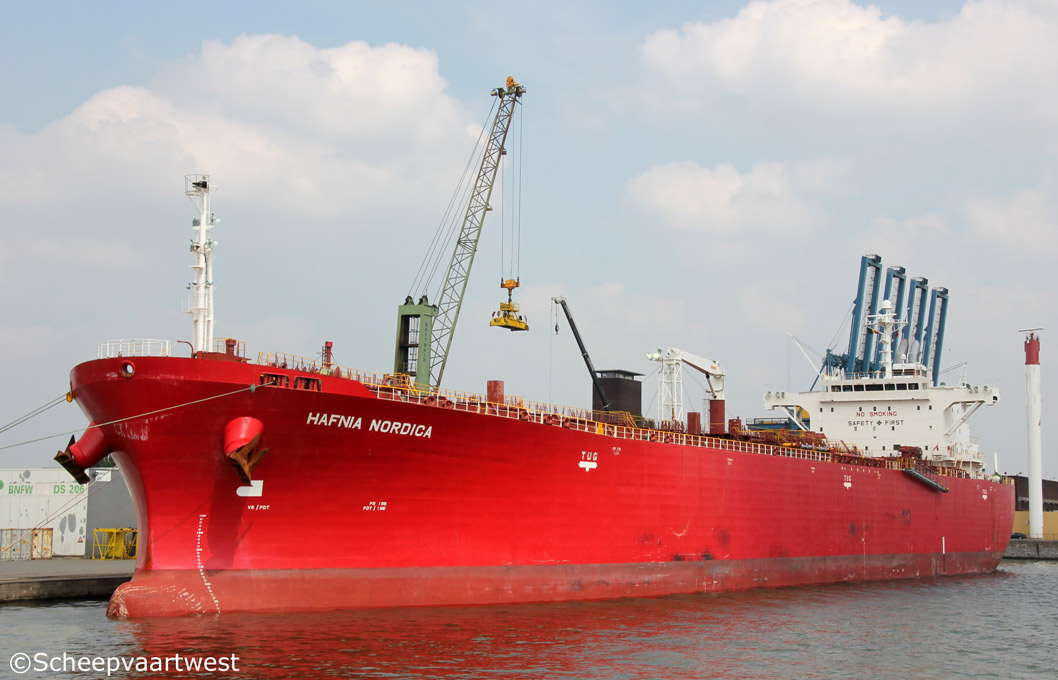

Hafnia Nordica 01

Antwerpen 26 May 2016

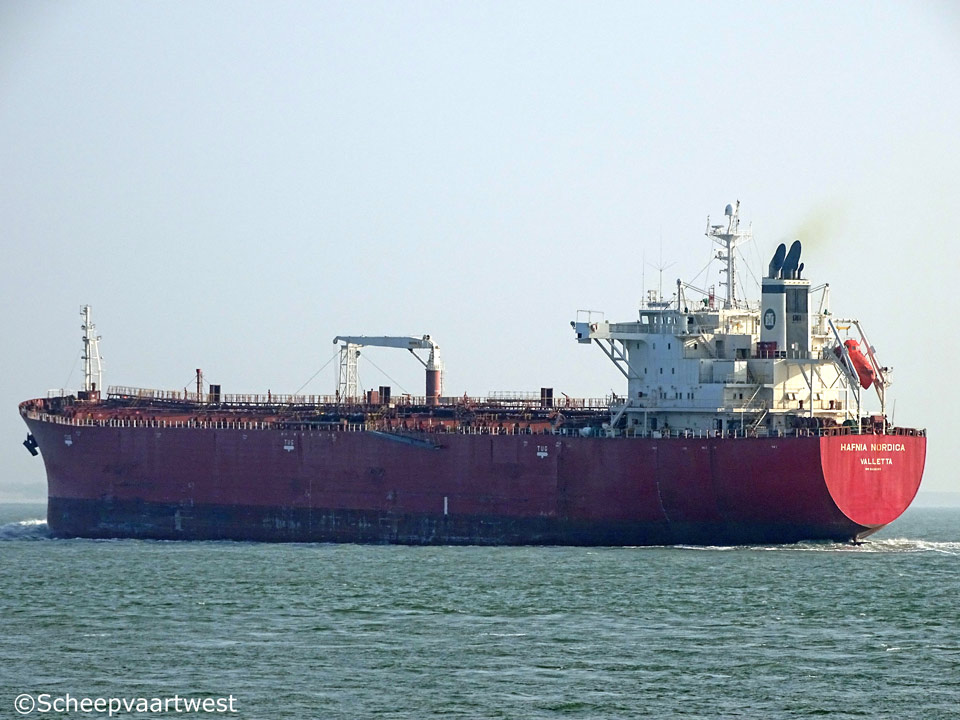

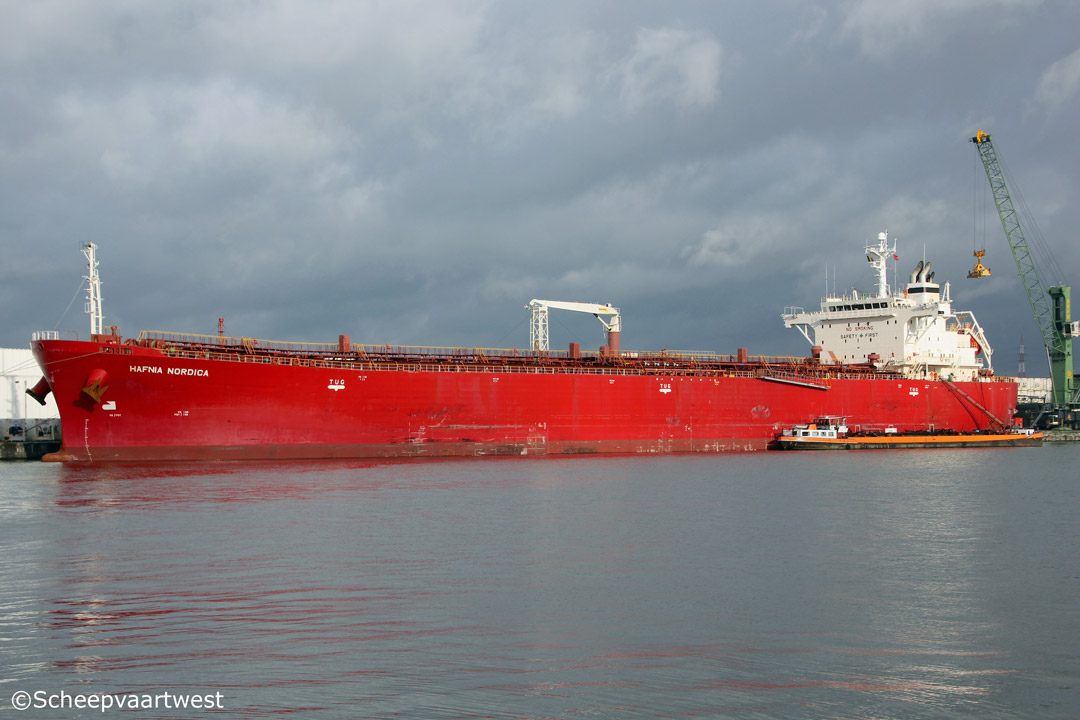

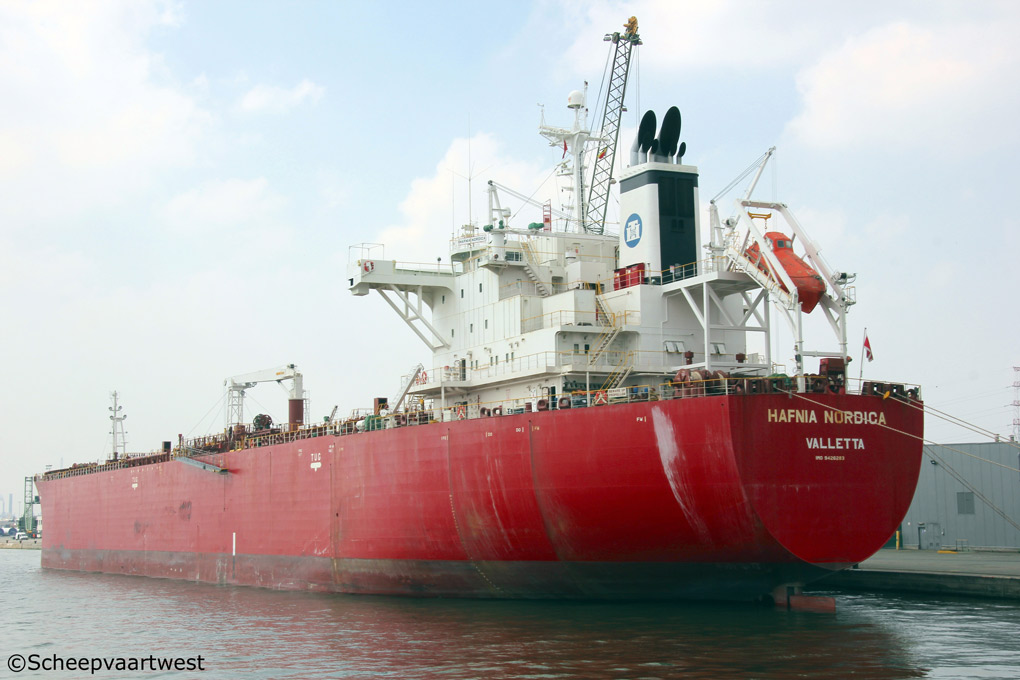

Hafnia Nordica 02   Hafnia Nordica 04   Hafnia Nordica 05
Antwerpen 26/05/16 Antwerpen 14/01/17 Westerschelde 26/01/17


Name

HAFNIA NORDICA

Previous names

2009 - 01.2014 Freja Nordica

Type

Oil carrier

IMO-number

9426283

Call sign

9HA4256

Flag

Malta

Port of registry

Valletta

Previous flags

Republic of Panama, Panama City - Call sign: 3EWO8

GT

31.510 t registered

Suez: 33.458,92 t

DWT

Summer: 49.994 t

Winter: 48.603 t

NT

14.001 t registered

Suez: 30.226,53 t

Panama: 26.137 t

Displacement

Summer: 60.229 t

Winter: 58.838 t

Lightship: 10.235 t

Length

185,93 m overall

Breadth

32,20 m moulded

Draught

Summer: 12,38 m

Winter: 12,12 m

Lightship: 2,39 m

Moulded L x B x D

179,95 x 32,20 x 19,67 m

Registered L x Bx D

180,74 x 32,20 x 19,67 m

Air draft

Lightship: 43,83 m

Normal ballast: 38,50 m

At loaded summer deadweight: 33,84 m

Keel to masthead

46,22 m

Freeboard

Summer: 7.33 m

Winter: 7,59 m

Lightship: 17,32 m

Depth

19,67 m moulded

Speed

Ballast & laden: Max.:15,75 knots

Built

2010

Keel laid

20.08.2009

Launch date

10.12.2009

Date of completion

23.03.2010

Builder

Shin Kurushima Dockyard Co., Ltd.
Imabari
Japan

Yard number

5557

Hull material

Steel

Hull type

Double hull

Main engine

1x Mitsubishi-Kobe Diesel 6UEC60LS - 2 stroke single acting 6 cylinder 600 x 2.200 mm diesel engine 10.620 kW at 100,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 560 mm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary vertical boiler - 9,8 bar

Evaporation: 18,63 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generators - 3.120 kVA

Number of cargo tanks

12

Cargo tank capacity 98%

56.778,41 m³

Seg#1: 18.970,557 m³ (1W , 5W, Slop(S))
Seg#2: 19.388,282 m³ (2W, 6W)
Seg#3: 9.907,224 m³ (3W)
Seg#4: 10.860,502 m³ (4W, Slop(P))

Number of slop tanks

2

Pumps

4x Cargo pumps vertical centrifugal each 1.000 m³/h

1x Ballast pump vertical centrifugal 1.400 m³/h

Manifolds

Bow to centre manifold: 91,73 m

Stern to centre manifold: 94,20 m

Distance bridge front to centre of manifold: 59,34 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.350 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 941 mm

Distance main deck to centre of manifold: 2.100 mm

Tank capacities

Fuel oil: 2.065 m³

Diesel oil: 630,69 m³

Fresh water: 380 m³

Water ballast: 20.586 m³

Lifting equipment

1x Crane - SWL 10,0 t

Maximum outreach of cranes: 2,90 m

Manager

MMS Co, Ltd Singapore Branch

Commercial operator

Hafnia Tankers
C/O Hafnia Management
Tuborg Boulevard 5
DK-2900, Hellerup
Denmark

Technical operator

MMS Co. Ltd. (Singapore Branch)
10 Eunos Road 8, Unit No. 12-05

Singapore Post Centre Singapore 408600

Head Office: MMS Co. Ltd. 18-12 Kamimeeguro,1-chome Meguro-Ku,Tokyo. Japan

Registered owner

Hafnia Tankers Shipholding Malta Ltd.
Regent House, Office 21
Bisazza Street, Sliema, SLM 1640
Malta

Disponent owner

Hafnia Tankers Shipholding Malta Ltd.
Cumberland House, 9th Floor
1 Victoria Street
Hamilton HM
Bermuda

Latest data adjustment

21 June 2016
