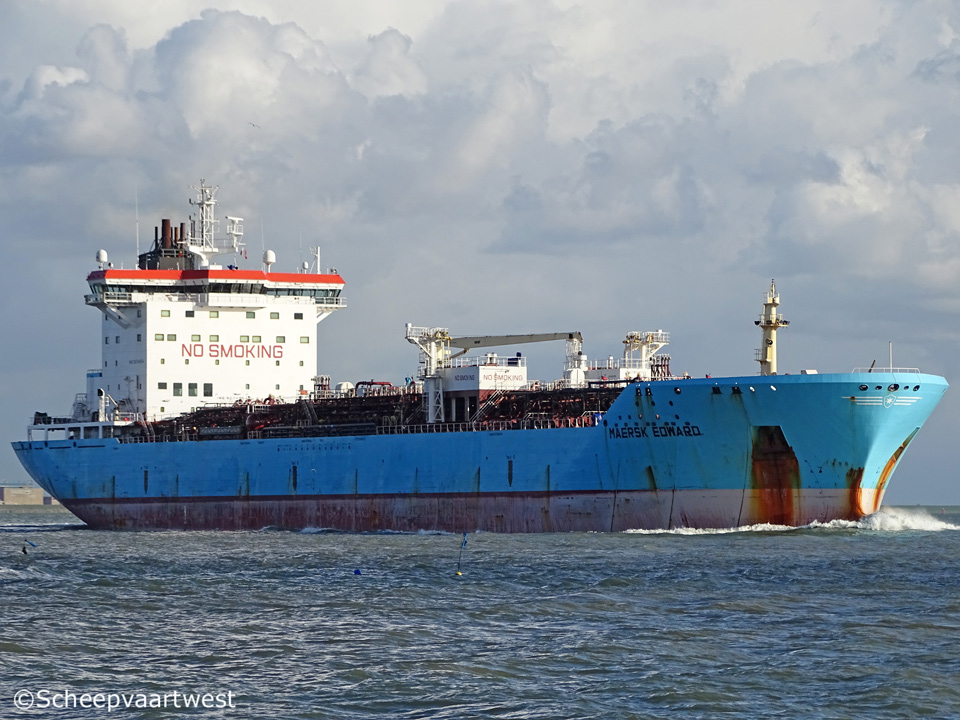

Maersk Edward 09

Westerschelde 05 November 2017

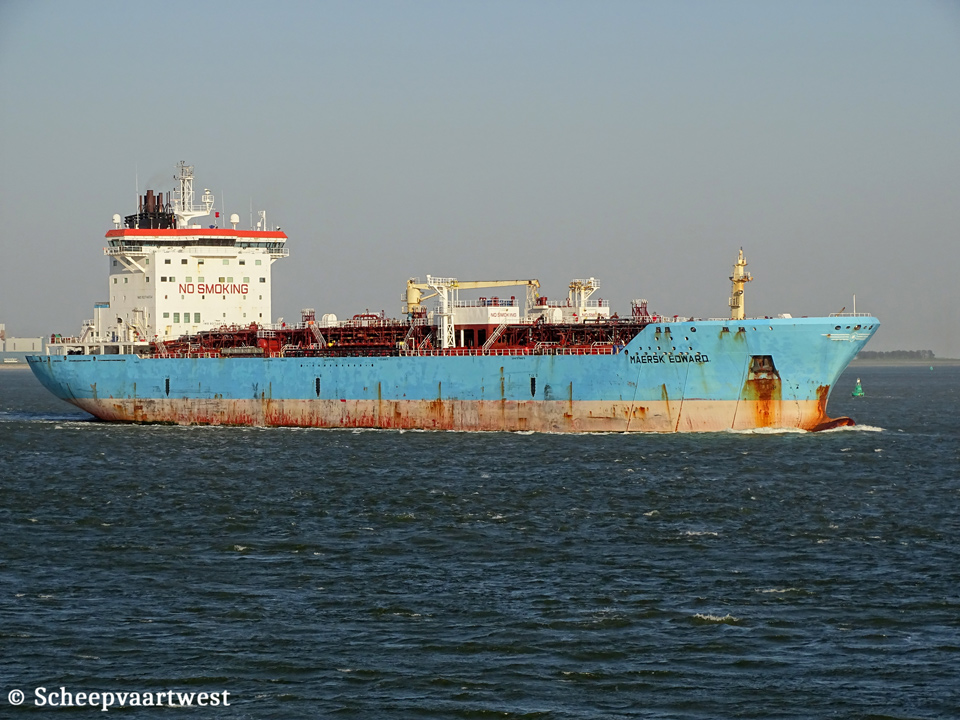

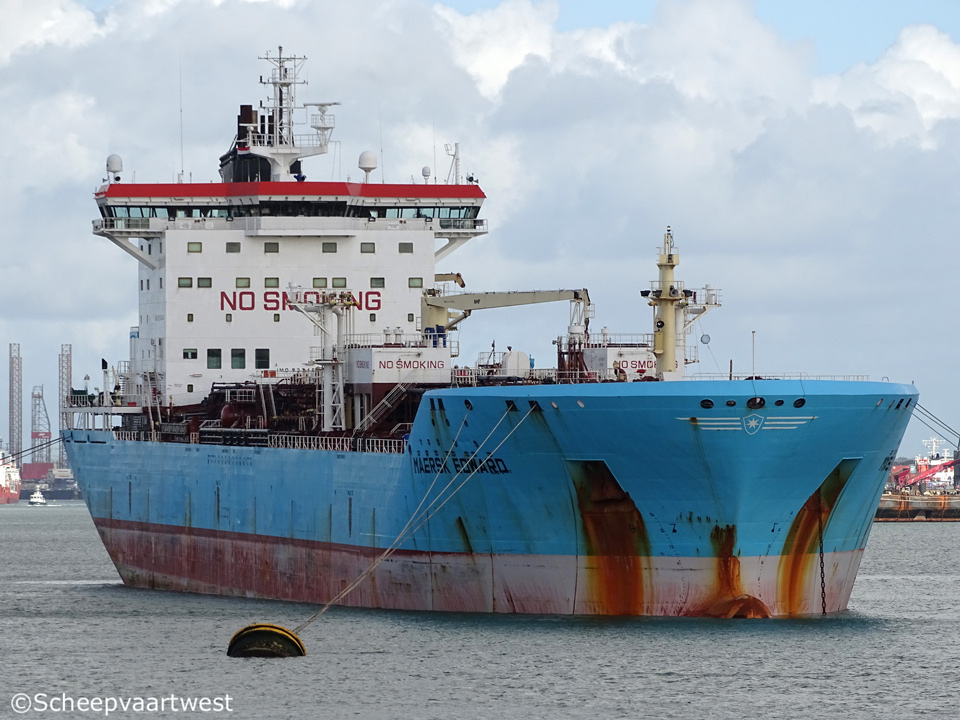

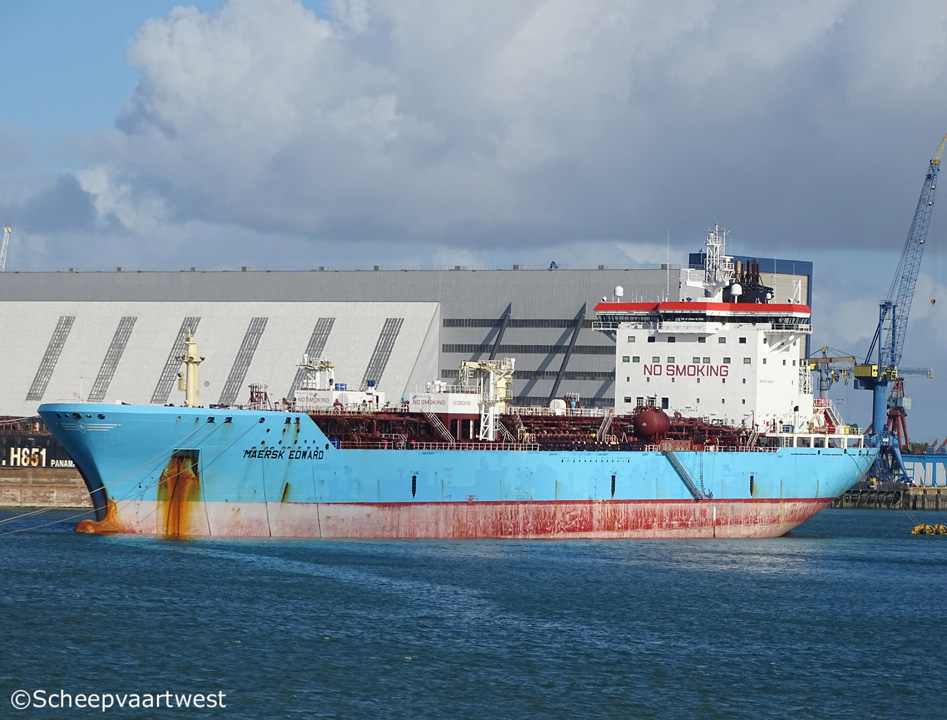

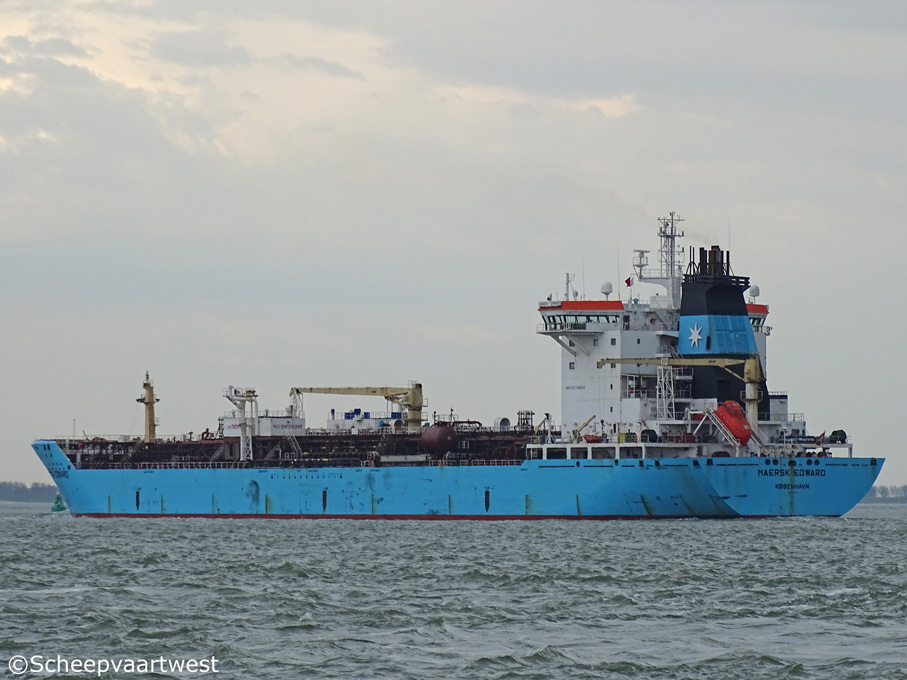

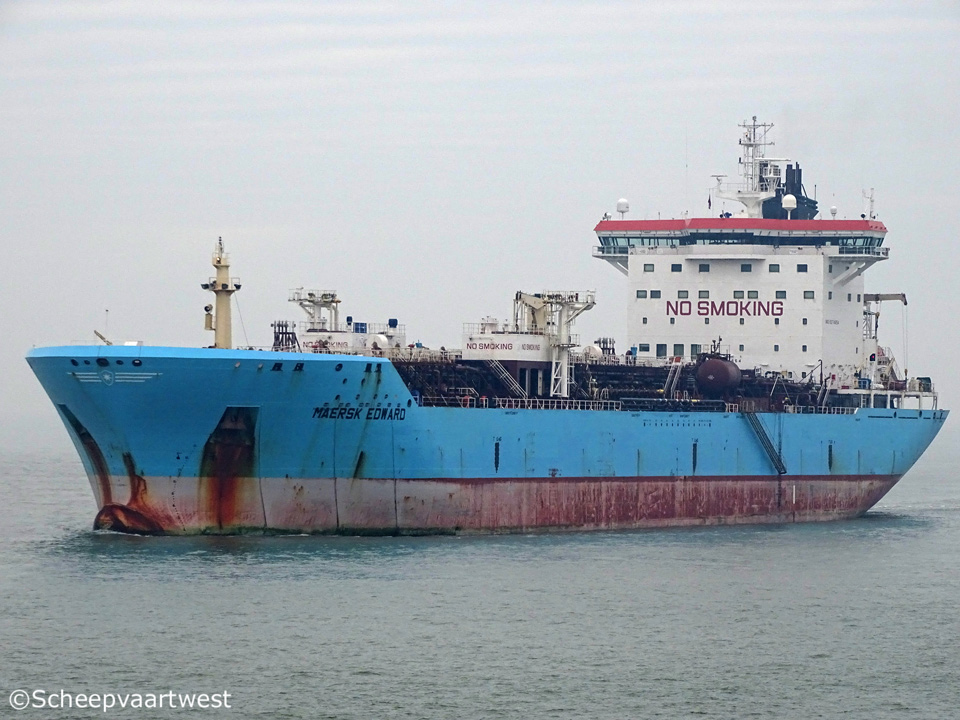

Maersk Edward 05   Maersk Edward 01   Maersk Edward 02   Maersk Edward 03   Maersk Edward 04   Maersk Edward IMO 9274654 10
Westerschelde 05/11/17 Westerschelde 11/04/16 Westerschelde 11/04/16 Vlissingen 27/10/17   Vlissingen 27/10/17   Westerschelde 20/04/20

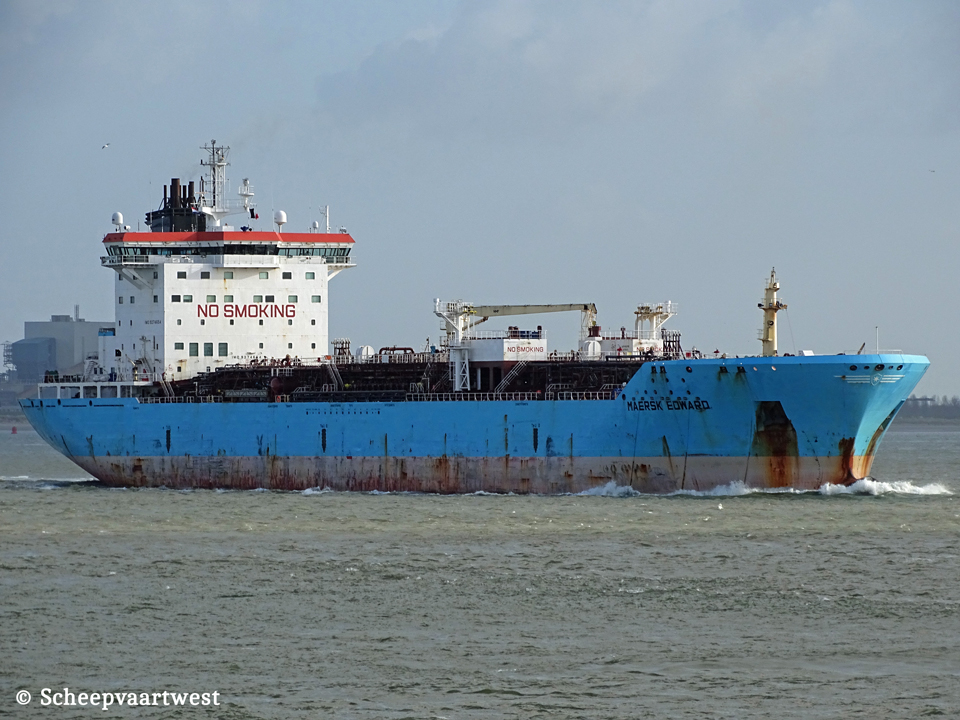

Maersk Edward IMO 9274654 11
Westerschelde 19/01/20


Name

MAERSK EDWARD

Previous names

2005 - 08/2010 Bro Edward

Type

Chemical tanker / Tanker for oil

IMO-number

9274654

Call sign

OWVT2

Flag

Denmark

Port of registry

København

Previous flags

2005 - 2010 France, Marseille - Call sing: FWAX

GT

26.659 t

DWT

Summer: 37.300 t

NT

10.207 t

Displacement

48.241 t

Length

186,30 m overall

174,60 m between perpendiculars

Breadth

31,30 m extreme

Draught

Summer: 10,50 m

Freeboard

Summer: 5.815 mm

Depth

16,40 m moulded

Speed

15,2 knots

Built

2005

Keel laid

10/11/2003

Launch date

12/06/2004

Date of completion

27/07/2005

Builder

Jinling Shipyard

Yanjiang Road 55#

Nanjing, Xiaguan District

China

Yard number

JLZ020504

Hull material

Steel

Hull type

Double hull

Watertight compartments

16

Continuous decks

6

Main engine

1x MAN-B&W 6S50MC - 2 stroke single acting 6 cylinder 500 x 1.910 mm internal combustion engine 8.580 kW / 11.658 hp at 127,0 rpm

Built: 2003

Licence: MAN-B&W

Builder: Hudong Heavy Machinery Co. Ltd., Shanghai - China

Propellers

1x Fixed pitch propeller - aft at 127 rpm

Boilers

1x CHM Aalborg 432,00 m² - 10,0 bar

1x CHO Aalborg 197,55 m² - 10,0 bar

Electric installations

Power voltage: 450 V

Lighting voltage: 220 V

Frequency: 60 Hz

Generators

3x Diesel generatorsets each 1.238 kVA - 990 kW - 1.436 hp

1x Diesel generatorset 2.000 kVA - 1.600 kW - 2.472 hp

Emergency generator

1x Diesel generatorset 288 kVA - 230 kW - 425 hp

Bow thruster

1.000 kW

Number of tanks

16

Cargo tank capacity

45.143,70 m³

Pumps

16x Capacity each 500 m³/h

Tank capacities

Fuel: 1.378,4 m³

Water ballast: 18.208,1 m³

Crew

20

Operator

Maersk Tankers A/S

Previous operator

2005 - 08/2010 Brostrom Tankers France SAS

Registered owner

Maersk Product Tankers A/S

Holmbladsgade 133

2300 København S

Denmark

Previous names & owners

2005 - 08/2010 Bro Edward - Copropriete Du Navire Bro Etienne

Renamed

2020 Tonda

Marshall Islands, Majuro - Call sign: V7A4391

Owner: Tonda Shipping Limited, Wanchai - Hong Kong

Latest data adjustment

24 March 2021
