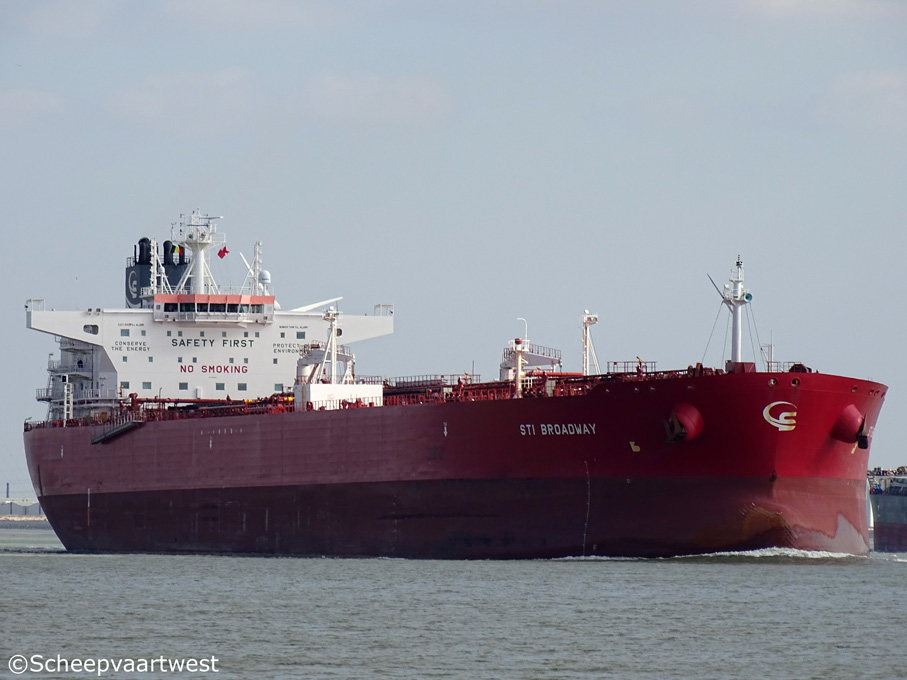

STI Broadway 01

Westerschelde 29 February 2016



Name

STI BROADWAY

Type

Crude oil tanker

IMO-number

9690846

Call sign

V7EQ4

Flag

Marshall Islands

Port of registry

Majuro

GT

64.677 t registered

Suez: 66.052,43 t

DWT

Summer: 89.991 t

NT

33.042 t registered

Panama: 53.113 t

Suez: 60.477,98 t

Length

255,90 m overall

247,20 m between perpendiculars

Breadth

43,00 m moulded

Draught

11,20 m

Freeboard

7.266 mm

Depth

21,85 m moulded

Built

2014

Keel laid

25.11.2013

Delivery date

11.11.2014

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.

Yard number

5395

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Main engine

1x 6G60ME-C - 6 cylinder 600 x 2.790 mm diesel engine 11.200 kW at 77,0 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1

Manufacturer: Samwoo Heavy Ind. Co., Ltd.

Boilers

1x Auxiliary boiler - 11,0 bar

1x Composite boiler - 8,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Main diesel generatorsets each 900 kW

1x Generator 1.450 kW

Number of cargo tanks

12

Cargo tank capacity 100%

132.587 m³ / 129.925,26 t

Number of tanks

Ballast: 14

Fuel oil: 9

Lubricating oil: 8

Diesel oil: 5

Slop: 3

Sludge: 3

Fresh water: 2

Waste water: 2

Chain: 2

Hydraulic oil: 2

Sea water: 1

Tank capacities 100%

Diesel oil: 591 m³ / 502,35 t

Freshwater: 507,8 m³

Fuel oil: 2.352,7 m³ / 2.306,17 t

Hydraulic oil: 38,1 m³

Lube oil: 135 m³ / 124,8 t

Tank ballast: 40.632,5 m³ / 41.648,31 t

Lifting equipment

1x Engine room crane - SWL 4,0 t

2x Hose handling crane - SWL 15,0 t

1x Provision crane port - SWL 2,0 t

1xProvision crane starboard - SWL 4,0 t

Manufacture: Hae An Machinery Ind. Co., Ltd.

Manager

STI Broadway Shipping Company Limited
Trust Company Complex
Ajeltake Road, Ajeltake ISLAND
Majuro, MH 96960
Marshall Islands

Operator

Optimum Ship Services Ltd.
110 Vouliagmenis Avenue and Zamanou Street

16674 Glyfada
Athens
Greece

Registered owner

STI Broadway Shipping Company Limited

Latest data adjustment

09 May 2016
