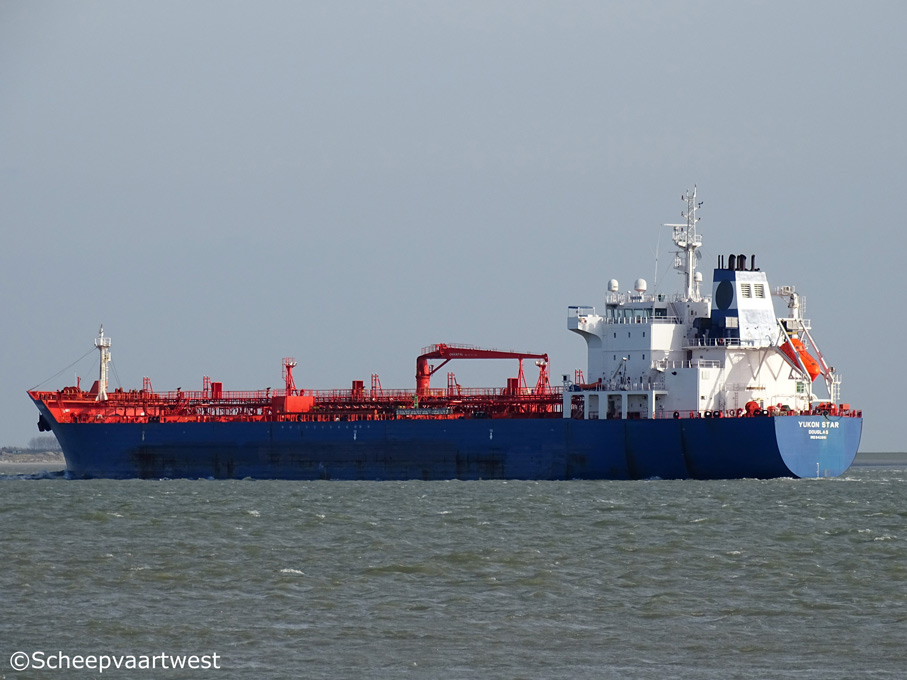

Yukon Star 01

Westerschelde 28 February 2016



Name

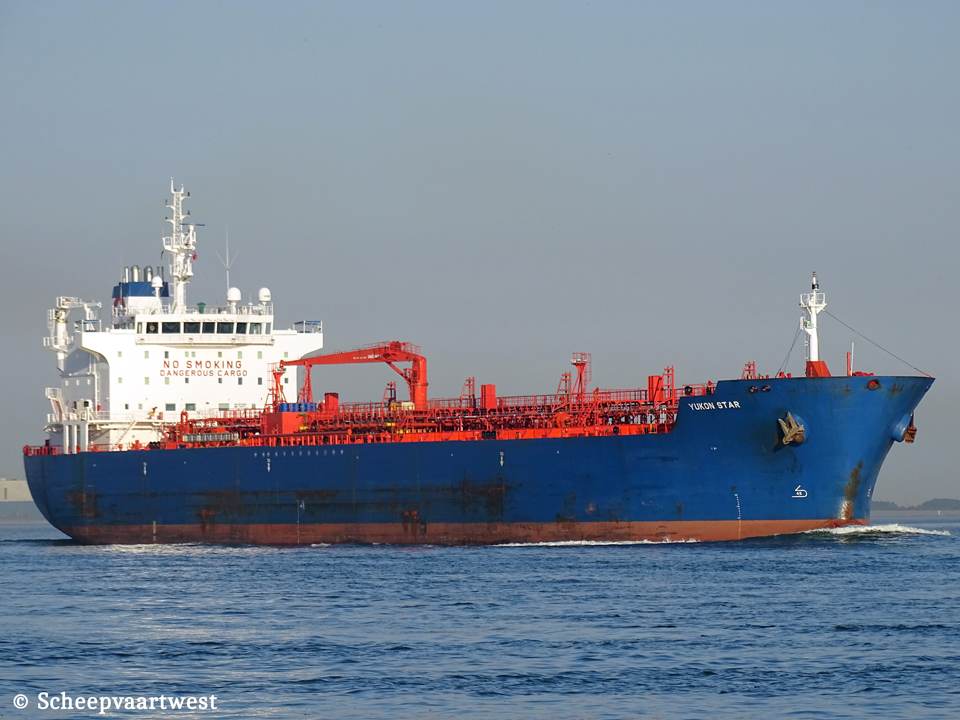

YUKON STAR

Type

Tanker for oil and chemicals

IMO-number

9411991

Call sign

2BWW6

Flag

Isle of Man - United Kingdom

Port of registry

Douglas

GT

23.312 t

DWT

Summer: 37.873 t

NT

9.972 t

Panama: 19.419 t

Suez: 20.874 t

Length

184,00 m overall

177,50 m between perpendiculars

Breadth

27,40 m moulded

Draught

11,51 m

Keel to top mast

43,93 m

Depth

17,20 m moulded

Speed

Service: 14,5 knots

Built

2008

Date of completion

06.04.2009

Builder

Hyundai Mipo Dockyard Co., Ltd.
Ulsan
South Korea

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN B&W 6S46MC -C - 6 cylinder diesel engine output 7.860 kW at 129 rpm

Propellers

1x Fixed propeller

Generators

3x Main diesel generatorsets each 730 kVA

Number of cargo tanks

12

Total cargo capacity 98 %

Tank 1 Port & stb: 2.583,4 m³ each

Tank 2 Port & stb: 3.641,9 m³ each

Tank 3 Port & stb: 3.710,3 m³ each

Tank 4 Port & stb: 3.710,3 m³ each

Tank 5 Port & stb: 3.710,3 m³ each

Tank 6 Port & stb: 3.439,1 m³ each

Total: 42.630 m³ incl. slop tanks 268.134 bbls

Number of slop tanks

2

Slop tank capacity

Tanks Port & stb: 536,4 m³ each

Number of segregations

6 + 1

Number of pumps

10x Framo Deepwell pumps of 500 m³/h each

2x Framo Deepwell pumps of 300 m³/h each

2x Framo Deepwell Pumps of 200 m³/h each

Pumping capacity

abt. 2.500 m³/h

Loading capacity

abt. 3.000 m³/h

Tank coating

Phenolic epoxy

Manifolds

Bow to centre of manifold: 92,16 m

Lifting equipment

1x Hose crane - SWL 10,0 t

Manager

Rigel Schiffahrts GmbH & Co. KG
Domshof 14
28195 Bremen
Germany

Previous owners

Rigel Reederei GmbH & Co. KG MT "Yukon Star"

Latest data adjustment

29 March 2016
