Westerschelde 07 January 2014 |
|
Name |

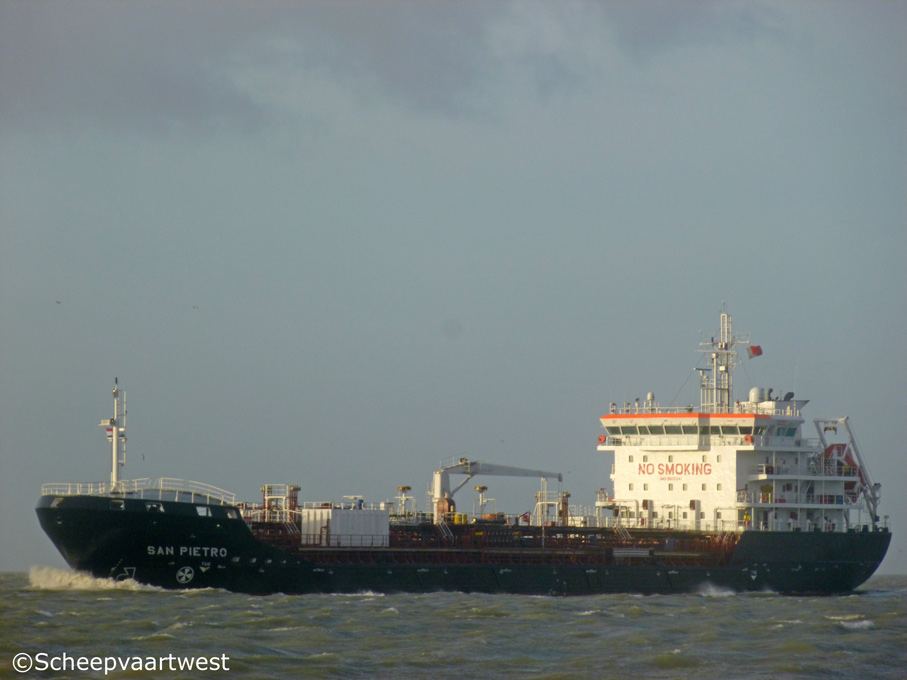

SAN PIETRO |
|
Previous names |
2012 - 06.2013 Bering |
|
Type |
Tank for oil & chemicals |
|
IMO-number |
9610341 |
|
Call sign |
HBGM |
|
Flag |
Switzerland |
|
Port of registry |
Basel |
|
GT |
5.422 t Suez: 5.827,64 t |
|
DWT |
Summer: 7.594,8 t Winter: 7.333,5 t |
|
NT |
2.444 t Suez: 4.180,6 t |
|
Displacement |
Summer: 10.966,4 t Winter: 10.705,1 t |
|
Length |
112,70 m overall 106,00 m between perpendiculars |
|
Breadth |
17,60 m moulded |
|
Draught |
Summer: 7,20 m Winter: 7,05 m |
|
Keel to masthead |
33,12 m |
|
Air draft |
Summer: 25,92 m Winter: 26,07 m |
|
Freeboard |
Summer: 2.211 mm Winter: 2.361 mm |
|
Depth |
9,40 m moulded |
|
Speed |
14,0 knots |
|
Built |
2012 |
|
Keel laid |
10.2009 |
|
Date of completion |
08.11.2012 |
|
Builder |
AVIC Dingheng Shipbuilding Co., Ltd. |
|
Yard number |
GHCY-7500-08 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
2x MAN B&W 8L 21/31 - 4 stroke 8 cylinder 210 x 310 mm diesel engines each 1.720 kW total 3.440 kW / 4.674 hp at 1.000 rpm Builder: Zhenjiang Marine Auxiliary Machinery Works, Zhengjiang CME Co.,Ltd. - China |
|
Propellers |
2x Screw propeller controllable pitch - aft at 169 rpm 4 blades - Diameter: 3.300 mm |
|
Boilers |
1x CHR SN:24968 - 26,00 m² / 9,0 bar |
|
Shaft generator |
2x 625 kVA - 500 kW each at 1.800 rpm |
|
Generators |
3x Volvo Penta D16C-A MG main diesel generatorsets each 500 kVA - 400 kW - 679 hp at 1.800 rpm |
|
Emergency generator |
1x Volvo Penta D9A MG diesel generatorset 180 kW at 1.800 rpm |
|
Compressed air receivers |
2x NK GmbH - 30 m²/h - 30,0 bar @ 1.200 rpm |
|
Bow thruster |
1x Shottel STTO01FT - 400 kW |
|
Number of tanks |
12 |
|
Total capacity of tanks 98% |
Tank 1P: 408 Tank 1S: 411,6 m³ Tank 2P: 825,0 m³ Tank 2S: 818,9 m³ Tank 3P: 731,5 m³ Tank 3S: 723,3 m³ Tank 4P: 773,3 m³ Tank 4S: 779,0 m³ Tank 5P: 774,9 m³ Tank 5S: 767,1 m³ Tank 6P: 696,3 m³ Tank 6S: 702,5 m³ total: 8.554,36 m³ |
|
Number of slap tanks |
2 |
|
Slop tank capacity 98% |
Tank P: 71,3 m³ Tank S: 71,1 m³ Total: 142,4 m³ |
|
Number of segregation |
14 |
|
Cargo pumps |
12x Marflex pumps each 300 m³/h 2x Marflex pumps each 100 m³/h |
|
Max. rate loading |
2.000 m³/h |
|
Max. rate discharging |
1.500 m³/h |
|
Tank capacities 100% |
Fuel oil: 249,2 m³ Diesel oil: 90,3 m³ Fresh water: 154,4 m³ Lub oil: 9,10 m³ Ballast: 3.267,9 m³ |
|
Technical operator |
ABC Maritime AG |
|
Owner |
ABC Maritime AG |
|
Registered owner |
San Pietro Schifffahrt AG Basel Switzerland |
|
Latest data adjustment |
21 February 2016 |
