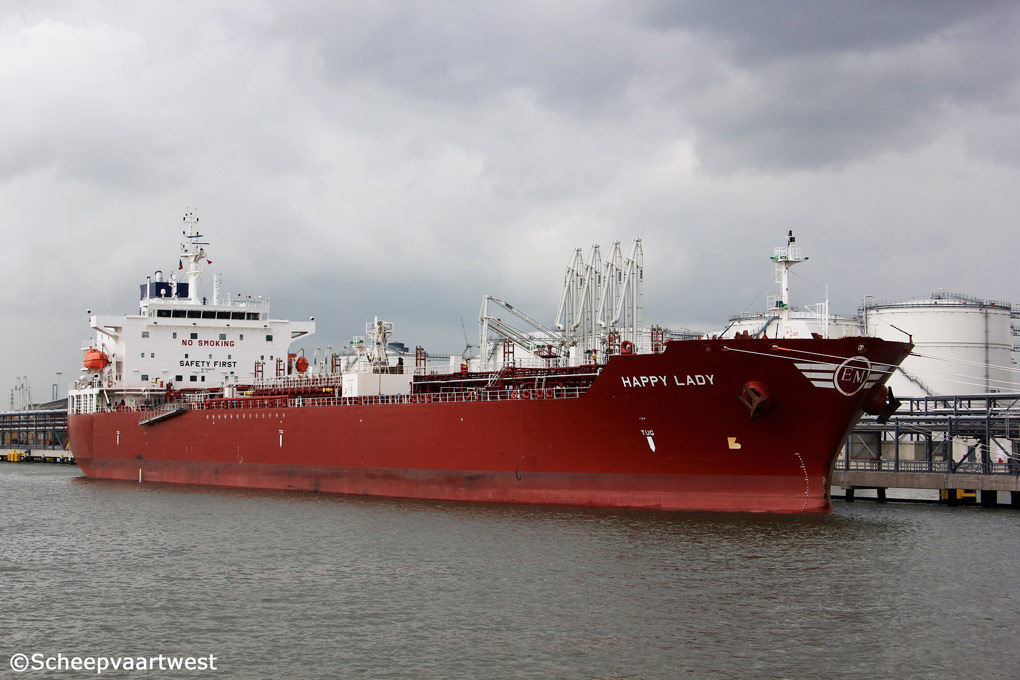

Happy Lady 01

Antwerpen 07 May 2015

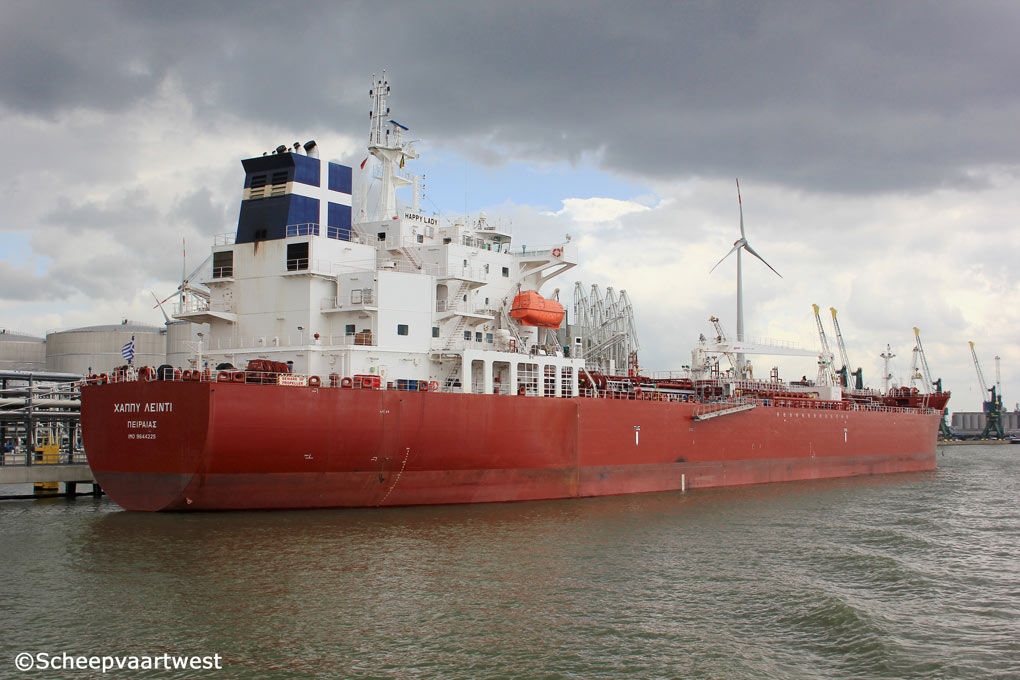

Happy Lady 02
Antwerpen 07/05/15


Name

HAPPY LADY

Hellenic name

ΧΑΠΠΥ ΛΕΙΝΤΙ

Type

Oil tanker / Chemical tanker

IMO-number

9644225

Call sign

SVBV3

Flag

Greece

Port of registry

Piraeus

GT

30.201 t registered

Suez: 31.668,59 t

DWT

Summer: 51.875,2 t

NT

13.883 t registered

Panama: 25.064 t

Suez: 27.524,06 t

Length

183,00 m overall

174,00 m between perpendicular

Breadth

32,23 m moulded

Draught

13,31 m

Freeboard

5.811 mm

Depth

19,10 m moulded

Built

2013

Builder

SPP Shipbuilding Tongyoung Shipyard Co., Ltd.
Tongyoung
South Korea

Yard number

H4092

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Non tight: 1

Water tight: 2

Oil tight: 11

Main engine

1x HYUNDAY – MAN B&W 6S50ME-C8.2 - 6 cylinder 500 x 2.000 mm diesel engine 8.910 kW at 117,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1

Manufacturer: Sil La Metal Co.

Boilers

1x Exhaust Gas Boiler - 12,0 bar

1x Auxiliary boiler - 9,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Diesel generatorsets each 900 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

15

Cargo tank capacity 98%

52.152,9 m³

Slop tank capacity 98%

1.233,8 m³ + 160,7 m² residue

Segregations

7

Cargo pumps

14

Number of tanks

Ballast: 14

Fuel oil: 8

Waste water: 8

Lubricating oil: 7

Diesel oil: 6

Fresh water: 3

Chain: 2

Sludge: 2

Hydraulic oil: 1

Fixed ballast liquid: 1

Tank capacities 100%

Diesel oil: 291,5 m³ / 261,63 t

Freshwater: 402,1 m³

Fuel oil: 1.224,7 m³ / 1.200,20 t

Hydraulic oil: 1,.8 m³

Lube oil: 102,6 m³ / 92,34 t

Tank Ballast: 23.244,7 m³ / 23.825,81 t

Lifting equipment

1x Engine room crane - SWL 3,5 t

1x Hose handling crane - SWL 10,0

Manufacture: SPP Shipbuilding Co., Ltd. - Haman Factory

1x Provision crane - SWL 3,5 t

Manufacture: SPP Machine Tech

Manager

Eastern Mediterranean Maritime
Grigoriou Lampraki 69
Glyfada 166 75
Greece

Operator

Adriatic Ventures Co.

The Trust Company of the Marshall Islands, Inc.
Trust Company Comples
Ajeltake Road, Ajeltake Island
MAJURO, MH96960
Marshall Islands

Registered owner

Adriatic Ventures Co.

Latest data adjustment

29 May 2015
