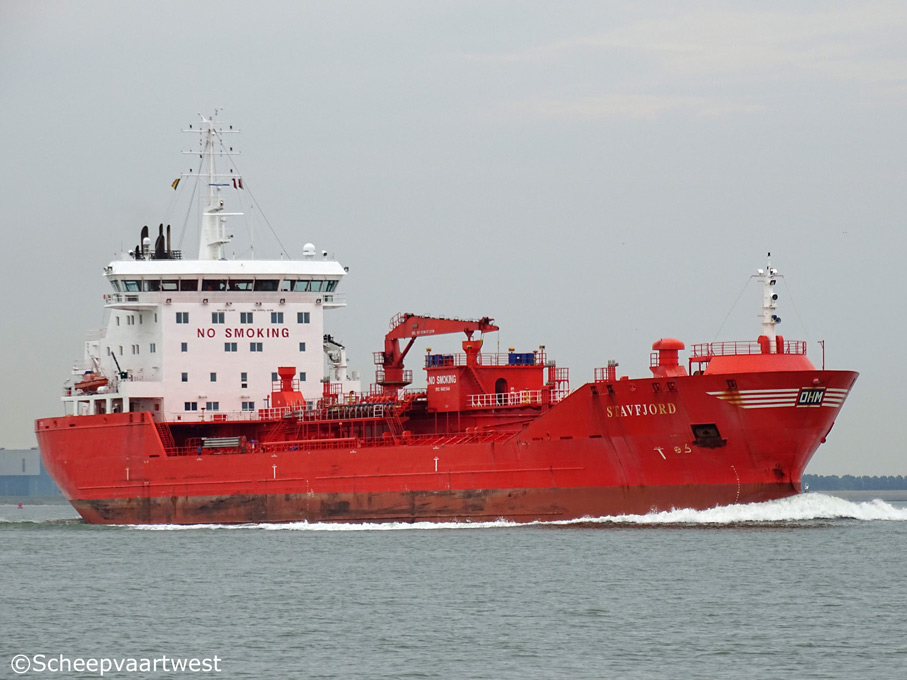

Stavfjord 03

Westerschelde 07 July 2016

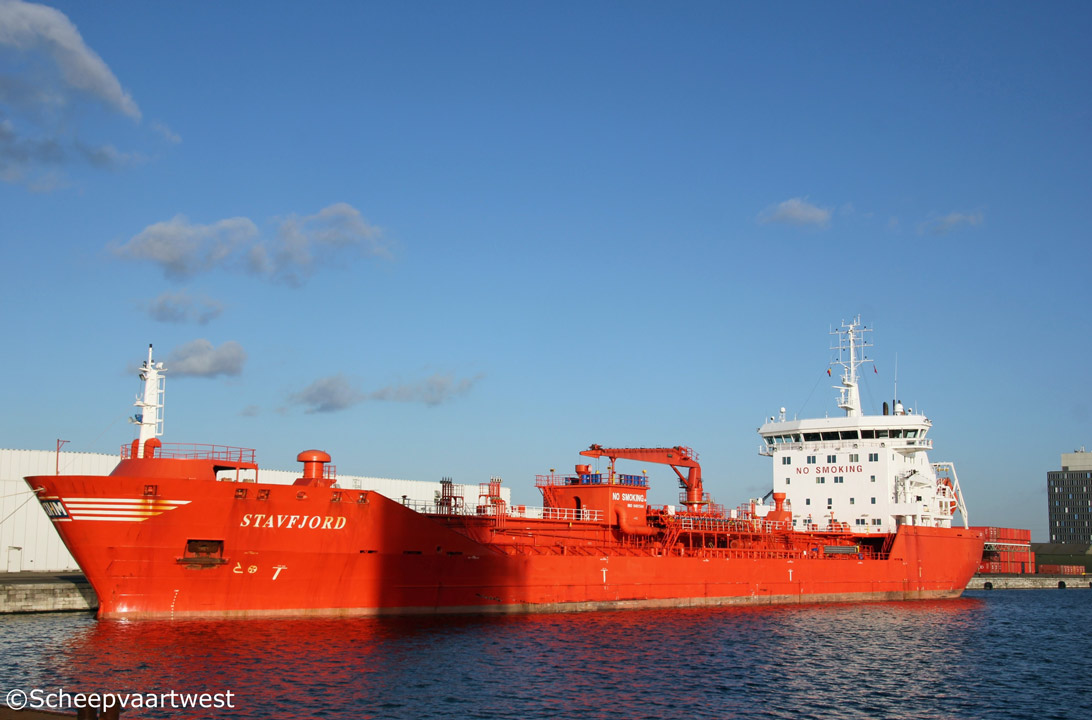

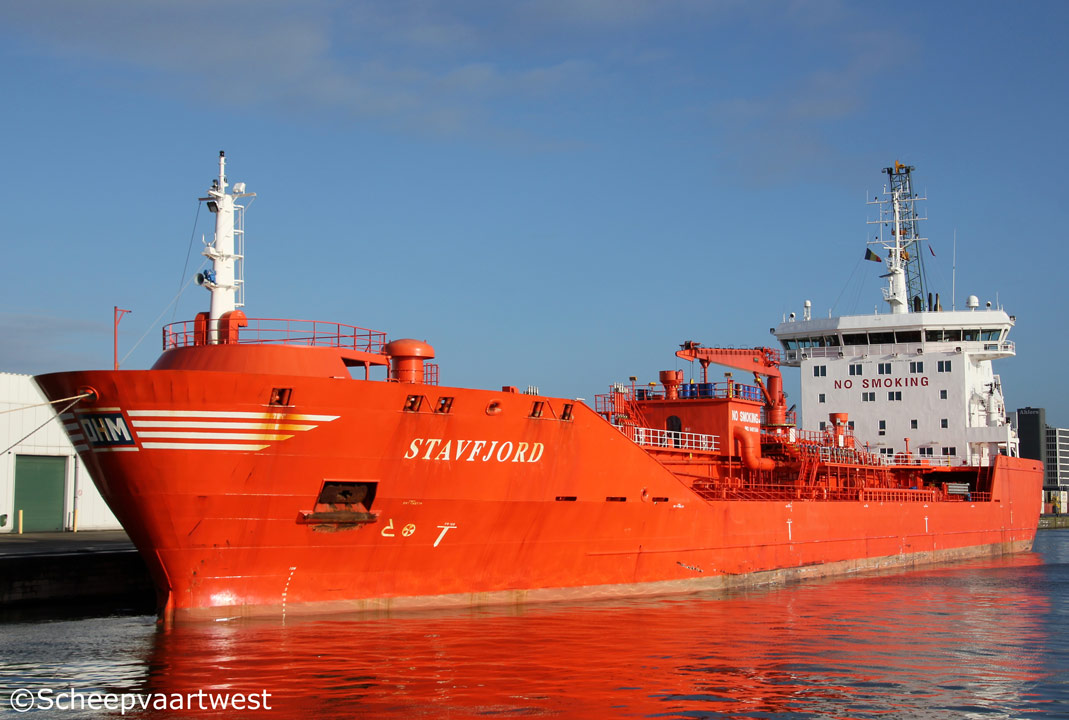

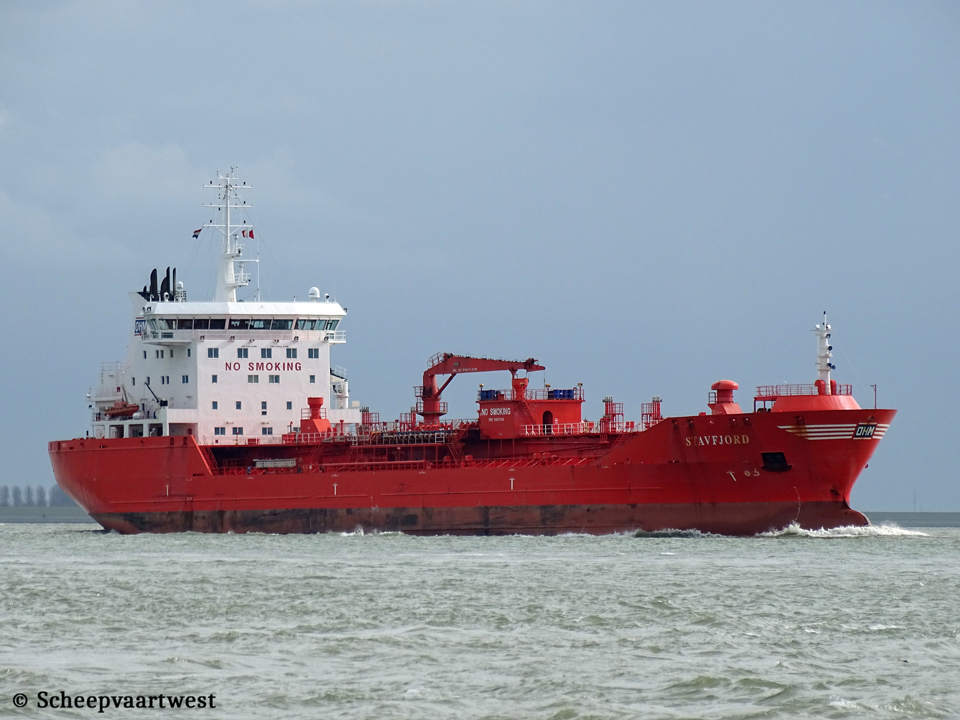

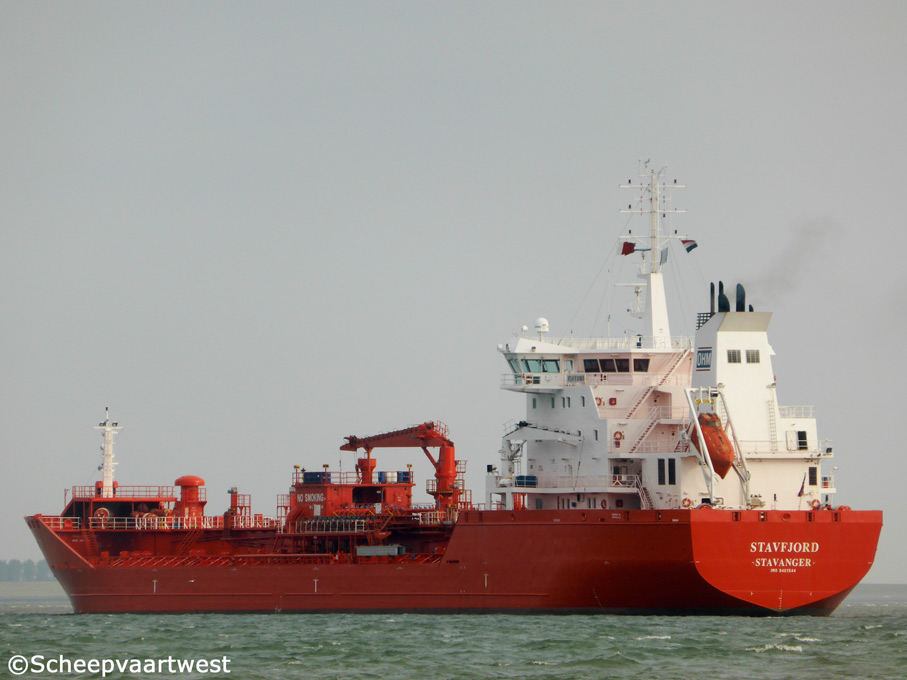

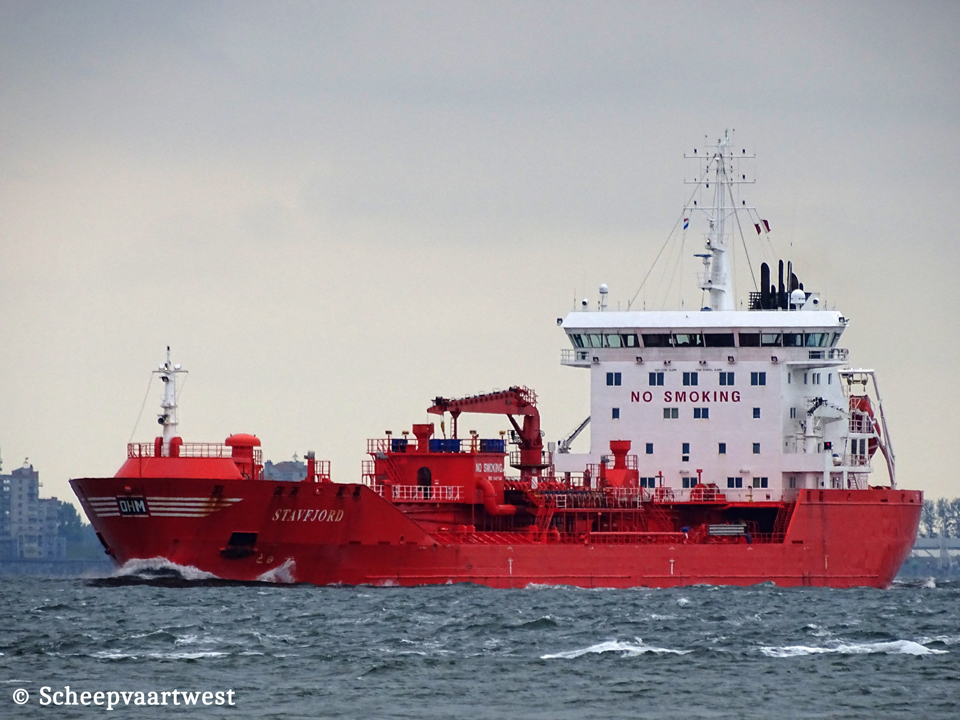

Stavfjord 01   Stavfjord 04   Stavfjord 05   Stavfjord IMO 9401544 08   Stavfjord IMO 9401544 10
Westerschelde 12/10/14 Antwerpen 02/01/17 Antwerpen 05/01/17   Westerschelde 05/05/17   Westerschelde 08/03/16


Name

STAVFJORD

Type

Tanker for chemicals & Oil products

IMO-number

9401544

Call sign

LAHA7

Flag

Norway

Port of registry

Stavanger

GT

11.935 t

DWT

Summer: 16.635 t

NT

5.133 t

Light ship

5.969 t

Length

144,05 m overall

133,82 m between perpendiculars

Breadth

23,20 m extreme

Draught

Summer: 8,88 m

Keel to mast end

44,31 m

Depth

12,40 m

Speed

Max: 15,8 knots

Service: 14,8 knots

Built

2009

Keel laid

28/12/2007

Launch date

18/04/2008

Date of completion

04/03/2009

Builder

Jiangnan Shipyard Group Co., Ltd.

Shanghai

China

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W 6L48/60B - 4 stroke 6cylinder 480 x 600 mm combustion engine 6.120 kW / 8.321 hp at 514 rpm

Builder: MAN Diesel & Turbo

Propellers

1x Controllable pitch propeller VBS 1460

4 blades - diameter: 5,40 m

Builder: MAN-B&W Diesel A/S

Boilers

Auxiliary boiler, composite - Mission OC

Auxiliary boiler, oil/gas fired - Mission OM

Builder: Aalborg Industries AS

Shaft generator

1x 750 kW

Generators

2x Wärtsilä 4L20 diesel generatorsets each 645 kW

1x Wärtsilä 6L20 diesel generatorset 1.500 kW

Builder: Wärtsilä Finland Oy

Bow thruster

1x 750 kW

Emergency generator

1x Sisu diesel generatorset

Number of tanks

12 + 2 slop tanks

Tank capacity 98%

19.293 m³ incl slop tanks

Slop tank capacity 98%

799,4 m³

Pump capacity

12 Centrifugal deepwell Framo pumps each 300 m³/h

2x Centrifugal deepwell Framo pumps each 150 m³/h

2x Centrifugal deepwell Framo pumps each 75 m³/h

1x Pump 70 m³/h

Manifolds

Bow centre manifold: 72,20 m

Tank capacities

Ballast: 8.180 m³

HFO: 570 m³

Lub: 50 m³

Fresh water: 240 m³

Anchor equipment

Length: 577,50 m

Diameter: 58 mm

Accommodation

Total 16 people

One Hospital

Lifesaving equipment 18 persons

Commercial manager

Equinor ASA

Forusbeen 50

4035 Stavanger

Norway

ISM manager

OSM Ship Management AS

Svinoddveien 12

4836 Arendal

Norway

Previous manager

DSD - Det Stavangerske Dampskibbselskab Shipping AS
Stavanger

Norway

Owner

O.H. Meling Tankers AS, Stavanger - Norway

Care of Equinor ASA

Forusbeen 50

4035 Stavanger

Norway

Registered owner

O.H. Meling & Co. AS

Latest data adjustment

13 January 2023
