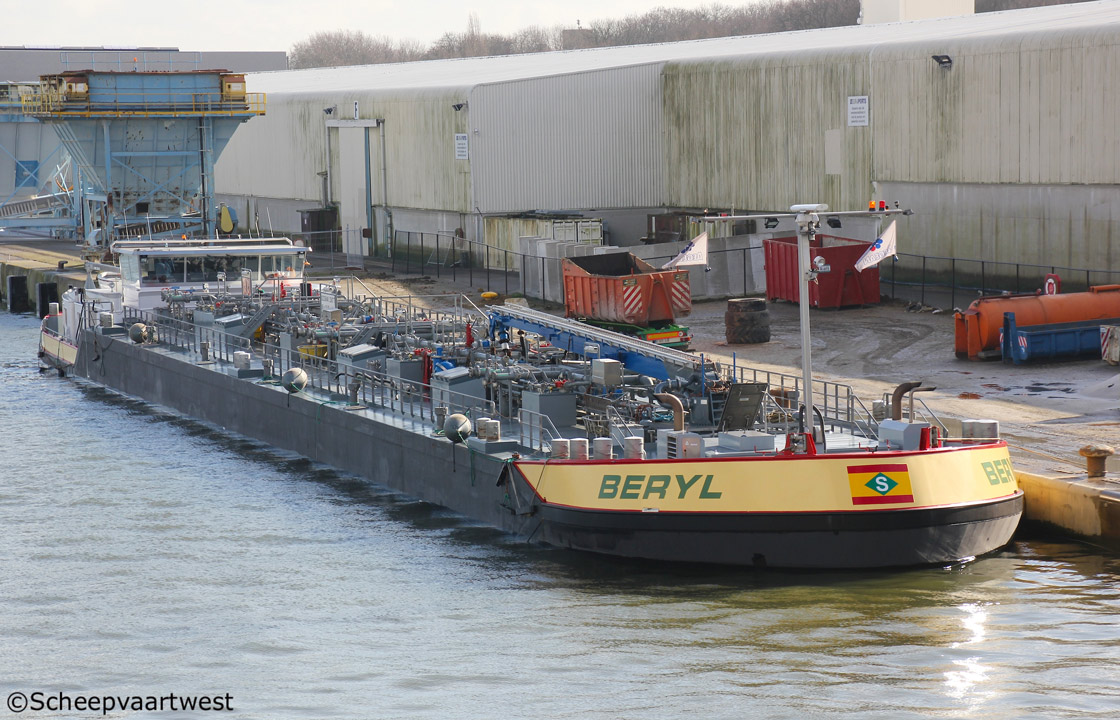

Beryl 04

Antwerpen 16 February 2018

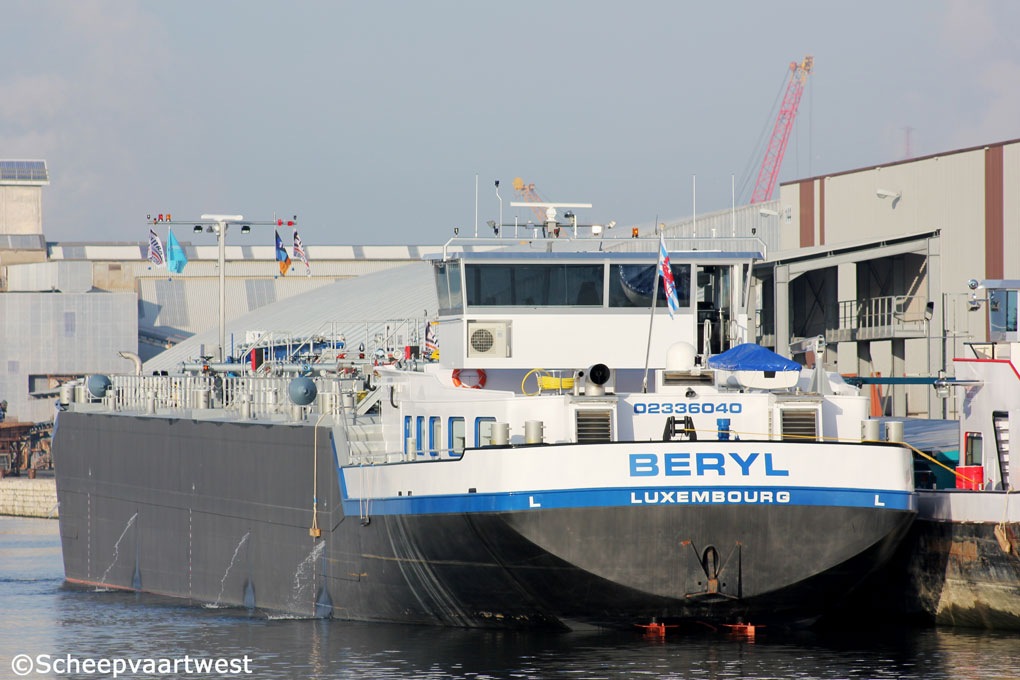

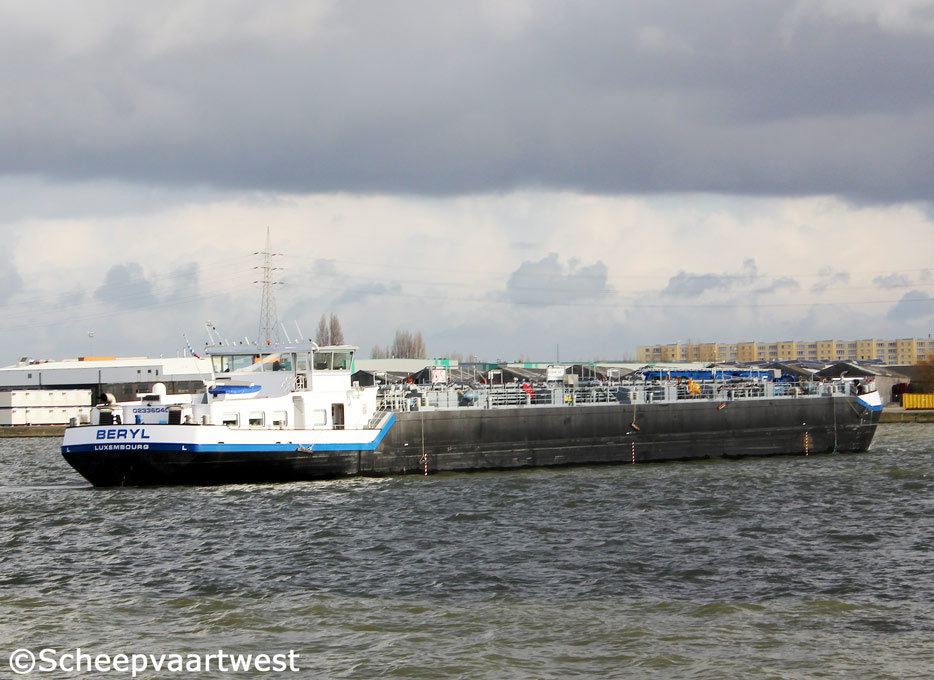

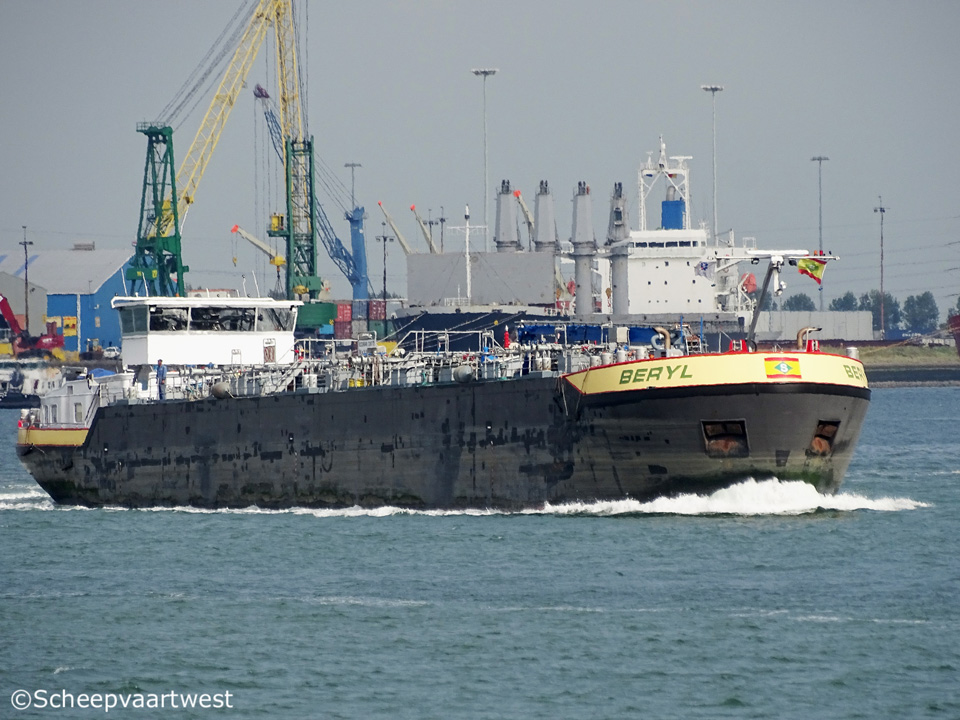

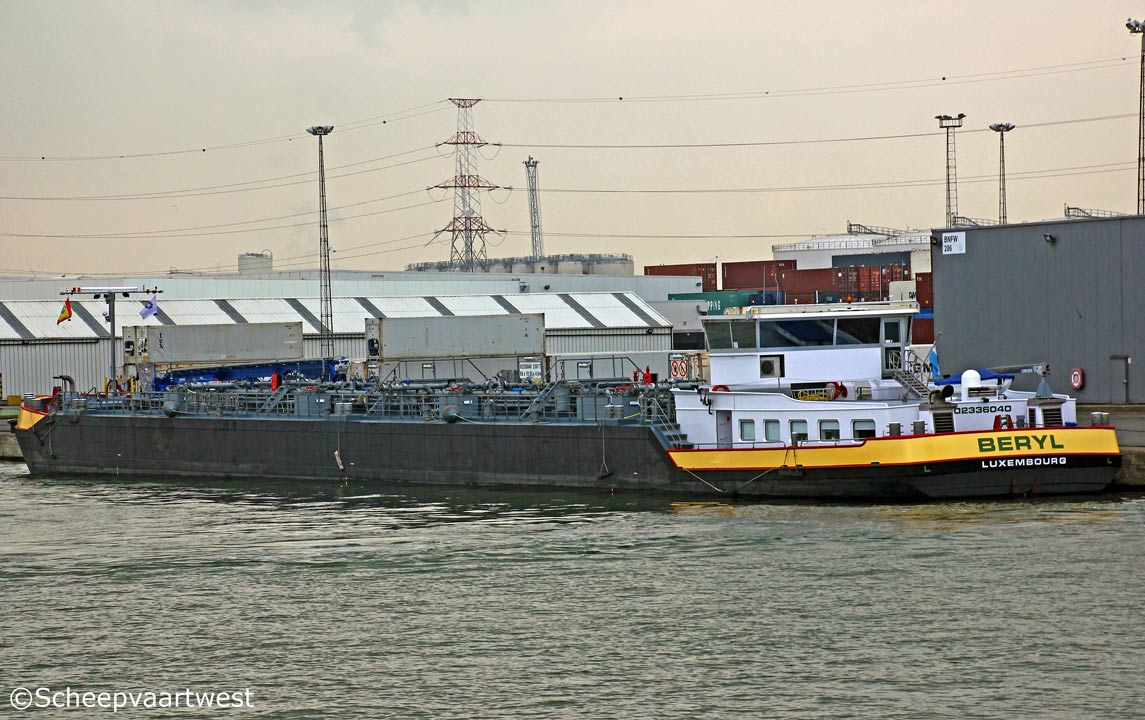

Beryl 03   Beryl 01   Beryl 02   Beryl 05
Antwerpen 06/02/17 Antwerpen 12/10/14 Antwerpen 25/12/14 Vlissingen 29/09/17


Name

BERYL

Type

Inland tanker

ENI-number

02336040

Flag

G.H. Luxembourg

Port of registry

Luxembourg City

GT

998 t

DWT

2.357 t

Length

86,00 m

Breadth

10,45 m

Draught

4,20 m

Depth

5,58 m

Built

2014

Date of completion

14.10.2014

Builder casco

S.C. Santierul Naval Orsova S.A.
Orsova
Romania

Builder completion

TeamCo Shipyard B.V.
Heusden
The Netherlands

Yard number

183

Hull material

Steel

Watertight compartments

10

Continuous decks

1

Main engine

1x ABC 6DZC-800 - 4 stroke 6 cylinder diesel engine - 1.104 kW / 1.500 hp at 800 rpm

Builder: Anglo Belgian Corporation NV

Wiedauwkaai 43

900 Gent

Belgium

Gearbox

1x Masson Marine type MM W12000 - reduction: 2,545:1

Propellers

1x Screw propeller solid

Generators

1x Scania DI-13 081M coupled with Stamford HCM 434 F Generator 389 kVA

1x Scania DI-16 52M coupled with Stamford HCM 534 D generator 520 kVA

1x Sisu Diesel 49 DTG coupled with Stamford UCM 274 C generator 82 kVA

Bow thruster

1x VBS 1000 SR - 300 kW at 1.780 rpm

Cargo capacity

2.500 m³

Pumps

2x Bornemann cargo pomps type HC-232 - 400 m³/h each driven by electric motor 185 kW

Fuel capacity

50 m³

Owner

Somtrans Luxembourg
Remich
G.D. Luxembourg

Previous owner

2014 - 2016 Beryl Shipping S.A.
Luxembourg City

G.D. Luxembourg

Latest data adjustment

19 February 2017
