Westerschelde 17 November 2015 |
 |
 |
 |
 |
|||
| Westerschelde 17/11/15 | Westerschelde 06/10/14 | Antwerpen 21/02/19 | Westerschelde 08/07/15 | |||
|
Name |

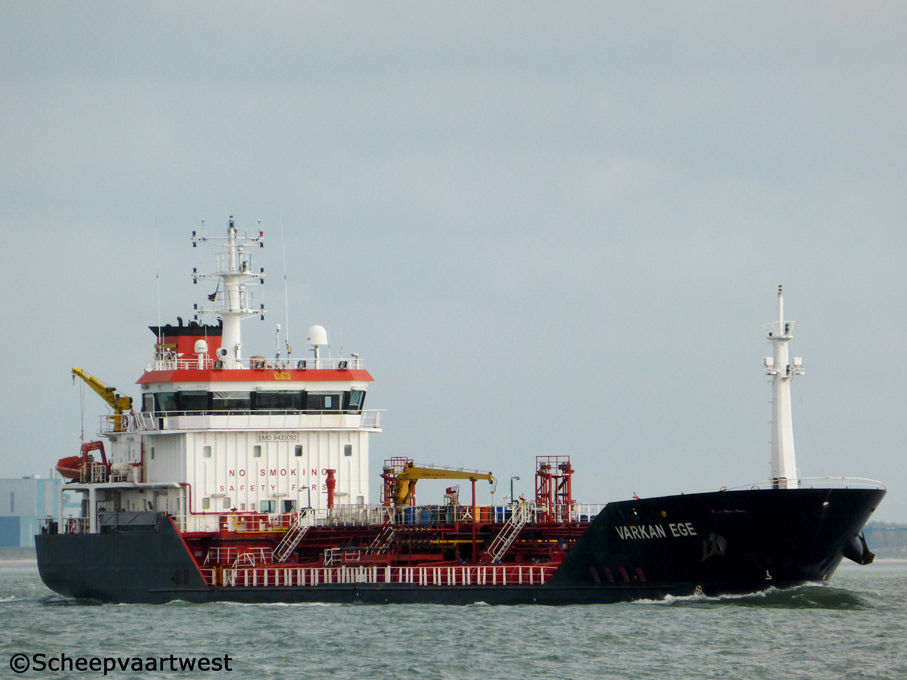

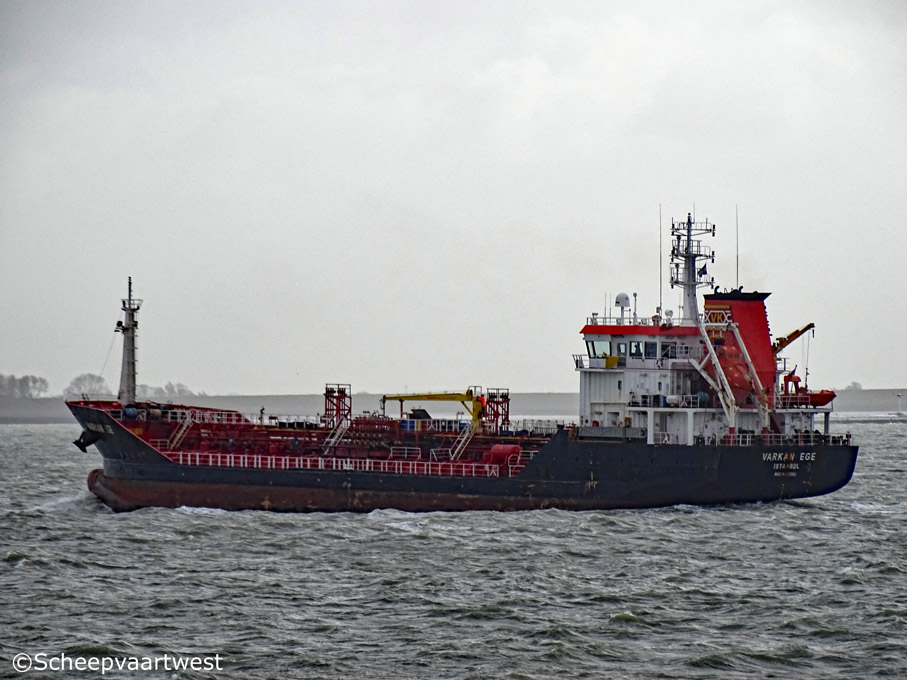

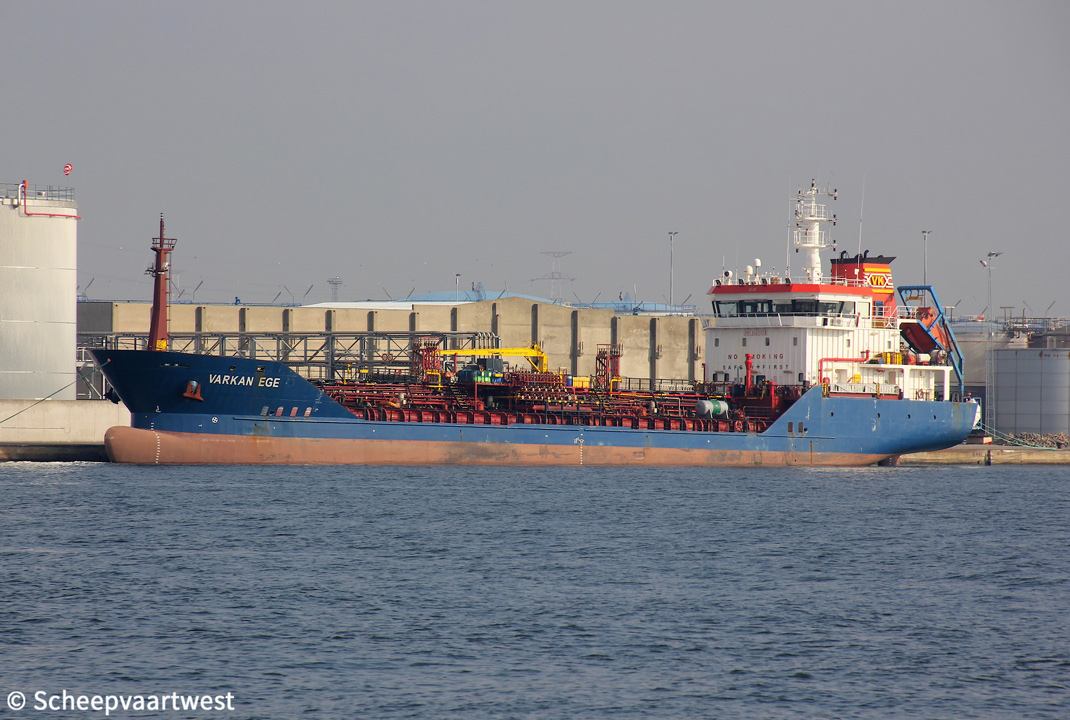

VARKAN EGE |
|
Previous names |
2008 Launch as: Fevzi Vardal |
|
Type |
Tanker for oil & chemicals |
|
IMO-number |
9433092 |
|
Call sign |
TCSZ3 |
|
Flag |
Turkey |
|
Port of registry |
Istanbul |
|
GT |
2.222 |
|
DWT |
Summer: 3.541,73 |
|
NT |
1.064 |
|
Length |
88,53 m overall |
|
Breadth |
13,50 m moulded |
|
Draught |
Summer: 5,54 m |
|
Moulded L x B x D |
84,76 x 13,50 x 6,50 m |
|
Registered L x B x D |
84,76 x 13,50 x 6,50 m |
|
Keel to mast |
26,50 m |
|
Freeboard |
968 mm |
|
Depth |
6,50 m moulded |
|
Speed |
14,0 knots |
|
Built |
2008 |
|
Keel laid |
15/12/2006 |
|
Launch date |
01/07/2007 |
|
Date of completion |
22/02/2008 |
|
Builder |
Dentas Shipbuilding & Repair (Dentas Gemi Insa Ve Onarim Sanayi A.S) Tuzla Turkey |
|
Yard number |
NB091 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.499 kW / 2.037 hp at 750 rpm Built: 01/10/2008 Builder: Caterpillar Motoren GmbH & Co.KG |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 200 mm |
|
Propelling system |
1x Controllable pitch propeller |
|
Boilers |
1x CHR 47,90 m² -10,0 bar 2x CHO 39,70 m² - 10,0 bar Manufacturer: Hoch-Temperatur Industreanlagen GmbH - Germany |
|
Shaft generator |
1x 669 kVA - 535 kW |
|
Generators |
2x Main diesel generatorsets each 420 kVA - 336 kW - 469 hp |
|
Emergency generator |
1x Diesel generatorset 138 kVA - 110 kW - 149 hp |
|
Bow thruster |
240 kW |
|
Number of tanks |
12 |
|
Cargo tank capacity 98% |
3.750,68 m³ |
|
Slop tank capacity 98% |
86,55 m³ |
|
Segregation |
12 |
|
Pumps |
12x 100 m³/h each |
|
Manifolds |
Bow centre manifold: 41,80 m |
|
Tank capacities |
Fuel oil: 195,11 m³ Freshwater; 85,87 m³ |
|
Lifting equipment |
1x Crane - SWL 2,5 t |
|
ISM & commercial manager |
Veysel Vardal Gemicilik Necatibey Caddesi 70/6, K Karamustafapasa M, Beyoglu, 34425, Istanbul, Turkey |
|
Operator |
Varkan Group |
|
Registered owner |
Varkan Ege Denizcilik San. Ve Tic. A.S. c/o Veysel Vardal Gemicilik Denizcilik ve Ticaret AS Necatibey Caddesi 70/6, K Karamustafapasa M, Beyoglu, 34425, Istanbul Turkey |
|
Latest data adjustment |
22 October 2025 |
