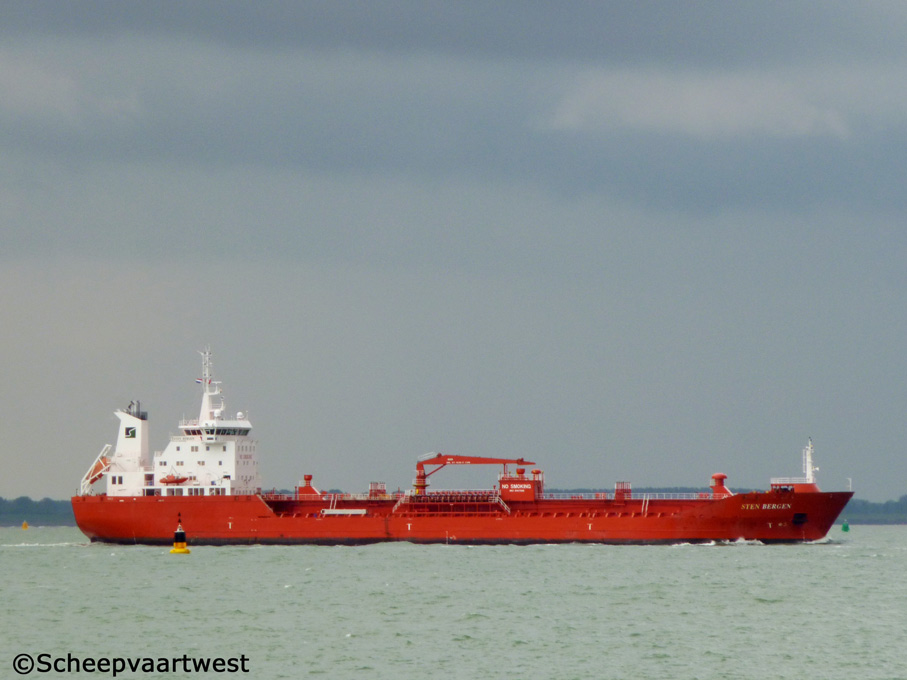

| Westerschelde 15 October 2013 |
 |
 |
 |
 |
 |
||||

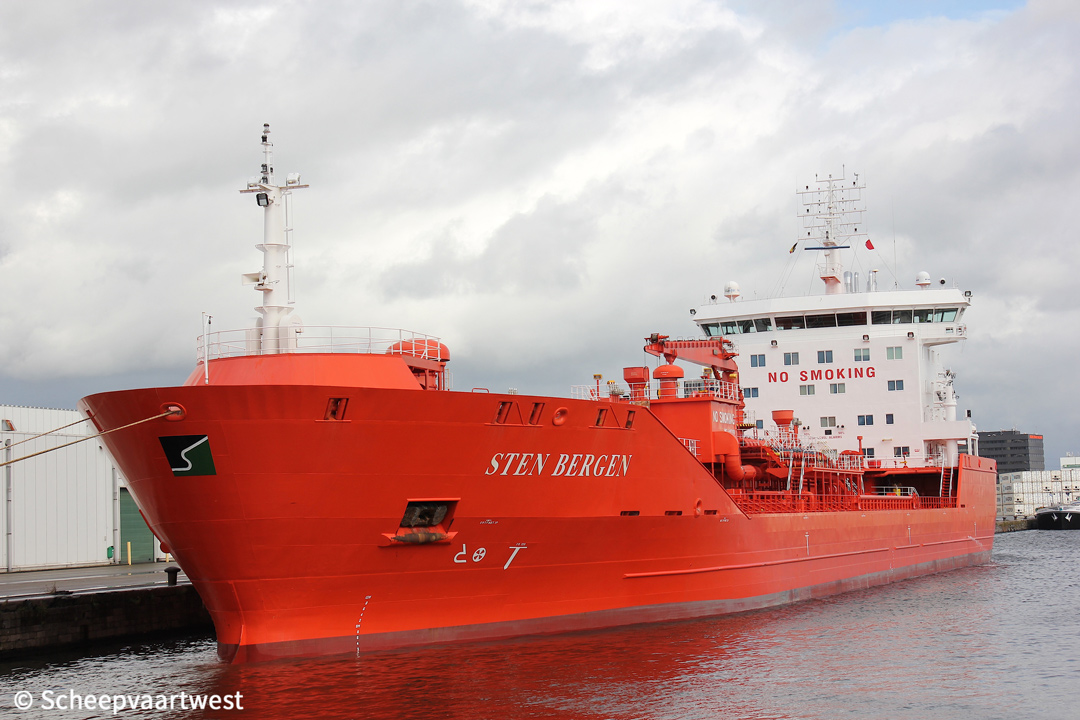

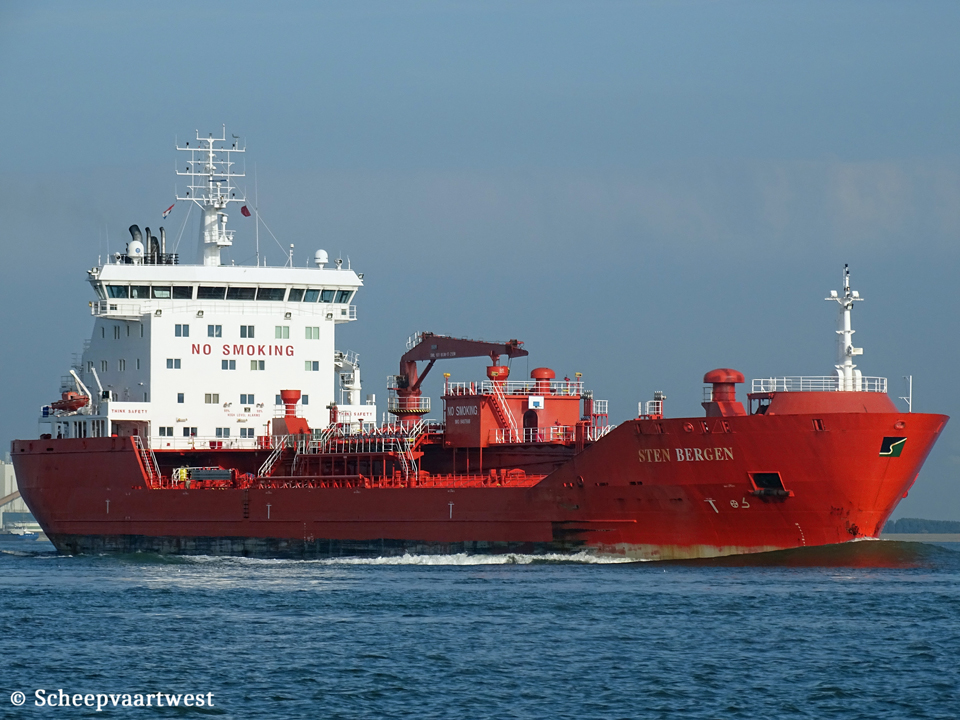

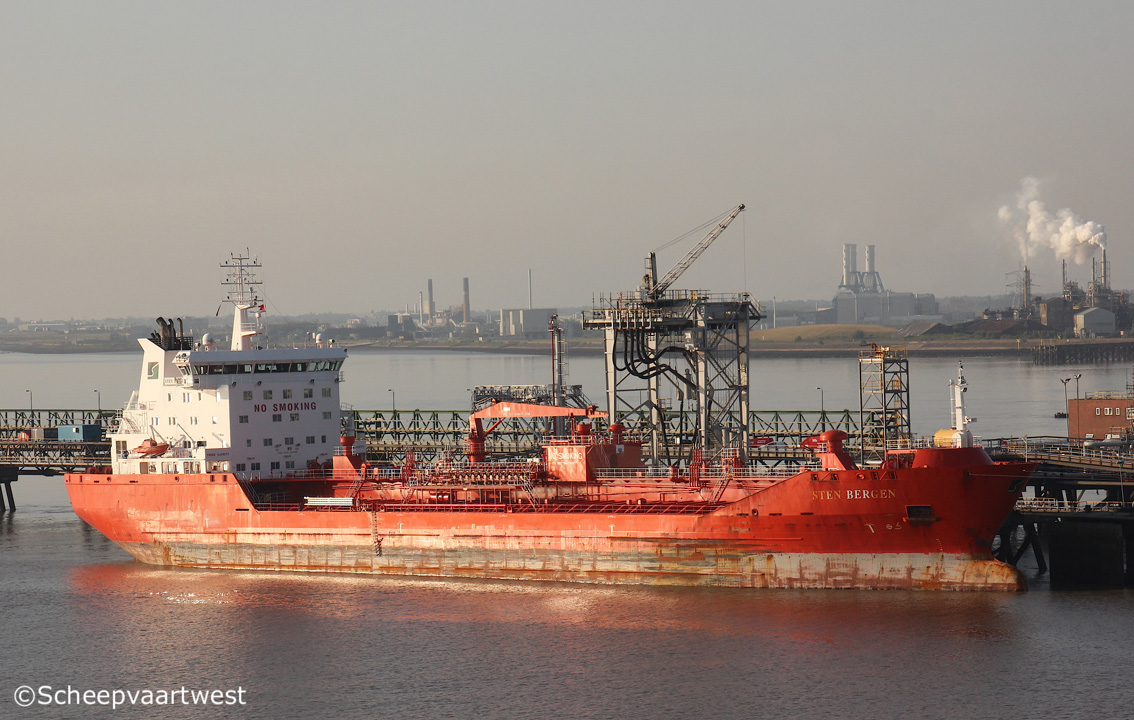

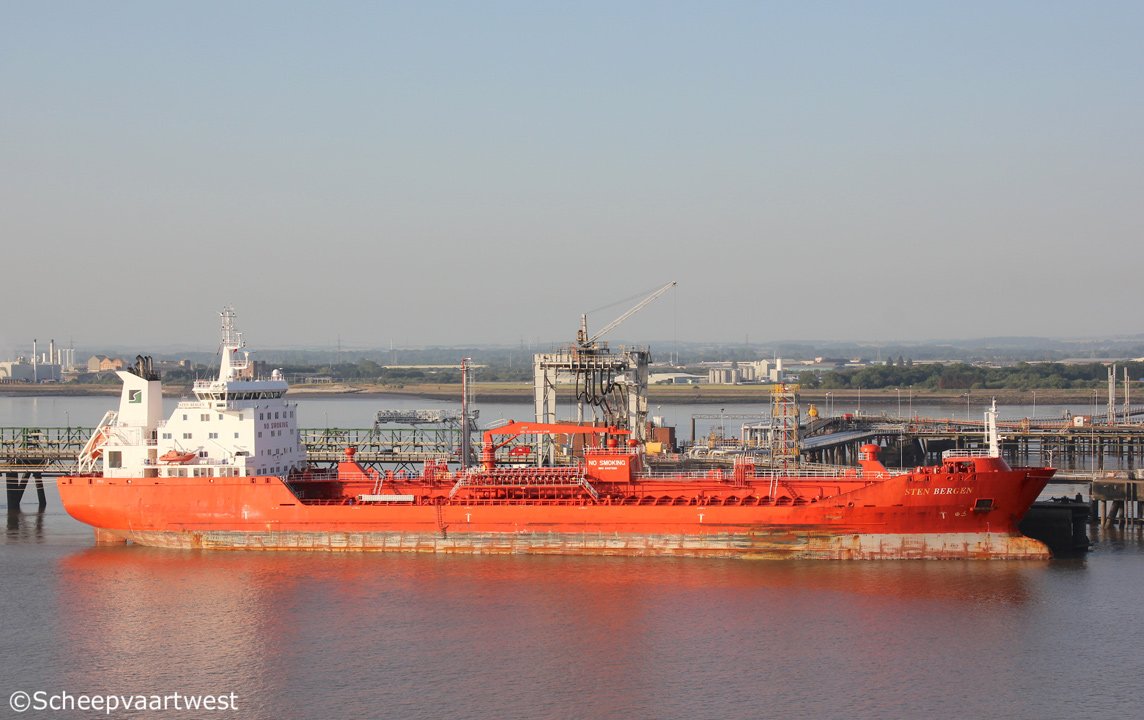

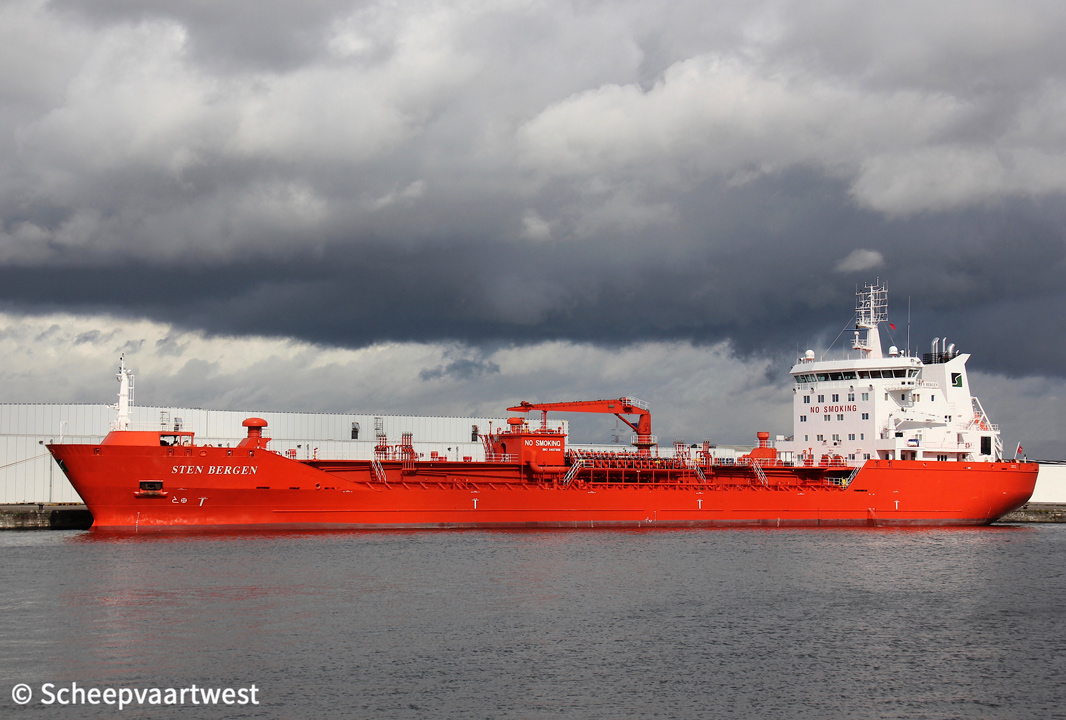

| Immingham UK 08/07/18 | Immingham UK 08/07/18 | Antwerpen 28/06/16 | Antwerpen 28/06/16 | Westerschelde 06/09/16 | ||||
|
Name |
STEN BERGEN |
|
Type |
Tanker for oil and chemicals SK5054 Class |
|
IMO-number |
9407988 |
|
Call sign |
LAOY8 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
Previous flags |
Gibraltar - Call sign: ZDIY8 |
|
GT |
11.935 t |
|
DWT |
Summer: 16.655 t |
|
NT |
5.141 t |
|
Light ship |
5.923 t |
|
Length |
144,05 m overall 134,55 m between perpendiculars |
|
Breadth |
23,18 m extreme 23,00 m moulded |
|
Draught |
8,91 m |
|
Keel to top of mast |
44,31 m |
|
Freeboard |
3.511 mm |
|
Depth |
12,40 m |
|
Speed |
14,0 knots |
|
Built |
2009 |
|
Keel laid |
10/12/2007 |
|
Launch date |
16/05/2008 |
|
Date of completion |
07/04/2009 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. Linhai China |
|
Yard number |
2401 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 8 Longitudinal: 1 |
|
Main engine |
1x Wärtsilä 6L46C - 4 stroke 6 cylinder combustion engine 6.300 kW / 8.565 bhp at 500 rpm Builder: Wärtsilä Norway AS |
|
Propellers |
1x Wärtsilä controllable pitch propeller - 4 blades |
|
Boilers |
1x Auxiliary boiler, oil/gas fired AQ-9 1x Auxiliary boiler, composite AQ-16 Builder: Aalborg Industries A/S |
|
Shaft generator |
1x AVK - 1.500 kW |
|
Generators |
1x Wärtsilä 6L20 main diesel generatorset 2x Wärtsilä 4L20 main diesel generatorsets Total: 2.380 kW at 900 rpm Builder: Wärtsilä Finland Oy |
|
Bow thruster |
1x 750 kW |
|
Number of tanks |
12 |
|
Tank capacity 98% |
18.491 m³ |
|
Number of slop tanks |
3 |
|
Slop tanks capacity 98% |
861 m³ |
|
Total tank capacity 98% |
19.172 m³ |
|
Number of segregations |
8 |
|
Cargo pumps |
12x Framo centrifugal pumps 300 m³/h 3x Framo centrifugal pumps 150 m³/h 1x Framo centrifugal pumps 75 m³/h Pumping capacity: 2.100 m³/h |
|
Manifolds |
Bow to centre of manifold: 71,80 m |
|
Ballast capacity |
8.180 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Lifting equipment |
1x Hose crane - SWL 5,0 t |
|
Manager |
Rederiet Stenersen A/S Edvard Griegs Vei 1 5059 Bergen Norway |
|
Owner |
Stentank AS Edvard Griegs Vei 1 5059 Bergen Norway |
|
Latest data adjustment |
16 May 2024 |
