Westerschelde 12/03/2019 |
 |
 |
 |
 |
|||

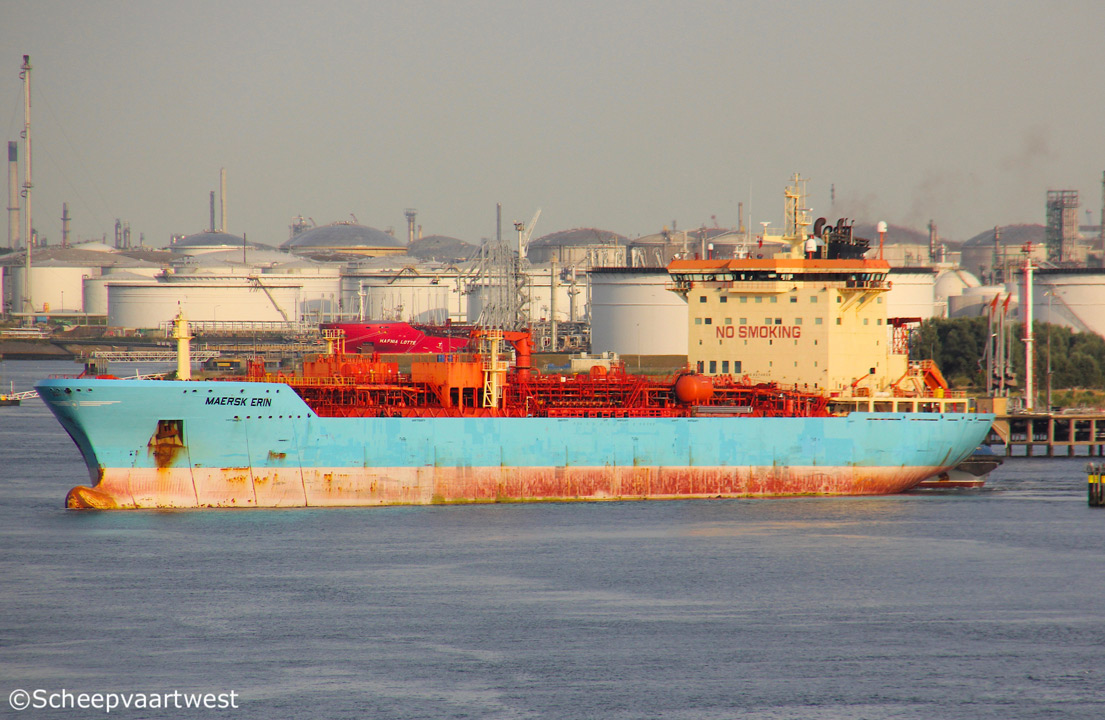

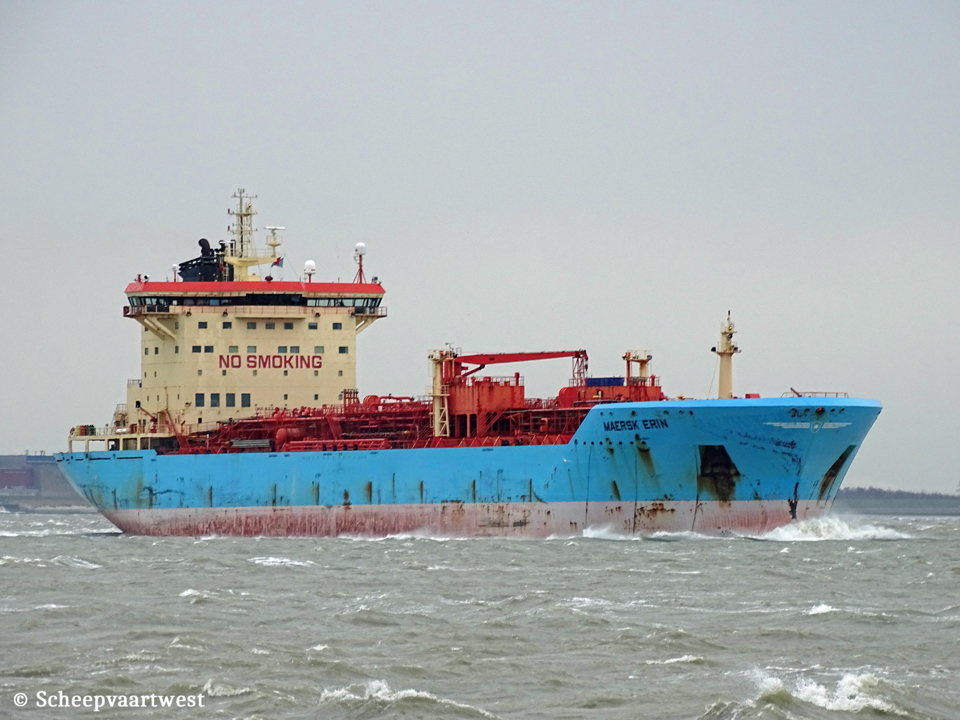

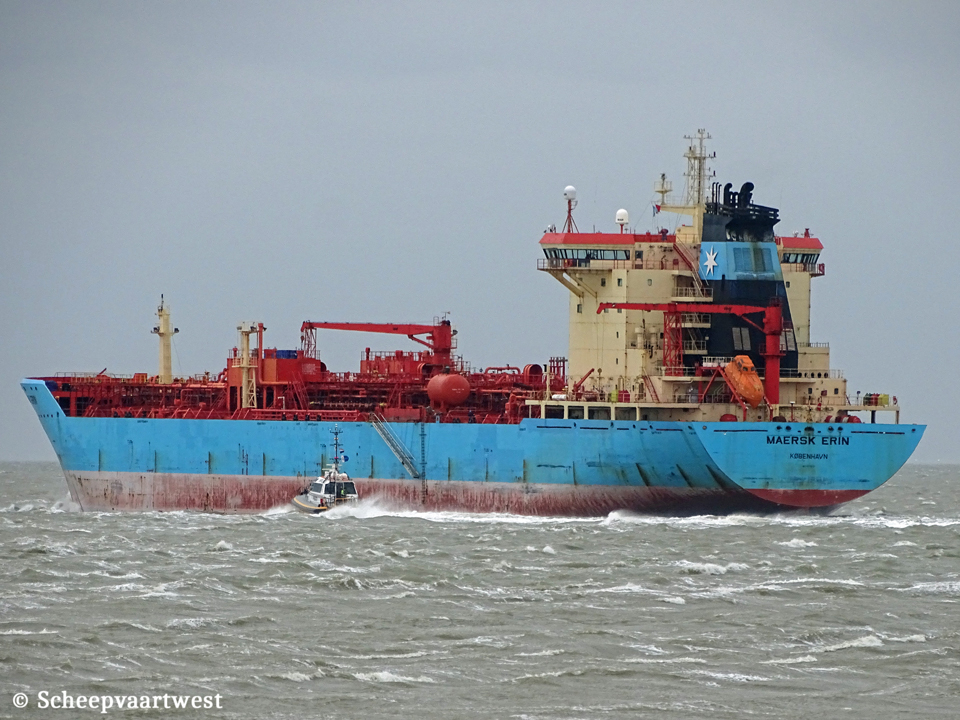

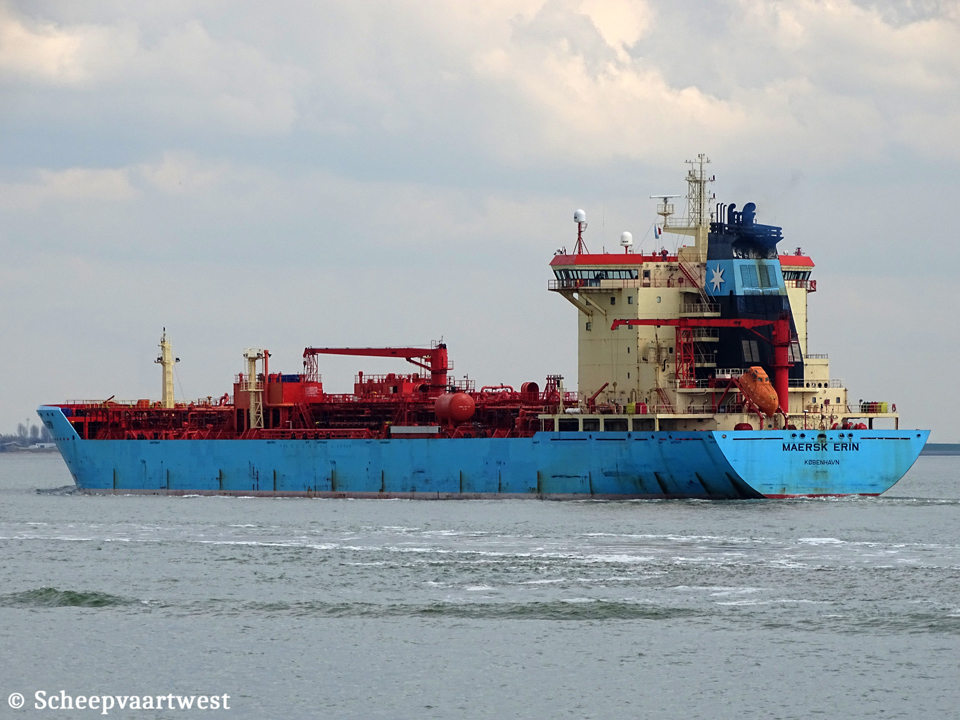

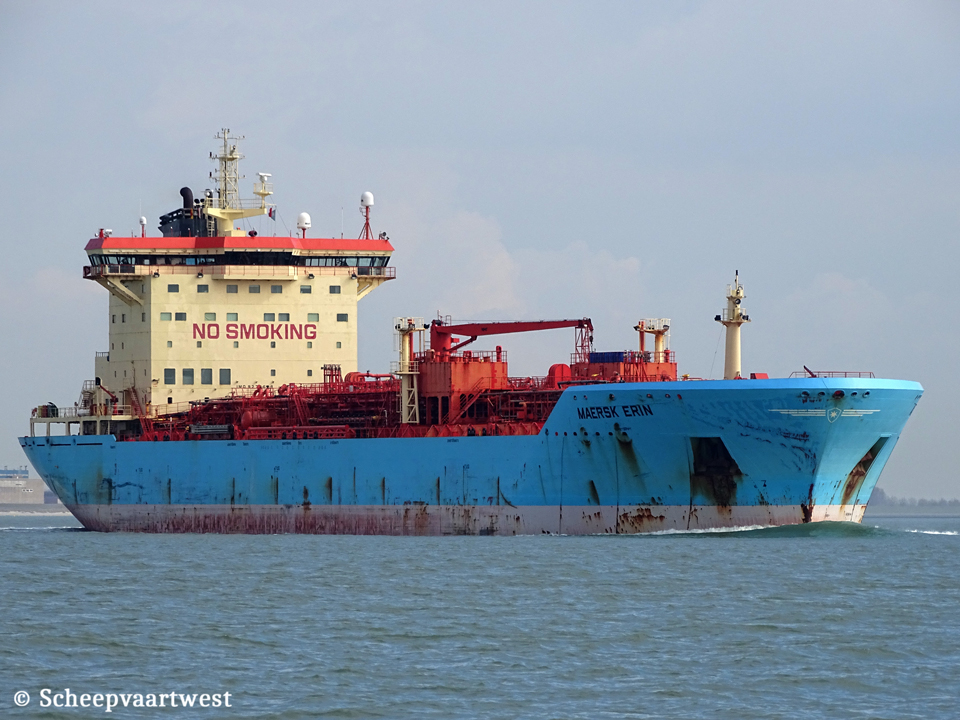

| Westerschelde 12/03/19 | Westerschelde 19/03/19 | Europoort (NL) 07/07/18 | Westerschelde 04/04/19 | |||
|
Name |
MAERSK ERIN |
|
Previous names |
2004 - 12/2007 Huntestern 2007 - 09/2010 Bro Erin |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9274628 |
|
Call sign |
OUWG2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
GT |
26.634 t |
|
DWT |
Summer: 37.188 t |
|
NT |
10.215 t |
|
Length |
185,60 m overall 178,40 m registered |
|
Breadth |
31,00 m m registered |
|
Draught |
10,60 m |
|
Forecastle |
12,00 m |
|
Freeboard |
5.815 mm |
|
Depth |
16,40 m moulded |
|
Speed |
15,0 knots |
|
Built |
2004 |
|
Keel laid |
28/01/2003 |
|
Launch date |
30/06/2003 |
|
Date of completion |
09/06/2004 |
|
Builder |
China Chang Jiang National Shipping Group Corporation Jinling Shipyard 55, Yanjiang Road Nanjing, Jiangsu People's Republic of China |
|
Yard number |
JLZO20501 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull |
|
Main engine |
1x HHM/MAN-B&W 6S50MC - 2 stroke 6 cylinder 500 x 1.910 mm combustion engine 8.580 kW at 127,0 mm Year of manufacture: 2003 Manufacturer: Hudong Heavy Machinery Co., Ltd. 2851, Pudong Dadao 200129 Shanghai People's Republic of China |
|
Propellers |
1x Controllable pitch propeller - aft at 127,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 41,0 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 391,0 m² 1x Steam boiler, oil fired - 10,0 bar Heating surface: 217,0 m² Year of manufacture: 2003 Manufacturer: Alfa Laval Qingdao Ltd. 86 Guangzhou Road North Jiaozhou Qingdao, Shandong People's Republic of China |
|
Electric installations |
3x Plants each 450/230 V - 1.237,5 kVA 1x Plant 450 V - 1.375 kVA 1x Plant 450 V - 287,5 kVA |
|
Shaft generator |
1x 1.375 kVA |
|
Generators |
3x Main diesel generatorsets each 1.237,5 kVA |
|
Emergency generator |
1x Diesel generatorset 287,5 kVA |
|
Compressed air receivers |
2x Receivers each 3.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 2.000 litres - 10,0 bar 1x Receiver 500 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 1.000 kW, forward |
|
Anchor equipment |
3x Anchors weight each 8.700 kg Chain length: 632,50 m |
|
Crew size |
28 |
|
Manager |
A.P. Moller - Maersk A/S Esplanaden 50 1098 Copenhagen K Denmark |
|
Operator |
Maersk Tankers A/S |
|
Registered owner |
Maersk Tankers A/S Esplanaden 50 1263 Copenhagen Denmark |
|
Renamed |
2019 Asena Turkey, Istanbul - Call sign: TCA5668 Manager: Tankmarine Gemi Isletmeciligi Ticaret Limited Sirketi Owner: Seyir Petrol Tasimaciligi AS |
|
Latest data adjustment |
05 August 2021 |
