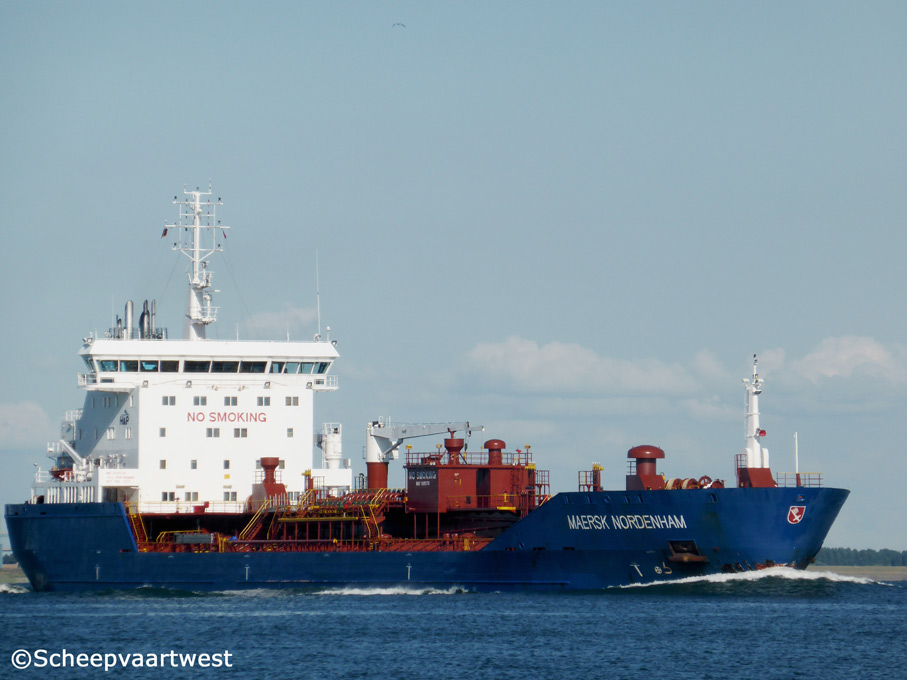

Maersk Nordenham 01

Westerschelde 30 June 2014

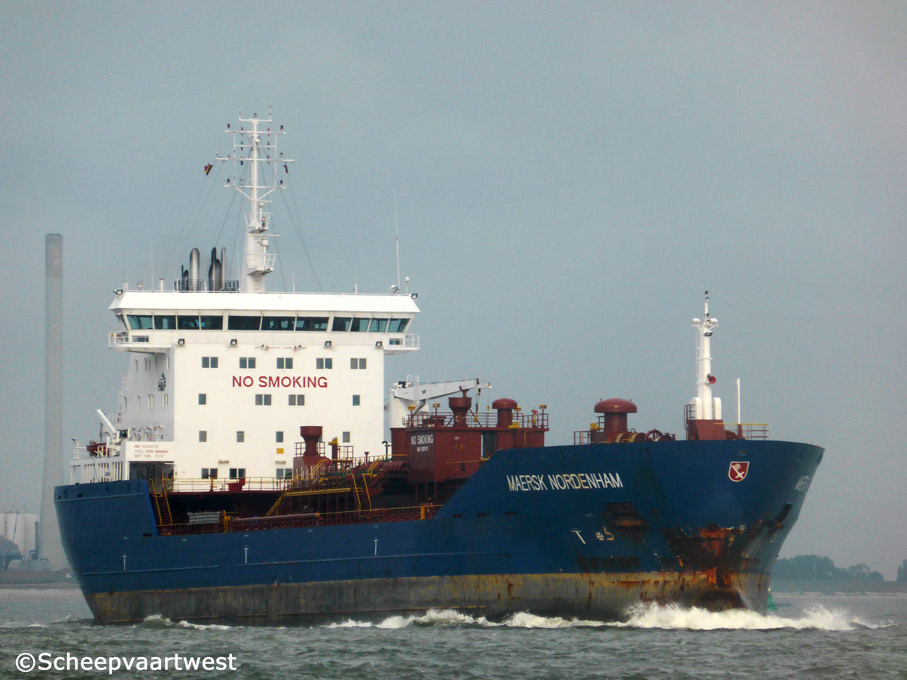

Maersk Nordenham 02
Westerschelde 12/07/14


Name

MAERSK NORDENHAM

Previous names

2004 Launch as: Patrona

Type

Tanker for chemicals & oil products

IMO-number

9305178

Call sign

9HNA9

Flag

Malta

Port of registry

Valletta

Previous flag

2004 - 2008 Cyprus

GT

11.935 t

DWT

Summer: 16.716 t

NT

5.137 t

Length

144,16 m overall

133,80 m between perpendiculars

Breadth

23,34 m extreme

23,00 m moulded

Draught

Max.: 8,90 m

Freeboard

3.511 mm

Depth

12,40 m

Speed

Max.: 14,0 knots

Built

2004

Keel laid

29.09.2003

Launch date

22.02.2004

Date of completion

25.11.2004

Builder

Jiangnan Shipyard (Group) Co., Ltd.

Yard number

H2309

Hull material

Steel

Main engine

1x MAN 6L48/60B diesel engine 6.300 kW

Builder: MAN Diesel & Turbo SE

Propellers

1x Controllable pitch propeller VBS 1460

Builder: MAN B&W Diesel A/S, Alpha Diesel

Boilers

Auxiliary boiler, composite Mission OC

Auxiliary boiler, oil/gas fired Mission OM

Builder: Aalborg Industries A/S

Shaft generator

1x 1.875 kVA

Generators

3x Wärtsilä W4L20 diesel generatorsets total 2.800 kVA

Builder: Wärtsilä Finland Oy

Emergency generator

1x Susu 634 DSBG diesel generatorset 125 kVA

Builder: Wärtsilä Finland Oy

Bow thruster

1x 750 kW

Number of tanks

12

Total tank capacity

18.868,70 m³

Pumps

Unloading capacity per tank: 300 m³/h

Total unloading capacity: 2.100 m³/h

Bunker capacity

IFO tanks: 580,30 m³

MGO tanks: 74,80 m³

Ballast capacity

8.180 m³

Anchor equipment

Length: 577,50 m

Diameter: 58 mm

Manager

Harren & Partner Ship Management GmbH & Co. KG
Hermann-Hollerith-Straße 10
28355 Bremen
Germany

Registered owner

Harren & Partner Schiffahrts GmbH & Co. KG MS "PATRONA"

Previous owners

2004 - 2005 HARPA Shipping & Chartering GmbH & Co. KG

Renamed

12.2014 Patrona I - Malta, Valletta - Call sign: 9HNA9

Latest data adjustment

27 July 2014
