Westerschelde 17 May 2014 |
|
Name |

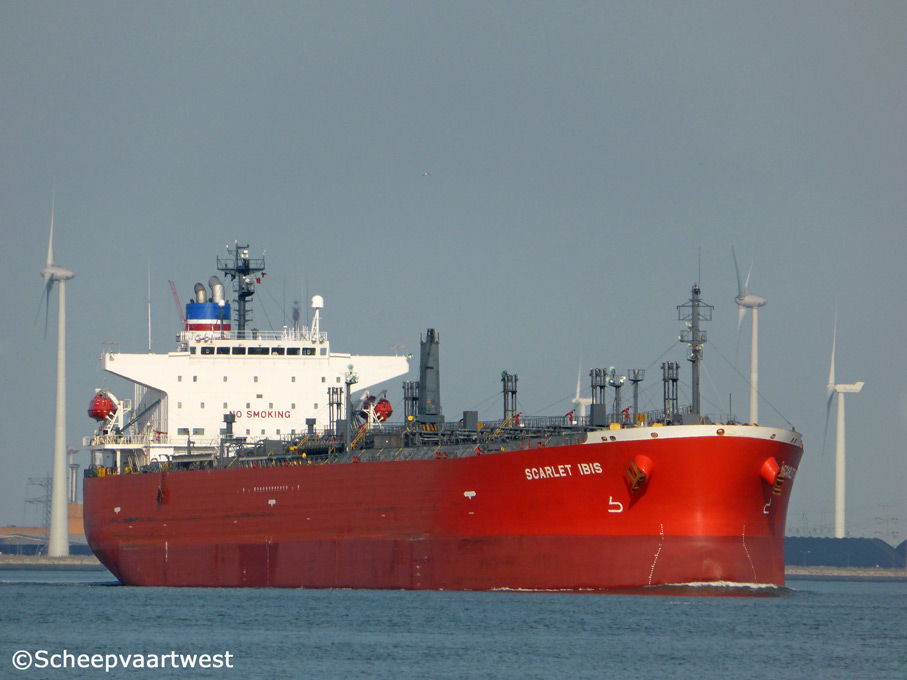

SCARLET IBIS |
|
Type |
Chemical & Oil product tankers |
|
IMO-number |
9273832 |
|
Call sign |
HPWV |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
30.411 t registered |
|
DWT |
Summer: 46.719 t |
|
NT |
11.876 t registered |
|
Length |
185,93 m overall |
|
Breadth |
32,00 m |
|
Draught |
Summer: 11,86 m |
|
Moulded L x B x D |
179,00 x 32,20 x 19,05 m |
|
Registered L x B x D |
179,97 x 32,20 x 19,05 m |
|
Freeboard |
Summer: 8.214 mm |
|
Depth |
19,05 m moulded |
|
Speed |
17,1 Knots |
|
Built |
2004 |
|
Keel laid |
08.05.2003 |
|
Launch date |
12.07.2003 |
|
Date of completion |
23.01.2004 |
|
Builder |
Iwagi Shipbuilding Cop., Ltd. Kamijima |
|
Yard number |
223 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x 2 stroke single acting 7 cylinder 500 x 2;000 mm diesel engine - 11.060 kW at 127,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 600 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 16,64 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generators - 2.800 kVA |
|
Tank capacities |
Fuel oil: 2.995 m³ Fresh water: 945 m³ Water ballast: 20.715 m³ |
|
Manager |
NYK Shipmanagement Pte Ltd. |
|
Registered owner |
Luci Shipholding S.A. |
|
Latest data adjustment |
05 June 2014 |
