Westerschelde 01 July 2017 |
 |
 |
|
| Westerschelde 25/09/13 | Westerschelde 25/09/13 | |
|
Name |

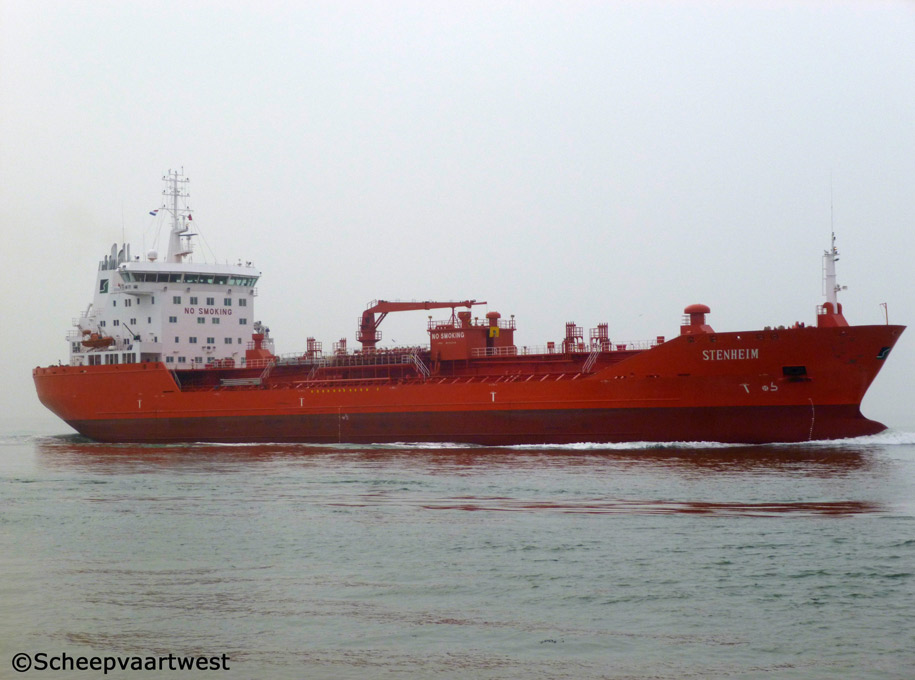

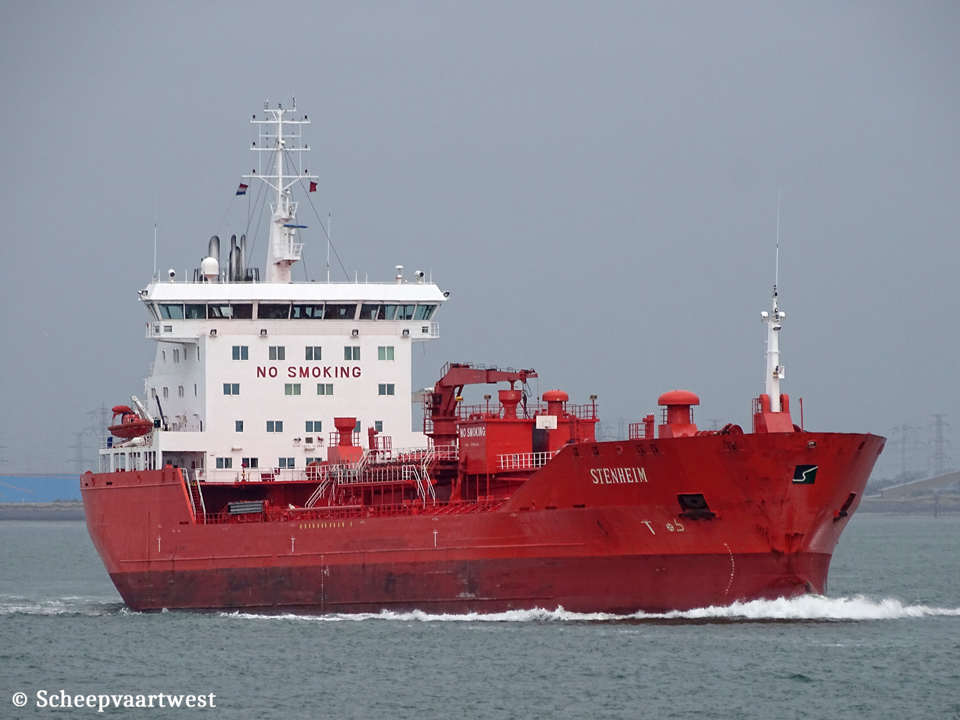

STENHEIM |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9261114 |
|
Call sign |
ZDFR8 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
11.935 t |
|
DWT |
Summer: 16.614 t |
|
NT |
5.138 t |
|
Light displacement |
5.966 t |
|
Length |
144,05 m overall 133,80 m between perpendiculars |
|
Breadth |
23,15 m extreme |
|
Draught |
8,90 m |
|
Keel to top mast |
44,60 m |
|
Depth |
12,40 m moulded |
|
Speed |
Service: 14,0 knots |
|
Built |
2003 |
|
Keel laid |
28/05/2002 |
|
Date of completion |
30/05/2003 |
|
Builder |
Jiangnan Shipyard Group Co. Shanghai China |
|
Yard number |
H2286 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 8 Longitudinal: 1 |
|
Main engine |
1x Wärtsilä 6L46C - 4 stroke 6 cylinder 460 x 500 mm combustion engine 6.300 kW / 8.565 hp at 500 rpm |
|
Propellers |
1x Controllable pitch propeller - 4 blades Builder: Wärtsilä Propulsion Norway AS |
|
Boilers |
Auxiliary boiler, composite AQ-16 Auxiliary boiler, oil/gas fired AQ-9 Builder: Aalborg Industries A/S |
|
Shaft generator |
1x AVK 1.500 kW |
|
Generators |
1x Wärtsilä 6L20 generatorset at 875 kW at 900 rpm 2x Wärtsilä 4L20 generatorsets each 584 kW at 900 rpm |
|
Emergency generator |
1x Sisu 634 diesel generatorset 190 kW |
|
Bow thruster |
1x Brunvoll 800 kW |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
Liquid: 18.491,36 m³ |
|
Slop tank capacity 98% |
681 m³ |
|
Total cargo capacity 98% |
19.172 m³ |
|
Number of segregation |
9 |
|
Cargo pumps |
12x Framo centrifugal pumps each 300 m³/h 2x Framo centrifugal pumps each 150 m³/h 1x Framo centrifugal pump - 100 m³/h 1x Pump centrifugal 70 m³/h |
|
Pumping capacity |
2.100 m³/h |
|
Tank coating |
Epoxy, Sigma Phenguard |
|
Heating capacity |
70°C |
|
Manifolds |
Bow to centre of manifold: 71,80 m |
|
Ballast capacity |
8.180 m³ |
|
Anchor equipment |
Length: 300,30 m Diameter: 58 mm |
|
Lifting equipment |
1x Hose crane - SWL 5,0 t |
|
Commercial manager |
Stenersen Chartering AS Vollsveien 2A 1366 Lysaker Norway |
|
ISM manager |
Stenersen AS Solheimsgaten 13 5058 Bergen Norway |
|
Registered owner |
Stenoil KS Care of Stenersen Chartering AS Vollsveien 2A 1366 Lysaker Norway |
|
Latest data adjustment |
27 August 2024 |
