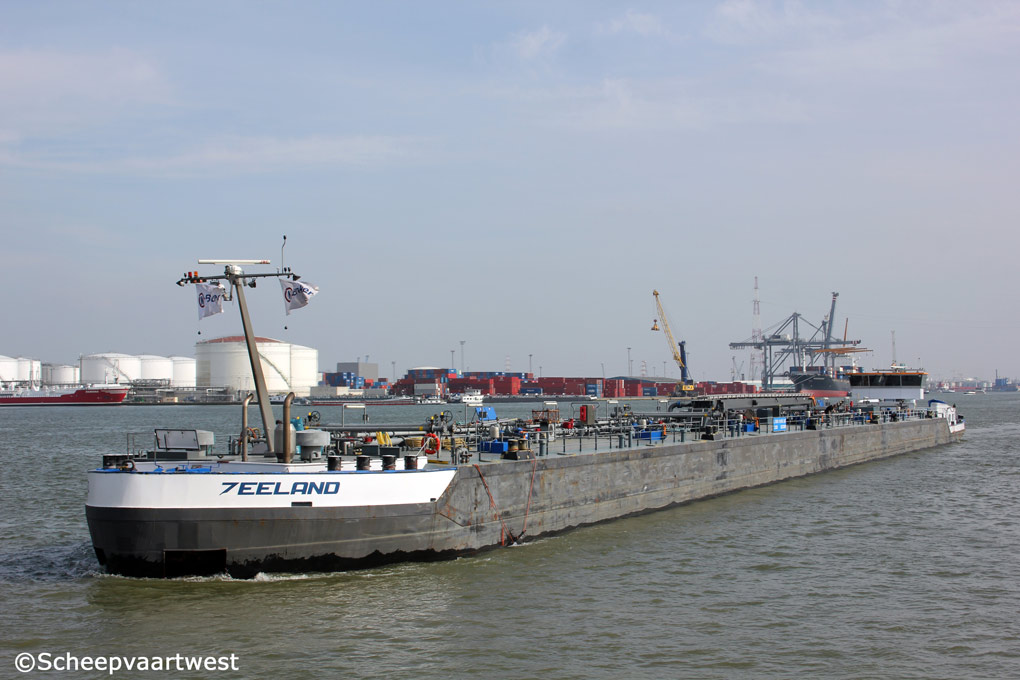

Zeeland 01
Antwerpen 29 March 2014



Name

ZEELAND

Type

Inland tanker

ENI-number

02332990

Call sign

PB5697

Flag

The Netherlands

Port of registry

Dordrecht

Tonnage

3.925 t

Length

135,00 m

Breadth

11,45 m

Draught

3,67 m

Depth

5,30 m

Built

2010

Builder casco

Turkey

Builder completion

De Groot Motoren Dordrecht
Dordrecht
The Netherlands

Hull material

Steel

Main engine

2x Cummins QSK38-M diesel engines 882 kW / 1.200 hp at 1.800 rpm

Gearbox

2x Masson Marine type MM W5200 - reduction: 5,458:1

Propellers

2x 5 blades propeller diameter 1.700 mm with van de Giessen nozzle diameter 1.714 mm

Generators

1x Cummins QSK19 M diesel engine coupled with Marathon 573 RSL 4034 generator 660 kVA

1x Cummins QSB6.7 C diesel engine coupled with Marathon 431 PSL 6204 generator 160 kVA

1x Cummins QSB5 G3 diesel engine coupled with Marathon 363 CSL 1607 generators 93 kVA

Bow thruster

Cummins 600 hp - Ballegooy

Number of tanks

12

Cargo tank capacity

4.500 m³

Number of pumps

6x Bornemann type EPS200 cargo pumps each 200 m³/h driven by electro motors 86 kW

1x Bornemann type EPS10 slob pump 10 m³/h driven by electro motor 7,5 kW

Loading rate

1.080 m³/h

Discharge rate

1.200 m²/h

Lifting equipment

1x Car crane - 2.000 kg - Outreach 18,00 m

Bunker boom

1x 28,00 m with 10 inch pipe

Owner

Zeeland CV
Dordrecht
The Netherlands

Latest data adjustment

12 may 2014
