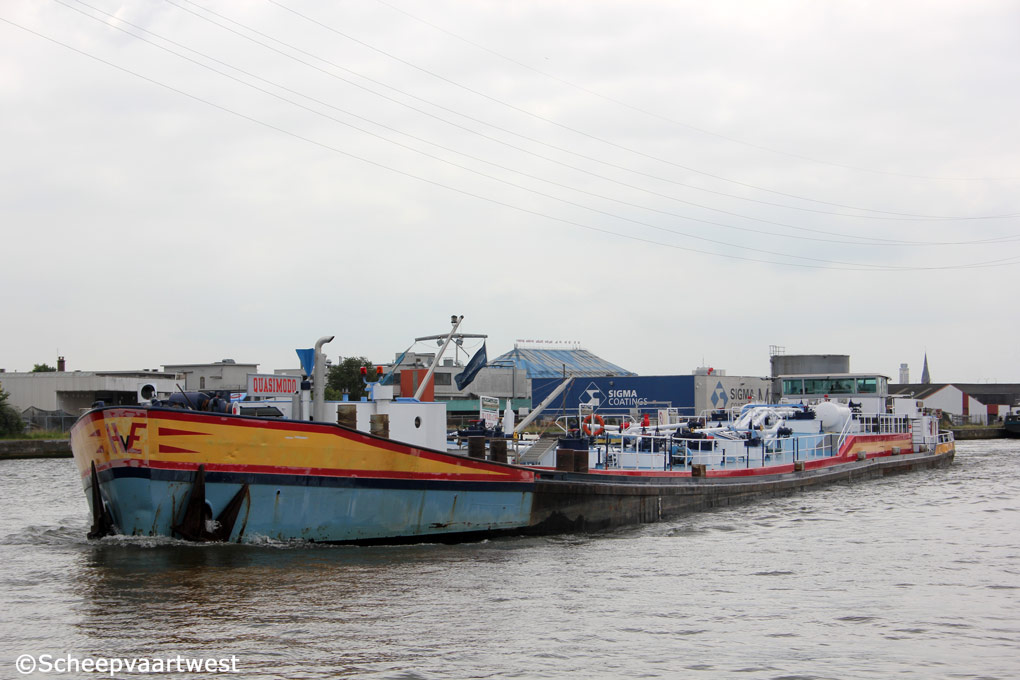

Quasimodo 01

Deurne, Belgium 10 July 2013

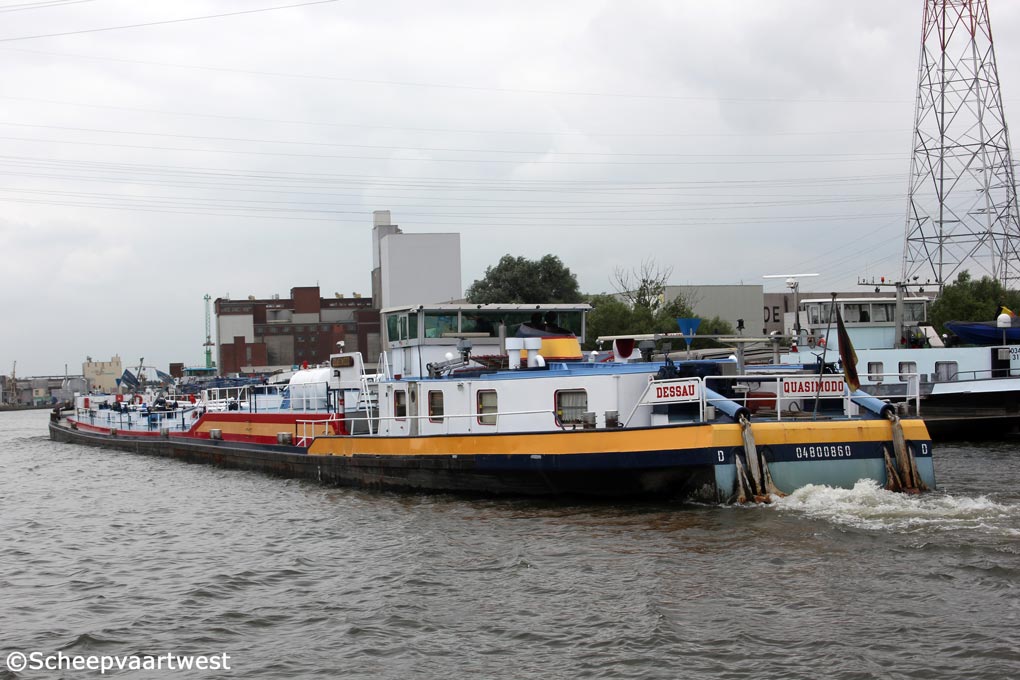

Quasimodo 02
Deurne, Belgium 10/07/13


Name

QUASIMODO

Previous names

1956 Esso Karlsruhe - EU-number: 4000330

1994 Johannes - EU-number: 2321378

1995 Leros

Type

Inland tanker

ENI-number

04800860

Call sign

DC7624

Flag

Germany

Port of registry

Dessau

Tonnage

2.296 t

Length

109,90 m

Breadth

11,03 m

Draught

2,78 m

Depth

2,80 m moulded

Built

1956

Ship lengthened: 07.1988

Launch date

05.1956

Date of completion

07.1956

Builder

Gutehoffnungshütte Sterkrade AG Rheinwerft Walsum
Duisburg
Federal Republic of Germany

Yard number

943

Hull material

Single hull

Watertight bulkheads

12

Continuous decks

1

Main engine

1x Caterpillar 3508 - 4 stroke 8 cylinder 170 x 190 mm diesel engine - 596 kW at 1.600 rpm

Year of manufacture: 1993

Manufacturer: Caterpillar Tractor Co.
Peoria , Illinois 61629
United States of America

1x Deutz RBV 6M545 - 4 stroke 6 cylinder 320 x 450 mm diesel enine - 611 kW at 380 rpm

Year of manufacture: 1956

Manufacturer: Klöckner-Humboldt-Deutz AG
51057 Köln
Federal Republic of Germany

Propellers

2x Solid propeller - aft

Electric installations

1x Plant 380/220 V - 28 kVA

1x Plant 380/220 V - 30 kVA

Generators

1x Main generator - 30 kVA

1x Main generator - 28 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

Number of tanks

14

Tank capacity

3.032 m³

Manager

Gert-Jan van Sierenberg de Boer

Richard Löchel-Strasse 8

47441 Moers

Germany

Owner

Hendrikus G. van Eldijk
Eller Breite 20
06847 Dessau-Roslau
Federal Republic of Germany

Previous names & owners

1956 Esso Karlsruhe - Esso Tankschiffahrt Reedrei GmbH, Hamburg - Germany

1994 Johannes - Vof. Keenenburg, Hendrik Ido Ambacht - The Netherlands

1995 Leros - Duotrans GmbH, Munsbach - Germany

0Latest data adjustment

17 April 2014
