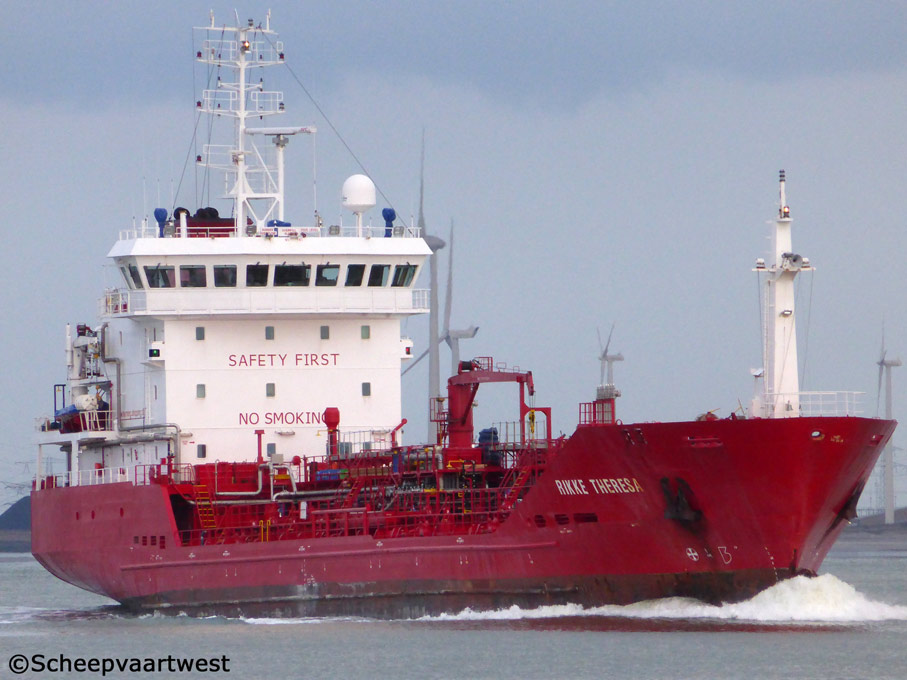

Rikke Theresa 02

Westerschelde 26 March 2014

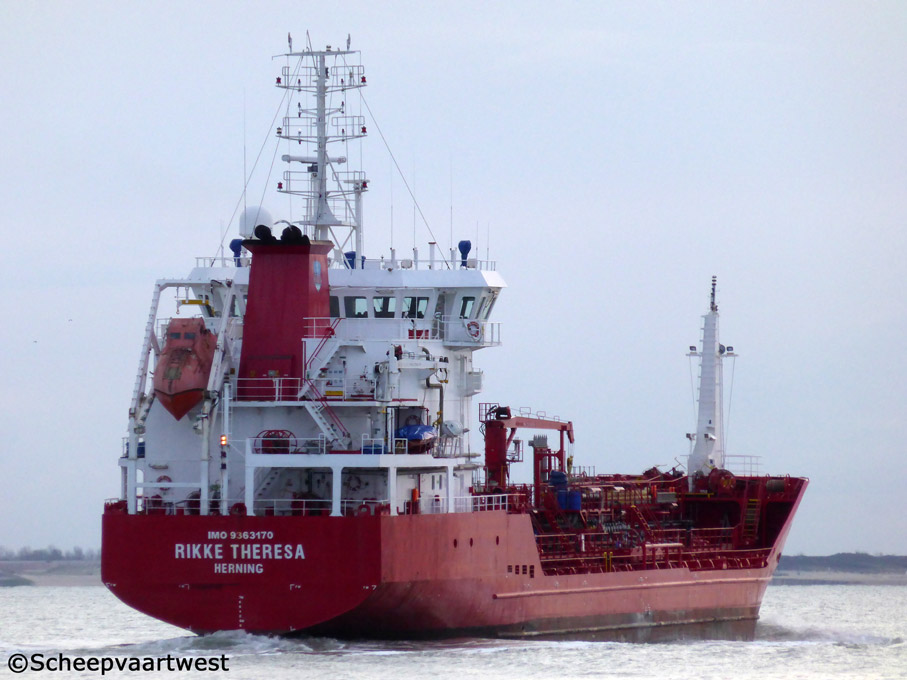

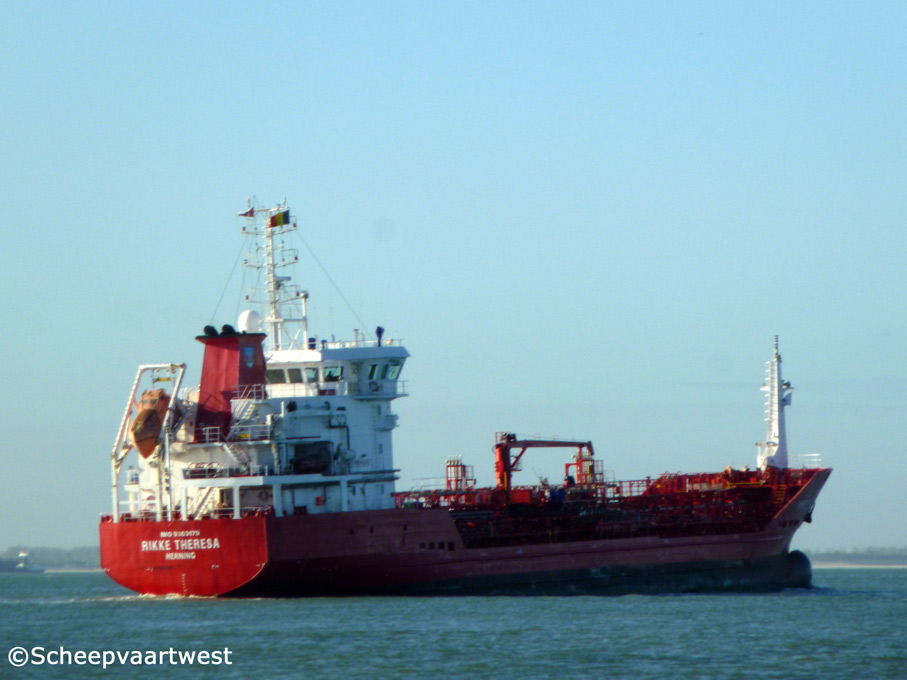

Rikke Theresa 03   Rikke Theresa 01
26/03/14   15/11/13



Name

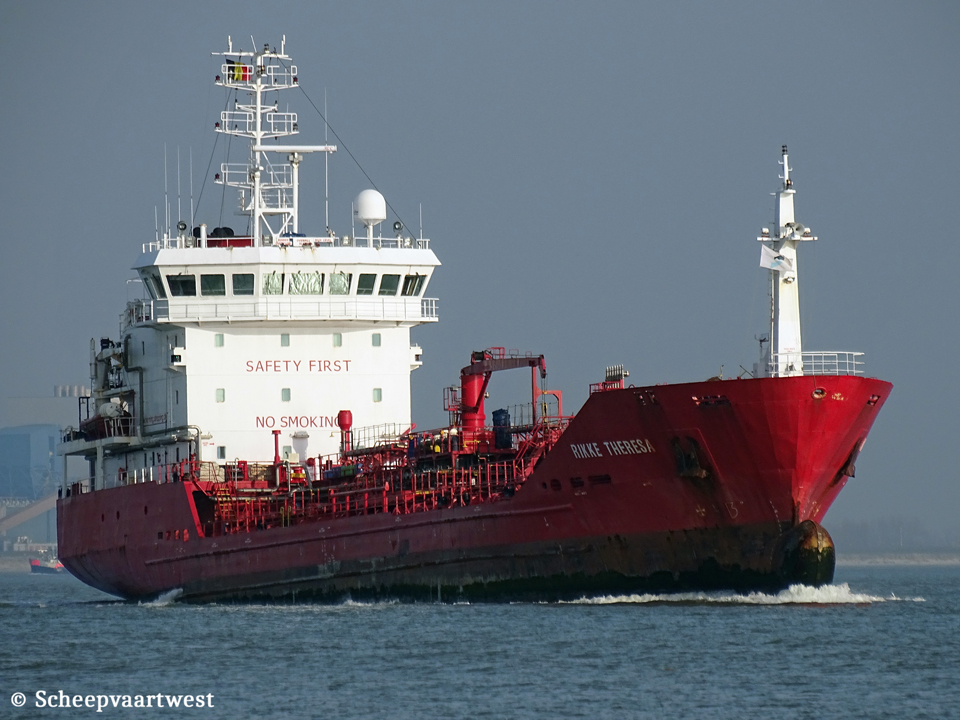

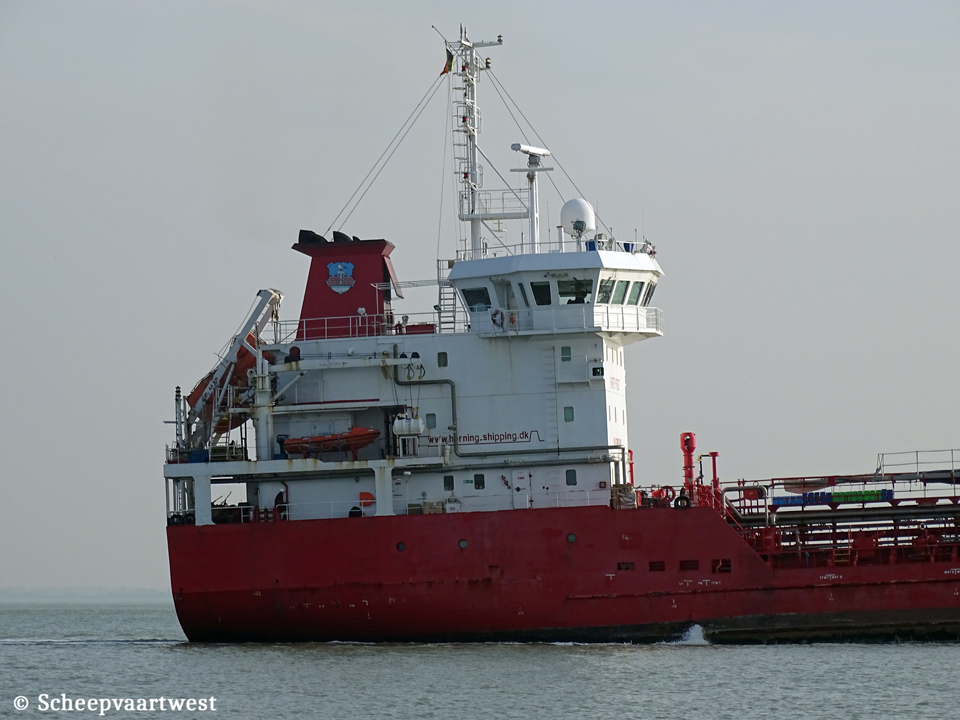

RIKKE THERESA

Type

Oil tanker / Chemical tanker

IMO-number

9363170

Call sign

OVYC2

Flag

Denmark

Port of registry

Herning

GT

2.666 t

DWT

Summer: 3.455,7 t

Winter: 3.326,7 t

NT

1.131 t

Length

92,86 m overall

86,65 m between perpendiculars

Breadth

14,10 m

Draught

Summer: 5,70 m

Speed

13,0 knots

Built

2007

Keel laid

25.08.2005

Launch date

16.05.2006

Date of completion

16.02.2007

Builder

Dearsan Shipyard A.S.

Tuzla
Turkey

Yard number

2035

Hull material

Steel

Hull type

Double sides / Double bottom

Main engine

1x Man B&W Alpha 6L 27/32 - 4 stroke single acting 6 cylinder 270 x 380 mm diesel engine - 2.041 kW / 2.775 hp at 800 rpm

Builder: MAN Diesel A/S – Denmark

Propellers

1x Controllable pitch propeller

Boilers

2x CHO 27,00 m² - 12,0 bar
1x CHR 33,00 m² - 12,0 bar

Generators

3x Man Lindenberg diesel generatorsets each - 431 kVA - 345 kW - 469 hp

Bow thruster

1x 240 kW

Total cap., cargo tanks

4.155,03 m³, Full Marine Line coating

Cargo tank layout

1x Ct + 5 sets of wing tanks, total 11 tanks

Segregation

11x Grades by use of double valves, but lines and pumps in common, 6 grades with separate lines and pumps

Cargo pumps

10x Marflex Deepwell each 150 m³/h

1x Marflex Deepwell 100 m³/h

Loading rate

600 m³/h - maximum / depending on circumstances

Discharging rate

600 m³/h - maximum / depending on circumstances

Heating capacity

Maximum loading/maintaining temp. 80°C. with outside temperature 0°C
Maximum loading temperature 80°C

Stainless steel coils, medium Steam

Manifolds

Manifold to deck: 2,10 m

Manifold to stern: 51,00 m

Manifold to bow: 42,00 m

Manifold to rail: 2,60 m

Tank capacities

HFO: 175 t

DO: 33 t

Cargo gear

1x Crane

SWL 2,0 t at 7,00 m

SWL 3,0 t at 12,00 m

Manager

Herning Shipping A/S
Theresavej 1
DK-7400 Herning
Denmark

Owner

Herning Shipping SA

Herning
Denmark

Latest data adjustment

12 April 2014
